本章给大家介绍如何使用css3与js实现动态时钟效果，有一定的参考价值，有需要的朋友可以参考一下，希望对你有所帮助。
先看看效果图：
首先,思考了一下页面的布局,大致需要4层div,最底层是一个表盘的背景图,然后其余3层分别是时针,分针,秒针的图层.
html代码如下：
变量名是随便起的,不要介意; class=center的这个div是表中心那个小黑点.
立即学习“前端免费学习笔记（深入）”；
时针是60*60*60s转一圈, 分针是60*60s转一圈, 秒针是60s转一圈, 所以css代码如下：
.dial{ width:600px; height:600px; margin:0 auto; position: absolute; border-radius: 50%; overflow: hidden; background-color: rgba(153,50,204,0.2); background-image: url(img/表盘.jpg); background-size: 100% 100%;}.bigdiv{ width:600px; height:600px; margin:0 auto; position: absolute; border-radius: 50%; overflow: hidden;}.bigdiv>div{ position: absolute; left:298px; border-radius: 100px;}.bigdiv1{ animation: moves 60s steps(60) infinite;}.bigdiv1 .secondHand{ width:4px; height:250px; background-color: red; top:50px; left:298px;}.bigdiv2{ animation: moves 3600s steps(3600) infinite;}.bigdiv2 .minuteHand{ width:6px; height:180px; background-color: green; top:120px; left:297px;}.bigdiv3{ animation: moves 216000s steps(216000) infinite;}.bigdiv3 .hourHand{ width:8px; height:160px; background-color: orange; top:140px; left:296px; border-radius: 100px;}.bigdiv .center{ top:290px; left:290px; width:20px; height:20px; background-color: black; z-index: 2;}@keyframes moves{ from{ transform: rotateZ(0deg); } to{ transform: rotateZ(360deg); }}

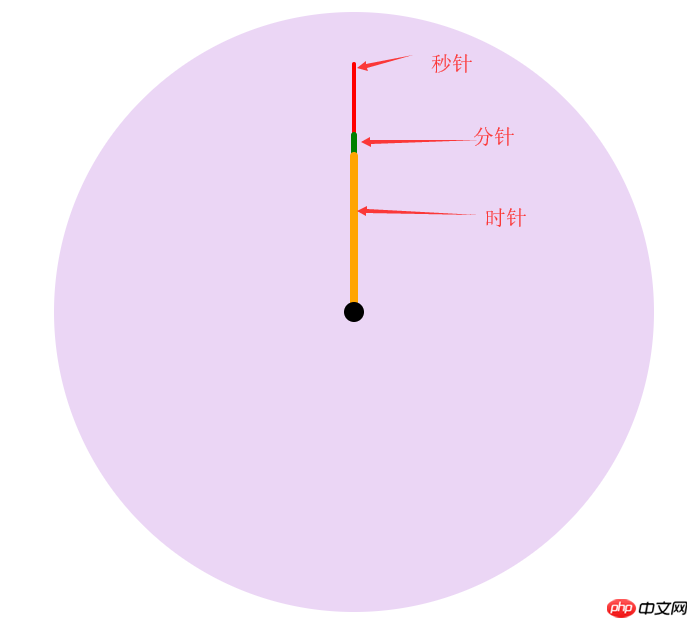

这一步做完后效果图是这个样子的:
然后用js计算当前时间,
var date = new Date();var hours = date.getHours();var minutes = date.getMinutes();var seconds = date.getSeconds();
然后计算当前每个针的旋转角度
var secondAngle = seconds;var minuteAngle = minutes * 60 + seconds;var hourAngle = (60/12) * ((hours%12) * 3600 + minuteAngle);
现在的思路就是:每个针会按照自己定的时间转一圈,初始角度也能知道,怎么组成一个显示当前时间的动态钟表呢?
刚开始的想法是让这3层div旋转对应的角度,然后再开始,后来一想不行,因为它还是固定的时间旋转一周,指针指向会有偏差,
现在需要的是页面进来的第一圈旋转固定角度,其余的按照原来固定的时间旋转一周就行了,
css3里面有一个animation-delay属性,它表示的意思是动画延迟,负数就表示提前开始(比如-5s就表示动画从第5s的时间开始),
刚好可以用到,让这几个指针提前开始对应的角度.
js代码如下：
hourHand.style.cssText = "animation-delay: -"+ hourAngle +"s";minuteHand.style.cssText = "animation-delay: -"+ minuteAngle +"s";secondHand.style.cssText = "animation-delay: -"+ secondAngle +"s";

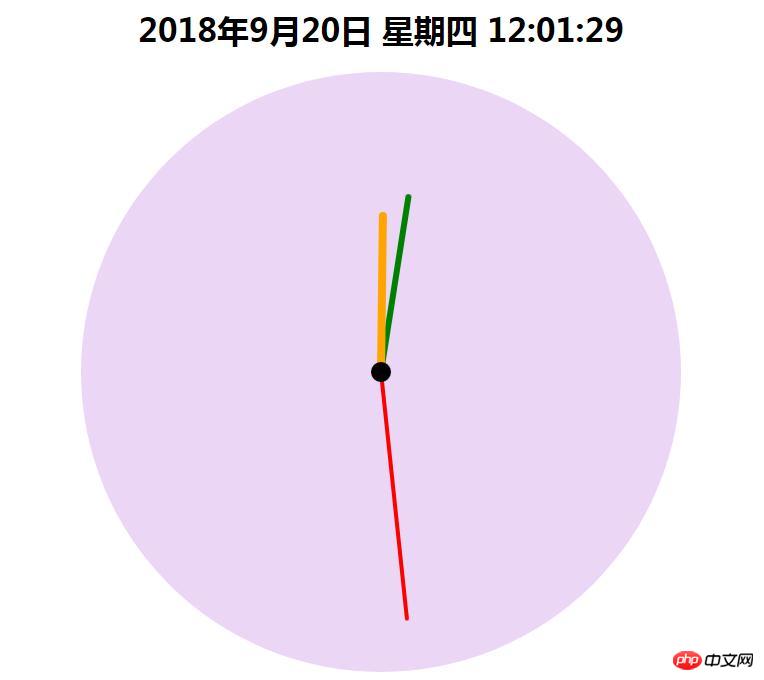

最后自己再加了个动态时间在钟表的上面展示
完整代码：
body,html {margin: 0;}.location {position: relative;width: 600px;height: 600px;left: calc(50% - 300px);}.dial {width: 600px;height: 600px;margin: 0 auto;position: absolute;border-radius: 50%;overflow: hidden;background-color: rgba(153, 50, 204, 0.2);background-image: url(img/表盘.jpg);background-size: 100% 100%;}.bigdiv {width: 600px;height: 600px;margin: 0 auto;position: absolute;border-radius: 50%;overflow: hidden;}.bigdiv>div {position: absolute;left: 298px;border-radius: 100px;}.bigdiv1 {animation: moves 60s steps(60) infinite;}.bigdiv1 .secondHand {width: 4px;height: 250px;background-color: red;top: 50px;left: 298px;}.bigdiv2 {animation: moves 3600s steps(3600) infinite;}.bigdiv2 .minuteHand {width: 6px;height: 180px;background-color: green;top: 120px;left: 297px;}.bigdiv3 {animation: moves 216000s steps(216000) infinite;}.bigdiv3 .hourHand {width: 8px;height: 160px;background-color: orange;top: 140px;left: 296px;border-radius: 100px;}.bigdiv .center {top: 290px;left: 290px;width: 20px;height: 20px;background-color: black;z-index: 2;}@keyframes moves {from {transform: rotateZ(0deg);}to {transform: rotateZ(360deg);}}#dateshow {text-align: center;} var dateshow = document.getElementById("dateshow");var clock = {weeks: ["一", "二", "三", "四", "五", "六", "日"],getDate: function() {date = new Date();year = date.getFullYear();month = date.getMonth() + 1;day = date.getDate();hours = date.getHours();minutes = date.getMinutes();seconds = date.getSeconds();week = date.getDay(); // 星期dateText = year + "年" + month + "月" + clock.format(day) + "日 星期" + clock.formatnum(week) + " " +clock.format(hours) + ":" + clock.format(minutes) + ":" + clock.format(seconds);return dateText;},format: function(data) {if(data.toString().length == 1) {data = "0" + data;};return data;},formatnum: function(num) {return clock.weeks[num - 1];},showdate: function() {dateshow.innerText = clock.getDate();},go: function() {var secondHand = document.getElementById("secondHand");var minuteHand = document.getElementById("minuteHand");var hourHand = document.getElementById("hourHand");date = new Date();hours = date.getHours();minutes = date.getMinutes();seconds = date.getSeconds();var secondAngle = seconds;var minuteAngle = minutes * 60 + seconds;var hourAngle = (60 / 12) * ((hours % 12) * 3600 + minuteAngle);hourHand.style.cssText = "animation-delay: -" + hourAngle + "s";minuteHand.style.cssText = "animation-delay: -" + minuteAngle + "s";secondHand.style.cssText = "animation-delay: -" + secondAngle + "s";}}clock.go();clock.showdate();setInterval("clock.showdate()", 1000);
以上就是css3+js绘制动态时钟（附代码）的详细内容，更多请关注创想鸟其它相关文章！
