本篇文章给大家带来的内容是关于css中grid属性的用法介绍（代码），有一定的参考价值，有需要的朋友可以参考一下，希望对你有所帮助。
grid布局
加在父元素上的属性
grid-template-columns/grid-template-rows
定义元素的行或列的宽高
立即学习“前端免费学习笔记（深入）”；
如果父元素被等分成了9等分，则，不管有多少个子元素，都显示9等分
grid-template-columns: 33% 33% 33%;可以写成grid-template-columns:repeat(3, 33%);
.container { width: 200px; height: 200px; display: grid; background-color: coral; margin: 10px;}.container .item { border: 1px solid #ccc; background-color: chocolate;}.container1 { grid-template-columns: 33% 33% 33%; grid-template-rows: 33% 33% 33%;}
grid-template-areas
父元素的grid-template-areas配合子元素的grid-area定义网格区域
一个句点表示一个空的网格单元
.container { width: 200px; height: 200px; display: grid; background-color: coral; margin: 10px;}.container .item { border: 1px solid #ccc; background-color: chocolate;}.container2 { grid-template-columns: 1fr 1fr 1fr 1fr; grid-template-rows: 1fr 1fr 1fr; grid-template-areas: "header header . footer" "main main . sidebar" "main main . sidebar";}.container2 .item-1 { grid-area: header;}.container2 .item-2 { grid-area: main;}.container2 .item-3 { grid-area: sidebar;}.container2 .item-4 { grid-area: footer;}
headermainsidebarfooter
grid-column-gap/grid-row-gap/grip-gap
指网格线的大小，也可以说是网格子项之间的间距
.container { width: 200px; height: 200px; display: grid; background-color: coral; margin: 10px;}.container .item { border: 1px solid #ccc; background-color: chocolate;}.container3 { grid-template-columns: repeat(3, 30%); grid-template-rows: repeat(3, 30%); grid-column-gap: 2%; grid-row-gap: 2%;}

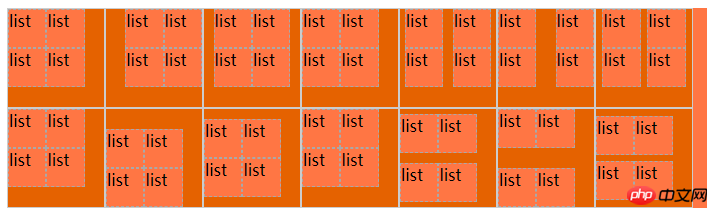

justify-items/align-items
justify-items让子元素的内容和纵向列轴对齐
align-items让子元素的内容和横向行轴对齐
两个属性都有四个值
我的例子中，为了方便对比，嵌套了grid网格
.container { width: 200px; height: 200px; display: grid; background-color: coral; margin: 10px;}.container .item { border: 1px solid #ccc; background-color: chocolate;}.container4 { width: 400px; height: 200px; grid-template-columns: repeat(4, 25%); grid-template-rows: repeat(2, 50%);}.container4 .item { display: grid;}.container4 .item p { background-color: coral; border: 1px dashed #aaa}.container4 .item-1 { grid-template-columns: repeat(2, 50%); grid-template-rows: repeat(2, 50%); justify-items: start;}.container4 .item-2 { grid-template-columns: repeat(2, 50%); grid-template-rows: repeat(2, 50%); justify-items: end;}.container4 .item-3 { grid-template-columns: repeat(2, 50%); grid-template-rows: repeat(2, 50%); justify-items: center;}.container4 .item-4 { grid-template-columns: repeat(2, 50%); grid-template-rows: repeat(2, 50%); justify-items: stretch;}.container4 .item-5 { grid-template-columns: repeat(2, 50%); grid-template-rows: repeat(2, 50%); align-items: start;}.container4 .item-6 { grid-template-columns: repeat(2, 50%); grid-template-rows: repeat(2, 50%); align-items: end;}.container4 .item-7 { grid-template-columns: repeat(2, 50%); grid-template-rows: repeat(2, 50%); align-items: center;}.container4 .item-8 { grid-template-columns: repeat(2, 50%); grid-template-rows: repeat(2, 50%); align-items: stretch;}
listlistlistlistlistlistlistlistlistlistlistlistlistlistlistlistlistlistlistlistlistlistlistlistlistlistlistlistlistlistlistlist

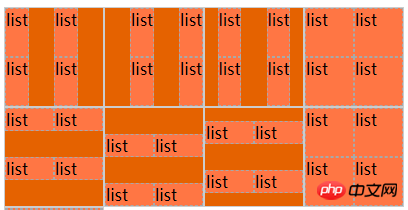

justify-content/align-content
设置子元素的对齐方式，justify表示纵向，align表示横向
.container { width: 200px; height: 200px; display: grid; background-color: coral; margin: 10px;}.container .item { border: 1px solid #ccc; background-color: chocolate;}.container5 { width: 700px; height: 200px; grid-template-columns: repeat(7, 14%); grid-template-rows: repeat(2, 50%);}.container5 .item { display: grid;}.container5 .item p { background-color: coral; border: 1px dashed #aaa}.container5 .item-1 { grid-template-columns: repeat(2, 40%); grid-template-rows: repeat(2, 40%); justify-content: start;}.container5 .item-2 { grid-template-columns: repeat(2, 40%); grid-template-rows: repeat(2, 40%); justify-content: end;}.container5 .item-3 { grid-template-columns: repeat(2, 40%); grid-template-rows: repeat(2, 40%); justify-content: center;}.container5 .item-4 { grid-template-columns: repeat(2, 40%); grid-template-rows: repeat(2, 40%); justify-content: stretch;}.container5 .item-5 { grid-template-columns: repeat(2, 40%); grid-template-rows: repeat(2, 40%); justify-content: space-around;}.container5 .item-6 { grid-template-columns: repeat(2, 40%); grid-template-rows: repeat(2, 40%); justify-content: space-between;}.container5 .item-7 { grid-template-columns: repeat(2, 40%); grid-template-rows: repeat(2, 40%); justify-content: space-evenly;}.container5 .item-8 { grid-template-columns: repeat(2, 40%); grid-template-rows: repeat(2, 40%); align-content: start;}.container5 .item-9 { grid-template-columns: repeat(2, 40%); grid-template-rows: repeat(2, 40%); align-content: end;}.container5 .item-10 { grid-template-columns: repeat(2, 40%); grid-template-rows: repeat(2, 40%); align-content: center;}.container5 .item-11 { grid-template-columns: repeat(2, 40%); grid-template-rows: repeat(2, 40%); align-content: stretch;}.container5 .item-12 { grid-template-columns: repeat(2, 40%); grid-template-rows: repeat(2, 40%); align-content: space-around;}.container5 .item-13 { grid-template-columns: repeat(2, 40%); grid-template-rows: repeat(2, 40%); align-content: space-between;}.container5 .item-14 { grid-template-columns: repeat(2, 40%); grid-template-rows: repeat(2, 40%); align-content: space-evenly;}listlistlistlistlistlistlistlistlistlistlistlistlistlistlistlistlistlistlistlistlistlistlistlistlistlistlistlistlistlistlistlistlistlistlistlistlistlistlistlistlistlistlistlistlistlistlistlistlistlistlistlistlistlistlistlist
grid-auto-columns/grid-auto-rows
grid-column后面的值如果是1 / 2形式，表示的是从第1列网格线开始到第2列网格线结束，如果这个属性定义的网格超出了父元素的范围，则会自动生成隐式网格
grid-auto-columns和grid-auto-rows两个属性来指定这些隐式网格轨迹的宽度
.container { width: 200px; height: 200px; display: grid; background-color: coral; margin: 10px;}.container .item { border: 1px solid #ccc; background-color: chocolate;}.container6 { width: 120px; height: 180px; grid-template-columns: 60px 60px; grid-template-rows: 90px 90px; grid-auto-columns: 60px;}.container6 .item-1 { grid-column: 1 / 2; grid-row: 2 / 3; border: 1px solid #ccc;}.container6 .item-2 { grid-column: 5 / 6; grid-row: 2 / 3; border: 1px solid #ccc;}1/2&2/35/6&2/3
grid-auto-flow
没有网格元素的时候，自动排列
row表示从左到右排列，column表示从上到下排列
.container { width: 200px; height: 200px; display: grid; background-color: coral; margin: 10px;}.container .item { border: 1px solid #ccc; background-color: chocolate;}.container7 { display: grid; width: 200px; height: 40px; grid-template-columns: 40px 40px 40px 40px 40px; grid-template-rows: 40px 40px; /* grid-auto-flow: row; */ grid-auto-flow: column;}.container7 .item-1 { grid-column: 1; grid-row: 1 / 3;}.container7 .item-5 { grid-column: 5; grid-row: 1 / 3;}12345
加在子元素上的属性
grid-column-start/grid-column-end/grid-row-start/grid-row-end/grid-column/grid-row
定义网格开始或者结束的位置
值为数字，表示从这条线开始。值为span加数字，表示覆盖了这条线的位置
.container { width: 200px; height: 200px; display: grid; background-color: coral; margin: 10px;}.container .item { border: 1px solid #ccc; background-color: chocolate;}.container8 { margin-top: 20px; grid-template-columns: repeat(5, 20%); grid-template-rows: repeat(5, 20%);}.container8 .item-1 { grid-column-start: 2; grid-column-end: 4; grid-row-start: 1; grid-row-end: 2;}.container8 .item-2 { grid-column-start: 4; grid-column-end: span 5; grid-row-start: 2; grid-row-end: span 5;}.container8 .item-3 { grid-column: 1 / span 2; grid-row: 2 / span 4;}item-1item-2item-3
justify-self/align-self
网格子项内容与格线对齐
.container { width: 200px; height: 200px; display: grid; background-color: coral; margin: 10px;}.container .item { border: 1px solid #ccc; background-color: chocolate;}.container9 { width: 400px; height: 200px; grid-template-columns: repeat(4, 25%); grid-template-rows: repeat(2, 50%);}.container9 .item-1 { justify-self: start;}.container9 .item-2 { justify-self: end;}.container9 .item-3 { justify-self: center;}.container9 .item-4 { justify-self: stretch;}.container9 .item-5 { align-self: start;}.container9 .item-6 { align-self: end;}.container9 .item-7 { align-self: center;}.container9 .item-8 { align-self: stretch;}item-1item-2item-3item-4item-5item-6item-7item-8
以上就是css中grid属性的用法介绍（代码）的详细内容，更多请关注创想鸟其它相关文章！
