MarTech Challenge 点击反欺诈预测比赛思路及实现

1 背景介绍

广告欺诈是数字营销需要面临的重要挑战之一，点击会欺诈浪费广告主大量金钱，同时对点击数据会产生误导作用。本次比赛提供了约50万次点击数据。特别注意：我们对数据进行了模拟生成，对某些特征含义进行了隐藏，并进行了脱敏处理。 请预测用户的点击行为是否为正常点击，还是作弊行为。点击欺诈预测适用于各种信息流广告投放，banner广告投放，以及百度网盟平台，帮助商家鉴别点击欺诈，锁定精准真实用户。

比赛传送门

本思路将从数据分析、数据探索&特征工程、建模三个方面进行介绍：

2 赛题剖析

特征工程：对重要特征进行甄别和处理；利用原有特征构建新特征。数量特征建模：由业务场景可知，点击反欺诈预测中一个重要的特征是点击的数量，点击作弊往往会出现重复点击的情况，所以在原特征基础上构建相应的数量特征是本次建模的一个重点。

3 总体思路（经典机器学习+百度深度学习模型）

*在6月份使用XGBoost对赛题有过提交，当时成绩是89.1413。6月份项目链接 为了进一步优化模型，同时也为了得到主办方的认可，特加入了PALM语言模型 *本方案对XGBoost和PALM语言模型进行融合 *参考6月份方案，前期为XGBoost做了很多特征工程；由于深度学习对特征工程的要求不大，故只对PALM模型需要的数据进行了缺失值补充

4 具体方案分享

读取数据

In [ ]

import pandas as pdtrain = pd.read_csv('data/data97586/train.csv')test1 = pd.read_csv('data/data97586/test1.csv')train

        Unnamed: 0  android_id  apptype  carrier  dev_height  dev_ppi                  0      316361     1199  46000.0         0.0      0.0   1                1      135939      893      0.0         0.0      0.0   2                2      399254      821      0.0       760.0      0.0   3                3       68983     1004  46000.0      2214.0      0.0   4                4      288999     1076  46000.0      2280.0      0.0   ...            ...         ...      ...      ...         ...      ...   499995      499995      392477     1028  46000.0      1920.0      3.0   499996      499996      346134     1001      0.0      1424.0      0.0   499997      499997      499635      761  46000.0      1280.0      0.0   499998      499998      239786      917  46001.0       960.0      0.0   499999      499999      270531      929  46000.0      2040.0      3.0           dev_width  label    lan  media_id  ...       os    osv package               0.0      1    NaN       104  ...  android      9      18   1             0.0      1    NaN        19  ...  android    8.1       0   2           360.0      1    NaN       559  ...  android  8.1.0       0   3          1080.0      0    NaN       129  ...  android  8.1.0       0   4          1080.0      1  zh-CN        64  ...  android  8.0.0       0   ...           ...    ...    ...       ...  ...      ...    ...     ...   499995     1080.0      1  zh-CN       144  ...  Android  7.1.2      25   499996      720.0      0    NaN        29  ...  android  8.1.0       0   499997      720.0      0    NaN        54  ...  android  6.0.1       9   499998      540.0      0  zh_CN       109  ...  android  5.1.1       0   499999     1080.0      1  zh-CN        59  ...  Android  8.1.0      78               sid     timestamp  version    fea_hash location   fea1_hash         1438873  1.559893e+12        8  2135019403        0  2329670524   1       1185582  1.559994e+12        4  2782306428        1  2864801071   2       1555716  1.559837e+12        0  1392806005        2   628911675   3       1093419  1.560042e+12        0  3562553457        3  1283809327   4       1400089  1.559867e+12        5  2364522023        4  1510695983   ...         ...           ...      ...         ...      ...         ...   499995  1546078  1.559834e+12        7   861755946       79   140647032   499996  1480612  1.559814e+12        3  1714444511       23  2745131047   499997  1698442  1.559676e+12        0  3843262581       25  1326115882   499998  1331155  1.559840e+12        0  1984296118      225  1446741112   499999  1373973  1.559922e+12        5  1697301943       49  1915763579           cus_type  0            601  1           1000  2            696  3            753  4            582  ...          ...  499995       373  499996       525  499997       810  499998       772  499999      1076  [500000 rows x 21 columns]

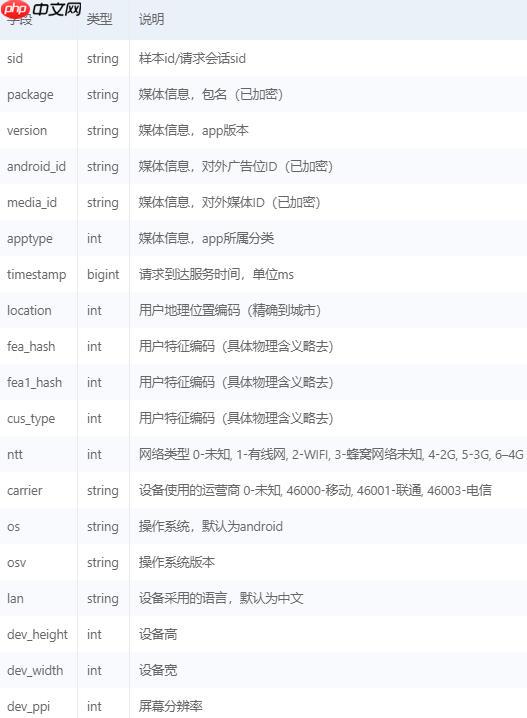

字段说明

label是否作弊，0为正常，1位作弊

初步筛选特征

In [ ]

features = train.drop(['Unnamed: 0','label'],axis = 1)labels = train['label']features.columns

Index(['android_id', 'apptype', 'carrier', 'dev_height', 'dev_ppi',       'dev_width', 'lan', 'media_id', 'ntt', 'os', 'osv', 'package', 'sid',       'timestamp', 'version', 'fea_hash', 'location', 'fea1_hash',       'cus_type'],      dtype='object')

数据探索&特征工程

构造函数，寻找关键特征值

In [ ]

#数据探索，找到导致1的关键特征值def find_key_feature(train, selected):    temp = pd.DataFrame(columns = [0,1])    temp0 = train[train['label'] == 0]    temp1 = train[train['label'] == 1]    temp[0] = temp0[selected].value_counts() / len(temp0) * 100    temp[1] = temp1[selected].value_counts() / len(temp1) * 100    temp[2] = temp[1] / temp[0]    #选出大于10倍的特征    result = temp[temp[2] > 10].sort_values(2, ascending = False).index    return resultkey_feature = {}key_feature['osv'] = find_key_feature(train, 'osv')key_feature

{'osv': Index(['7.7.7', '7.2.1', '7.7.5', '7.8.5', '7.8.7', '3.8.0', '7.6.7', '3.9.0',        '2.3', '8.0.1', '7.9.0', '7.6.4', '3.8.4', '7.8.9', '21100', '7.9.2',        '4.1', '7.7.2', '7.8.2', 'Android_8.0.0', '7.8.0', '3.8.6', '7.7.0',        '7.8.4', '8', '7.6.8', '21000', '7.8.6', '5', '6.1', '7.7.3', '9.0.0',        '3.8.3', '3.7.8', '9.0', '8.0', 'Android_9', '7.7.4', '6.1.0'],       dtype='object')}

通过特征类型及意义，确定需要寻找关键特征值的字段

In [ ]

features.info()

RangeIndex: 500000 entries, 0 to 499999Data columns (total 19 columns): #   Column      Non-Null Count   Dtype  ---  ------      --------------   -----   0   android_id  500000 non-null  int64   1   apptype     500000 non-null  int64   2   carrier     500000 non-null  float64 3   dev_height  500000 non-null  float64 4   dev_ppi     500000 non-null  float64 5   dev_width   500000 non-null  float64 6   lan         316720 non-null  object  7   media_id    500000 non-null  int64   8   ntt         500000 non-null  float64 9   os          500000 non-null  object  10  osv         493439 non-null  object  11  package     500000 non-null  int64   12  sid         500000 non-null  int64   13  timestamp   500000 non-null  float64 14  version     500000 non-null  object  15  fea_hash    500000 non-null  object  16  location    500000 non-null  int64   17  fea1_hash   500000 non-null  int64   18  cus_type    500000 non-null  int64  dtypes: float64(6), int64(8), object(5)memory usage: 72.5+ MB

       In [ ]

features.columns

Index(['android_id', 'apptype', 'carrier', 'dev_height', 'dev_ppi',       'dev_width', 'lan', 'media_id', 'ntt', 'os', 'osv', 'package', 'sid',       'timestamp', 'version', 'fea_hash', 'location', 'fea1_hash',       'cus_type'],      dtype='object')

确定字段，寻找对应字段的关键特征值

In [ ]

selected_cols = ['osv','apptype', 'carrier', 'dev_height', 'dev_ppi',       'dev_width', 'media_id', 'package', 'version', 'fea_hash', 'location', 'fea1_hash',       'cus_type']for selected in selected_cols:    key_feature[selected] = find_key_feature(train, selected)key_feature

{'osv': Index(['7.7.7', '7.2.1', '7.7.5', '7.8.5', '7.8.7', '3.8.0', '7.6.7', '3.9.0',        '2.3', '8.0.1', '7.9.0', '7.6.4', '3.8.4', '7.8.9', '21100', '7.9.2',        '4.1', '7.7.2', '7.8.2', 'Android_8.0.0', '7.8.0', '3.8.6', '7.7.0',        '7.8.4', '8', '7.6.8', '21000', '7.8.6', '5', '6.1', '7.7.3', '9.0.0',        '3.8.3', '3.7.8', '9.0', '8.0', 'Android_9', '7.7.4', '6.1.0'],       dtype='object'), 'apptype': Int64Index([1139, 716, 941, 851, 1034, 1067], dtype='int64'), 'carrier': Float64Index([], dtype='float64'), 'dev_height': Float64Index([2242.0, 1809.0, 1500.0, 2385.0,  918.0, 1546.0,  895.0, 1521.0,                816.0,  830.0, 1540.0, 2219.0,  676.0, 1480.0,  818.0,  694.0,                665.0, 2287.0, 2281.0,  851.0, 1560.0, 2131.0, 2320.0, 2248.0,                846.0,  748.0, 2312.0, 2240.0,  770.0, 2406.0, 2223.0, 2244.0,                749.0,  772.0, 2277.0, 3040.0,  892.0, 1493.0, 2310.0, 2466.0,               1460.0, 1496.0, 1441.0, 2268.0,  747.0, 2960.0,  686.0,  740.0,                771.0,  730.0,  100.0, 2252.0, 2276.0,  869.0, 2250.0, 2246.0,                760.0, 2198.0,  773.0, 2255.0,  780.0,  658.0, 1459.0,   13.0,               2220.0, 1523.0, 1501.0,  721.0, 2907.0,  440.0, 2170.0, 1793.0,               2128.0, 2041.0, 1464.0, 2137.0, 2260.0, 2379.0,  711.0, 1510.0,                 20.0, 1528.0, 1467.0, 2190.0,  685.0],              dtype='float64'), 'dev_ppi': Float64Index([200.0, 230.0, 128.0], dtype='float64'), 'dev_width': Float64Index([1806.0, 1460.0, 1808.0, 2038.0, 1792.0, 2094.0,  353.0, 2406.0,               2190.0, 2244.0, 2060.0, 2128.0, 2252.0, 2255.0,  810.0, 2159.0,               1560.0, 2137.0, 1496.0, 2208.0, 2076.0, 2031.0, 2218.0, 2265.0,                424.0, 1824.0, 2034.0, 2130.0, 2260.0,  393.0, 2960.0, 2220.0,                440.0, 2201.0, 2222.0, 1439.0, 2040.0, 2163.0],              dtype='float64'), 'media_id': Int64Index([ 329,  384,  259,  249,  334,  734,  504,  224,  614,  254,  304,              899,  414,  954,  764,  654,   74, 1524,  449,  344,  324,  119,               24, 1454],            dtype='int64'), 'package': Int64Index([  66,   53,   49,   67,  257,  569,   42,  170,   48,   61,   82,              281,  149,   16, 2282,   69,   64,   21,    3,   92],            dtype='int64'), 'version': Index([], dtype='object'), 'fea_hash': Index(['2328510010', '2815114810', '2503203602', '16777343', '1093932919',        '3306573181', '3673113458', '3419433775', '28776568', '1103969850',        '2448376690', '551568242', '1692943218', '1979803871', '354322549',        '3177694324', '2942813300', '1090611423', '3052290930'],       dtype='object'), 'location': Int64Index([], dtype='int64'), 'fea1_hash': Int64Index([1593057142, 2888196143, 2300993583, 2116509743, 2348162934,             1747410991, 1425481590, 2047788921, 3258042233, 3005505583,             2015649839, 2284216367, 3748667254,  488923183,  301802853,              622213499, 1585537839, 2205433386, 1898209327,  867028591,              833232758, 2787401775,  525584485, 4175168375, 3587989039,              710175527, 3740889281,  883805807,  690879356, 2921750575,              724433788, 3891004279, 1162670379, 2423611183, 3521339183,             3536215343,  446372728, 2259249447,  397893671, 3398507384,             2775476519, 3693371431, 1606274364, 3611003032, 1109987687,             2650303345],            dtype='int64'), 'cus_type': Int64Index([], dtype='int64')}

构造新特征字段

In [ ]

#构造新特征，新特征字段 = 原始特征字段 + 1def f(x, selected):    #判断是否在关键特征里，是1，否0    if x in key_feature[selected]:        return 1    else:        return 0    for selected in selected_cols:    #判断是否有特征比大于10    if len(key_feature[selected]) > 0:        features[selected+'1'] = features[selected].apply(f, args = (selected,))        test1[selected+'1'] = test1[selected].apply(f, args = (selected,))        print(selected+'1 created')

osv1 createdapptype1 createddev_height1 createddev_ppi1 createddev_width2 createdmedia_id1 createdpackage1 createdfea_hash2 createdfea1_hash2 created

查看新特征字段osv1

In [ ]

features['osv1'].value_counts()

0    4446561     55344Name: osv1, dtype: int64

进一步筛选特征

特征os的值为Android，android。意义相同当作唯一值处理，去掉

sid都是唯一值，也不参与建模

In [ ]

remove_list = ['os','sid']col = features.columns.tolist()for i in remove_list:    col.remove(i)col

['android_id', 'apptype', 'carrier', 'dev_height', 'dev_ppi', 'dev_width', 'lan', 'media_id', 'ntt', 'osv', 'package', 'timestamp', 'version', 'fea_hash', 'location', 'fea1_hash', 'cus_type', 'osv1', 'apptype1', 'dev_height1', 'dev_ppi1', 'dev_width2', 'media_id1', 'package1', 'fea_hash2', 'fea1_hash2']

               In [ ]

features = features[col]# features

提取时间多尺度

In [ ]

import timefrom datetime import datetimedef get_date(features):    #先除以1000，再转换为日期格式    features['timestamp'] = features['timestamp'].apply(lambda x: datetime.fromtimestamp(x / 1000))        # 创建时间戳索引    temp = pd.DatetimeIndex(features['timestamp'])    features['year'] = temp.year    features['month'] = temp.month    features['day'] = temp.day    features['week_day'] = temp.weekday    features['hour'] = temp.hour    features['minute'] = temp.minute        #添加time_diff    start_time = features['timestamp'].min()    features['time_diff'] = features['timestamp'] - start_time    #将time_diff转换为小时格式    features['time_diff'] = features['time_diff'].dt.days * 24 + features['time_diff'].dt.seconds / 3600    #只使用day 和time_diff    features.drop(['timestamp','year','month','week_day','hour','minute'], axis = 1, inplace = True)        return features#对训练集提取时间多尺度features = get_date(features)#对测试集提取时间多尺度test1 = get_date(test1)features

        android_id  apptype  carrier  dev_height  dev_ppi  dev_width    lan             316361     1199  46000.0         0.0      0.0        0.0    NaN   1           135939      893      0.0         0.0      0.0        0.0    NaN   2           399254      821      0.0       760.0      0.0      360.0    NaN   3            68983     1004  46000.0      2214.0      0.0     1080.0    NaN   4           288999     1076  46000.0      2280.0      0.0     1080.0  zh-CN   ...            ...      ...      ...         ...      ...        ...    ...   499995      392477     1028  46000.0      1920.0      3.0     1080.0  zh-CN   499996      346134     1001      0.0      1424.0      0.0      720.0    NaN   499997      499635      761  46000.0      1280.0      0.0      720.0    NaN   499998      239786      917  46001.0       960.0      0.0      540.0  zh_CN   499999      270531      929  46000.0      2040.0      3.0     1080.0  zh-CN           media_id  ntt    osv  ...  apptype1 dev_height1 dev_ppi1  dev_width2              104  6.0      9  ...         0           0        0           0   1             19  6.0    8.1  ...         0           0        0           0   2            559  0.0  8.1.0  ...         0           1        0           0   3            129  2.0  8.1.0  ...         0           0        0           0   4             64  2.0  8.0.0  ...         0           0        0           0   ...          ...  ...    ...  ...       ...         ...      ...         ...   499995       144  6.0  7.1.2  ...         0           0        0           0   499996        29  2.0  8.1.0  ...         0           0        0           0   499997        54  6.0  6.0.1  ...         0           0        0           0   499998       109  2.0  5.1.1  ...         0           0        0           0   499999        59  2.0  8.1.0  ...         0           0        0           0           media_id1  package1  fea_hash2  fea1_hash2  day   time_diff  0               0         0          0           0    7  111.535278  1               0         0          0           0    8  139.671944  2               0         0          0           0    6   95.971111  3               0         0          0           0    9  152.993333  4               0         0          0           0    7  104.472222  ...           ...       ...        ...         ...  ...         ...  499995          0         0          0           0    6   95.238056  499996          0         0          0           0    6   89.681111  499997          0         0          0           0    4   51.248889  499998          0         0          0           0    6   96.990556  499999          0         0          0           0    7  119.545833  [500000 rows x 27 columns]

对osv和lan进行LabelEncoder

In [ ]

#对OSV进行LabelEncoderfrom sklearn.preprocessing import LabelEncoderle = LabelEncoder()#需要将训练集和测试集合并，然后统一做LabelEncoderall_df = pd.concat([train, test1])all_df['osv'] = all_df['osv'].astype('str')all_df['osv'] = le.fit_transform(all_df['osv'])#对lan进行LabelEncoderall_df['lan'] = all_df['lan'].astype('str')all_df['lan'] = le.fit_transform(all_df['lan'])

对fea_hash、fea1_hash和version进行特征处理

In [ ]

#特征变换。对于数值过大的异常值 设置为0features['fea_hash'] = features['fea_hash'].map(lambda x: 0 if len(str(x)) > 16 else int(x))features['fea1_hash'] = features['fea1_hash'].map(lambda x: 0 if len(str(x)) > 16 else int(x))#数据清洗。针对version非数值类型 设置0features['version'] = features['version'].map(lambda x: int(x) if str(x).isdigit() else 0)#将osv拆开features['osv'] = all_df[all_df['label'].notnull()]['osv']#将lan拆开features['lan'] = all_df[all_df['label'].notnull()]['lan']#测试集做预测，保持与features中的columns一致即可test_fea = test1[features.columns]#特征变换。对于数值过大的异常值 设置为0test_fea['fea_hash'] = test_fea['fea_hash'].map(lambda x: 0 if len(str(x)) > 16 else int(x))test_fea['fea1_hash'] = test_fea['fea1_hash'].map(lambda x: 0 if len(str(x)) > 16 else int(x))#数据清洗。针对version非数值类型 设置0test_fea['version'] = test_fea['version'].map(lambda x: int(x) if str(x).isdigit() else 0)#将osv拆开test_fea['osv'] = all_df[all_df['label'].isnull()]['osv']#将lan拆开test_fea['lan'] = all_df[all_df['label'].isnull()]['lan']

/usr/local/lib/python3.6/dist-packages/ipykernel_launcher.py:17: SettingWithCopyWarning: A value is trying to be set on a copy of a slice from a DataFrame.Try using .loc[row_indexer,col_indexer] = value insteadSee the caveats in the documentation: https://pandas.pydata.org/pandas-docs/stable/user_guide/indexing.html#returning-a-view-versus-a-copy/usr/local/lib/python3.6/dist-packages/ipykernel_launcher.py:18: SettingWithCopyWarning: A value is trying to be set on a copy of a slice from a DataFrame.Try using .loc[row_indexer,col_indexer] = value insteadSee the caveats in the documentation: https://pandas.pydata.org/pandas-docs/stable/user_guide/indexing.html#returning-a-view-versus-a-copy/usr/local/lib/python3.6/dist-packages/ipykernel_launcher.py:21: SettingWithCopyWarning: A value is trying to be set on a copy of a slice from a DataFrame.Try using .loc[row_indexer,col_indexer] = value insteadSee the caveats in the documentation: https://pandas.pydata.org/pandas-docs/stable/user_guide/indexing.html#returning-a-view-versus-a-copy/usr/local/lib/python3.6/dist-packages/ipykernel_launcher.py:23: SettingWithCopyWarning: A value is trying to be set on a copy of a slice from a DataFrame.Try using .loc[row_indexer,col_indexer] = value insteadSee the caveats in the documentation: https://pandas.pydata.org/pandas-docs/stable/user_guide/indexing.html#returning-a-view-versus-a-copy/usr/local/lib/python3.6/dist-packages/ipykernel_launcher.py:25: SettingWithCopyWarning: A value is trying to be set on a copy of a slice from a DataFrame.Try using .loc[row_indexer,col_indexer] = value insteadSee the caveats in the documentation: https://pandas.pydata.org/pandas-docs/stable/user_guide/indexing.html#returning-a-view-versus-a-copy

XGBoost建模

采用五折交叉验证 ensemble model

In [ ]

from sklearn.model_selection import KFold,StratifiedKFoldfrom sklearn.metrics import accuracy_scoredef ensemble_model(clf, train_x, train_y, test):    #采用五折交叉验证 ensemble model    sk = StratifiedKFold(n_splits = 5, shuffle = True, random_state = 2021)    prob = []#记录最终结果    mean_acc = 0#记录平均准确率        for k, (train_index, val_index) in enumerate(sk.split(train_x, train_y)):        train_x_real = train_x.iloc[train_index]        train_y_real = train_y.iloc[train_index]        val_x = train_x.iloc[val_index]        val_y = train_y.iloc[val_index]        #子模型训练        clf = clf.fit(train_x_real, train_y_real)        val_y_pred = clf.predict(val_x)        #子模型评估        acc_val = accuracy_score(val_y, val_y_pred)        print('第{}个子模型acc{}'.format(k+1, acc_val))        mean_acc += acc_val / 5        #子模型预测        test_y_pred = clf.predict_proba(test)[:, -1]#soft得到概率值        prob.append(test_y_pred)    print(mean_acc)    mean_prob = sum(prob) / 5    return mean_prob

使用XGBoost进行模型训练、预测

In [ ]

import xgboost as xgbclf = xgb.XGBClassifier(            max_depth=12, learning_rate=0.001, n_estimators=20000,             objective='binary:logistic', tree_method='gpu_hist',             subsample=0.8, colsample_bytree=0.7,             min_child_samples=3, eval_metric='auc', reg_lambda=0.5        )result = ensemble_model(clf, features, labels, test_fea)result

/usr/local/lib/python3.6/dist-packages/xgboost/sklearn.py:1146: UserWarning: The use of label encoder in XGBClassifier is deprecated and will be removed in a future release. To remove this warning, do the following: 1) Pass option use_label_encoder=False when constructing XGBClassifier object; and 2) Encode your labels (y) as integers starting with 0, i.e. 0, 1, 2, ..., [num_class - 1].  warnings.warn(label_encoder_deprecation_msg, UserWarning)

[00:40:30] WARNING: ../src/learner.cc:573: Parameters: { "min_child_samples" } might not be used.  This may not be accurate due to some parameters are only used in language bindings but  passed down to XGBoost core.  Or some parameters are not used but slip through this  verification. Please open an issue if you find above cases.第1个子模型acc0.89041

/usr/local/lib/python3.6/dist-packages/xgboost/sklearn.py:1146: UserWarning: The use of label encoder in XGBClassifier is deprecated and will be removed in a future release. To remove this warning, do the following: 1) Pass option use_label_encoder=False when constructing XGBClassifier object; and 2) Encode your labels (y) as integers starting with 0, i.e. 0, 1, 2, ..., [num_class - 1].  warnings.warn(label_encoder_deprecation_msg, UserWarning)

[01:04:11] WARNING: ../src/learner.cc:573: Parameters: { "min_child_samples" } might not be used.  This may not be accurate due to some parameters are only used in language bindings but  passed down to XGBoost core.  Or some parameters are not used but slip through this  verification. Please open an issue if you find above cases.第2个子模型acc0.89114

/usr/local/lib/python3.6/dist-packages/xgboost/sklearn.py:1146: UserWarning: The use of label encoder in XGBClassifier is deprecated and will be removed in a future release. To remove this warning, do the following: 1) Pass option use_label_encoder=False when constructing XGBClassifier object; and 2) Encode your labels (y) as integers starting with 0, i.e. 0, 1, 2, ..., [num_class - 1].  warnings.warn(label_encoder_deprecation_msg, UserWarning)

[01:24:40] WARNING: ../src/learner.cc:573: Parameters: { "min_child_samples" } might not be used.  This may not be accurate due to some parameters are only used in language bindings but  passed down to XGBoost core.  Or some parameters are not used but slip through this  verification. Please open an issue if you find above cases.第3个子模型acc0.89041

/usr/local/lib/python3.6/dist-packages/xgboost/sklearn.py:1146: UserWarning: The use of label encoder in XGBClassifier is deprecated and will be removed in a future release. To remove this warning, do the following: 1) Pass option use_label_encoder=False when constructing XGBClassifier object; and 2) Encode your labels (y) as integers starting with 0, i.e. 0, 1, 2, ..., [num_class - 1].  warnings.warn(label_encoder_deprecation_msg, UserWarning)

[01:44:53] WARNING: ../src/learner.cc:573: Parameters: { "min_child_samples" } might not be used.  This may not be accurate due to some parameters are only used in language bindings but  passed down to XGBoost core.  Or some parameters are not used but slip through this  verification. Please open an issue if you find above cases.第4个子模型acc0.8904

/usr/local/lib/python3.6/dist-packages/xgboost/sklearn.py:1146: UserWarning: The use of label encoder in XGBClassifier is deprecated and will be removed in a future release. To remove this warning, do the following: 1) Pass option use_label_encoder=False when constructing XGBClassifier object; and 2) Encode your labels (y) as integers starting with 0, i.e. 0, 1, 2, ..., [num_class - 1].  warnings.warn(label_encoder_deprecation_msg, UserWarning)

[02:05:07] WARNING: ../src/learner.cc:573: Parameters: { "min_child_samples" } might not be used.  This may not be accurate due to some parameters are only used in language bindings but  passed down to XGBoost core.  Or some parameters are not used but slip through this  verification. Please open an issue if you find above cases.第5个子模型acc0.89090.890652

array([0.10067499, 0.75248444, 0.02351505, ..., 0.9336721 , 0.9753353 ,       0.98109853], dtype=float32)

保存预测结果，方便后续投票

In [ ]

#保存结果a = pd.DataFrame(test1['sid'])a['label'] = result

palm建模

数据预处理

In [1]

import pandas as pdtrain= pd.read_csv('data/data97586/train.csv',encoding='utf-8')test = pd.read_csv('data/data97586/test1.csv',encoding='utf-8')sid = test.sidfeatures = train.drop(['Unnamed: 0','label','os','sid'],axis=1)labels = train['label']test = test[features.columns]

将时间戳转换为小时数并取整

In [2]

from datetime import datetime as dt def get_date(features):    features['timestamp'] = features['timestamp'].apply(lambda x: dt.fromtimestamp(x/1000))    start_time = features['timestamp'].min()    features['time_diff'] = features['timestamp'] - start_time    features['time_diff'] = features['time_diff'].dt.days*24 + features['time_diff'].dt.seconds/3600    features.drop(['timestamp'],axis=1,inplace = True)    return featuresfeatures = get_date(features)test = get_date(test)

   In [3]

#取整features.time_diff = features.time_diff.astype(int)test.time_diff = test.time_diff.astype(int)

缺失值处理

这里使用了mode对osv进行处理，针对lan中的缺失值，由于lan是字符串的形式，直接补充了nan作为特征，这是因为缺失值本身可能也会代表一些信息

In [4]

features.loc[:,"osv"] = features.loc[:,"osv"].fillna(test.loc[:,"osv"].mode()[0]) features.loc[:,"lan"] = features.loc[:,"lan"].fillna('nan')test.loc[:,"osv"] = test.loc[:,"osv"].fillna(test.loc[:,"osv"].mode()[0])test.loc[:,"lan"] = test.loc[:,"lan"].fillna('nan')

特征连接

将特征分为两类，一类是用户信息，一类是媒体信息，将他们的信息分别用空格连接起来变成两个句子，每个特征相当于句子中的一个词语，以用户和媒体信息之间的这种点击关系去做一个类似NLP中的问答任务，用户信息放在了text_a, 媒体信息放在了text_b

In [5]

#连接函数def sentence(row):    return ' '.join([str(row[i]) for i in int_type])def sentence1(row):    return ' '.join([str(row[i]) for i in string_type])

   In [6]

#提取媒体信息和用户信息string_type =['package','apptype','version','android_id','media_id']int_type = []for i in features.columns:    if i not in string_type:        int_type.append(i)

   In [7]

#写入palm的训练和预测数据train_palm = pd.DataFrame()train_palm['label'] = train['label']train_palm['text_a'] = features[int_type].apply(sentence,axis=1)train_palm['text_b'] = features[string_type].apply(sentence1,axis=1)test_palm = pd.DataFrame()test_palm['label'] = test.apptype #label不能为空，可以随便填一个test_palm['text_a'] = test[int_type].apply(sentence,axis=1)test_palm['text_b'] = test[string_type].apply(sentence1,axis=1)

   In [8]

#保存palm所需的数据train_palm.to_csv('data/data97586/train_palm.csv', sep='t', index=False)test_palm.to_csv('data/data97586/test_palm.csv', sep='t', index=False)

PALM模型搭建与训练

In [9]

!pip install paddlepalm

Looking in indexes: https://pypi.tuna.tsinghua.edu.cn/simpleCollecting paddlepalm  Downloading https://pypi.tuna.tsinghua.edu.cn/packages/27/0f/50c6a2700526bb7b9b90e3233368aaedbad164fdb8a112b1719722e148eb/paddlepalm-2.0.2-py2.py3-none-any.whl (104kB)     |████████████████████████████████| 112kB 60.2MB/s eta 0:00:01Requirement already satisfied: paddlepaddle-gpu>=1.7.0 in /opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages (from paddlepalm) (2.1.2.post101)Requirement already satisfied: decorator in /opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages (from paddlepaddle-gpu>=1.7.0->paddlepalm) (4.4.2)Requirement already satisfied: numpy>=1.13; python_version >= "3.5" and platform_system != "Windows" in /opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages (from paddlepaddle-gpu>=1.7.0->paddlepalm) (1.20.3)Requirement already satisfied: astor in /opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages (from paddlepaddle-gpu>=1.7.0->paddlepalm) (0.8.1)Requirement already satisfied: gast=0.3.3; platform_system != "Windows" in /opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages (from paddlepaddle-gpu>=1.7.0->paddlepalm) (0.3.3)Requirement already satisfied: protobuf>=3.1.0 in /opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages (from paddlepaddle-gpu>=1.7.0->paddlepalm) (3.14.0)Requirement already satisfied: Pillow in /opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages (from paddlepaddle-gpu>=1.7.0->paddlepalm) (7.1.2)Requirement already satisfied: six in /opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages (from paddlepaddle-gpu>=1.7.0->paddlepalm) (1.15.0)Requirement already satisfied: requests>=2.20.0 in /opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages (from paddlepaddle-gpu>=1.7.0->paddlepalm) (2.22.0)Requirement already satisfied: certifi>=2017.4.17 in /opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages (from requests>=2.20.0->paddlepaddle-gpu>=1.7.0->paddlepalm) (2019.9.11)Requirement already satisfied: chardet=3.0.2 in /opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages (from requests>=2.20.0->paddlepaddle-gpu>=1.7.0->paddlepalm) (3.0.4)Requirement already satisfied: idna=2.5 in /opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages (from requests>=2.20.0->paddlepaddle-gpu>=1.7.0->paddlepalm) (2.8)Requirement already satisfied: urllib3!=1.25.0,!=1.25.1,=1.21.1 in /opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages (from requests>=2.20.0->paddlepaddle-gpu>=1.7.0->paddlepalm) (1.25.6)Installing collected packages: paddlepalmSuccessfully installed paddlepalm-2.0.2

       In [10]

#查看并下载预训练模型from paddlepalm import downloaderdownloader.ls('pretrain')

Available pretrain items:  => RoBERTa-zh-base  => RoBERTa-zh-large  => ERNIE-v2-en-base  => ERNIE-v2-en-large  => XLNet-cased-base  => XLNet-cased-large  => ERNIE-v1-zh-base  => ERNIE-v1-zh-base-max-len-512  => BERT-en-uncased-large-whole-word-masking  => BERT-en-cased-large-whole-word-masking  => BERT-en-uncased-base  => BERT-en-uncased-large  => BERT-en-cased-base  => BERT-en-cased-large  => BERT-multilingual-uncased-base  => BERT-multilingual-cased-base  => BERT-zh-base

       In [11]

#下载downloader.download('pretrain', 'ERNIE-v2-en-base', './pretrain_models')

Downloading pretrain: ERNIE-v2-en-base from https://ernie.bj.bcebos.com/ERNIE_Base_en_stable-2.0.0.tar.gz...>> Downloading... 100.0% done!Extracting ERNIE_Base_en_stable-2.0.0.tar.gz... done!done!

设置PALM参数，开始训练

此处的参数参考了 PaddlePALM样例: Quora问题相似度匹配 和 4月第1名方案，修改了学习率，epoch，drop率等等，大家可以自己进行调整

In [12]

import paddleimport jsonimport paddlepalmmax_seqlen = 128batch_size = 32num_epochs = 30lr = 1e-6weight_decay = 0.0001num_classes = 2random_seed = 1dropout_prob = 0.002save_path = './outputs/'save_type = 'ckpt'pred_model_path = './outputs/ckpt.step15000'print_steps = 1000pred_output = './outputs/predict/'pre_params =  '/home/aistudio/pretrain_models/pretrain/ERNIE-v2-en-base/params'task_name = 'Quora Question Pairs matching'vocab_path = '/home/aistudio/pretrain_models/pretrain/ERNIE-v2-en-base/vocab.txt'train_file = '/home/aistudio/data/data97586/train_palm.csv'predict_file = '/home/aistudio/data/data97586/test_palm.csv'config = json.load(open('/home/aistudio/pretrain_models/pretrain/ERNIE-v2-en-base/ernie_config.json'))input_dim = config['hidden_size']paddle.enable_static()

   In [ ]

match_reader = paddlepalm.reader.MatchReader(vocab_path, max_seqlen, seed=random_seed)# step 1-2: load the training datamatch_reader.load_data(train_file, file_format='tsv', num_epochs=num_epochs, batch_size=batch_size)# step 2: create a backbone of the model to extract text featuresernie = paddlepalm.backbone.ERNIE.from_config(config)# step 3: register the backbone in readermatch_reader.register_with(ernie)# step 4: create the task output headmatch_head = paddlepalm.head.Match(num_classes, input_dim, dropout_prob)# step 5-1: create a task trainertrainer = paddlepalm.Trainer(task_name)# step 5-2: build forward graph with backbone and task headloss_var = trainer.build_forward(ernie, match_head)# step 6-1*: use warmupn_steps = match_reader.num_examples * num_epochs // batch_sizewarmup_steps = int(0.1 * n_steps)sched = paddlepalm.lr_sched.TriangularSchedualer(warmup_steps, n_steps)# step 6-2: create a optimizeradam = paddlepalm.optimizer.Adam(loss_var, lr, sched)# step 6-3: build backwardtrainer.build_backward(optimizer=adam, weight_decay=weight_decay)# step 7: fit prepared reader and datatrainer.fit_reader(match_reader)# step 8-1*: load pretrained parameterstrainer.load_pretrain(pre_params, False)# step 8-2*: set saver to save modelsave_steps = 15000trainer.set_saver(save_path=save_path, save_steps=save_steps, save_type=save_type)# step 8-3: start trainingtrainer.train(print_steps=print_steps)# 预测部分代码，假设训练保存模型为./outputs/training_pred_model：print('prepare to predict...')

/opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/paddle/fluid/layers/math_op_patch.py:322: UserWarning: /opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/paddlepalm/backbone/ernie.py:180The behavior of expression A + B has been unified with elementwise_add(X, Y, axis=-1) from Paddle 2.0. If your code works well in the older versions but crashes in this version, try to use elementwise_add(X, Y, axis=0) instead of A + B. This transitional warning will be dropped in the future.  op_type, op_type, EXPRESSION_MAP[method_name]))/opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/paddle/fluid/layers/math_op_patch.py:322: UserWarning: /opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/paddlepalm/backbone/ernie.py:181The behavior of expression A + B has been unified with elementwise_add(X, Y, axis=-1) from Paddle 2.0. If your code works well in the older versions but crashes in this version, try to use elementwise_add(X, Y, axis=0) instead of A + B. This transitional warning will be dropped in the future.  op_type, op_type, EXPRESSION_MAP[method_name]))/opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/paddle/fluid/layers/math_op_patch.py:322: UserWarning: /opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/paddlepalm/backbone/ernie.py:191The behavior of expression A + B has been unified with elementwise_add(X, Y, axis=-1) from Paddle 2.0. If your code works well in the older versions but crashes in this version, try to use elementwise_add(X, Y, axis=0) instead of A + B. This transitional warning will be dropped in the future.  op_type, op_type, EXPRESSION_MAP[method_name]))/opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/paddle/fluid/layers/math_op_patch.py:322: UserWarning: /opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/paddlepalm/backbone/utils/transformer.py:148The behavior of expression A + B has been unified with elementwise_add(X, Y, axis=-1) from Paddle 2.0. If your code works well in the older versions but crashes in this version, try to use elementwise_add(X, Y, axis=0) instead of A + B. This transitional warning will be dropped in the future.  op_type, op_type, EXPRESSION_MAP[method_name]))/opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/paddle/fluid/layers/math_op_patch.py:322: UserWarning: /opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/paddlepalm/backbone/utils/transformer.py:237The behavior of expression A + B has been unified with elementwise_add(X, Y, axis=-1) from Paddle 2.0. If your code works well in the older versions but crashes in this version, try to use elementwise_add(X, Y, axis=0) instead of A + B. This transitional warning will be dropped in the future.  op_type, op_type, EXPRESSION_MAP[method_name]))/opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/paddle/fluid/framework.py:706: DeprecationWarning: `np.bool` is a deprecated alias for the builtin `bool`. To silence this warning, use `bool` by itself. Doing this will not modify any behavior and is safe. If you specifically wanted the numpy scalar type, use `np.bool_` here.Deprecated in NumPy 1.20; for more details and guidance: https://numpy.org/devdocs/release/1.20.0-notes.html#deprecations  elif dtype == np.bool:

ok!Loading pretraining parameters from /home/aistudio/pretrain_models/pretrain/ERNIE-v2-en-base/params...Warning: Quora Question Pairs matching.cls_out_w not found in /home/aistudio/pretrain_models/pretrain/ERNIE-v2-en-base/params.Warning: Quora Question Pairs matching.cls_out_b not found in /home/aistudio/pretrain_models/pretrain/ERNIE-v2-en-base/params.step 1000/15625 (epoch 0), loss: 0.689, speed: 2.37 steps/sstep 2000/15625 (epoch 0), loss: 0.702, speed: 2.37 steps/sstep 3000/15625 (epoch 0), loss: 0.555, speed: 2.37 steps/sstep 4000/15625 (epoch 0), loss: 0.587, speed: 2.37 steps/sstep 5000/15625 (epoch 0), loss: 0.413, speed: 2.37 steps/sstep 6000/15625 (epoch 0), loss: 0.433, speed: 2.37 steps/sstep 7000/15625 (epoch 0), loss: 0.491, speed: 2.37 steps/sstep 8000/15625 (epoch 0), loss: 0.440, speed: 2.37 steps/sstep 9000/15625 (epoch 0), loss: 0.475, speed: 2.38 steps/sstep 10000/15625 (epoch 0), loss: 0.277, speed: 2.37 steps/sstep 11000/15625 (epoch 0), loss: 0.324, speed: 2.37 steps/sstep 12000/15625 (epoch 0), loss: 0.268, speed: 2.37 steps/sstep 13000/15625 (epoch 0), loss: 0.377, speed: 2.37 steps/sstep 14000/15625 (epoch 0), loss: 0.283, speed: 2.37 steps/scheckpoint has been saved at ./outputs/ckpt.step15000step 15000/15625 (epoch 0), loss: 0.408, speed: 2.34 steps/sstep 375/15625 (epoch 1), loss: 0.480, speed: 2.37 steps/sstep 1375/15625 (epoch 1), loss: 0.273, speed: 2.37 steps/sstep 2375/15625 (epoch 1), loss: 0.270, speed: 2.37 steps/sstep 3375/15625 (epoch 1), loss: 0.314, speed: 2.35 steps/sstep 4375/15625 (epoch 1), loss: 0.330, speed: 2.36 steps/sstep 5375/15625 (epoch 1), loss: 0.226, speed: 2.36 steps/sstep 6375/15625 (epoch 1), loss: 0.290, speed: 2.36 steps/sstep 7375/15625 (epoch 1), loss: 0.315, speed: 2.36 steps/sstep 8375/15625 (epoch 1), loss: 0.500, speed: 2.36 steps/sstep 9375/15625 (epoch 1), loss: 0.259, speed: 2.36 steps/sstep 10375/15625 (epoch 1), loss: 0.490, speed: 2.36 steps/sstep 11375/15625 (epoch 1), loss: 0.357, speed: 2.35 steps/sstep 12375/15625 (epoch 1), loss: 0.630, speed: 2.32 steps/sstep 13375/15625 (epoch 1), loss: 0.292, speed: 2.31 steps/scheckpoint has been saved at ./outputs/ckpt.step30000step 14375/15625 (epoch 1), loss: 0.510, speed: 2.30 steps/sstep 15375/15625 (epoch 1), loss: 0.506, speed: 2.33 steps/sstep 750/15625 (epoch 2), loss: 0.321, speed: 2.36 steps/sstep 1750/15625 (epoch 2), loss: 0.275, speed: 2.50 steps/sstep 2750/15625 (epoch 2), loss: 0.269, speed: 2.51 steps/sstep 3750/15625 (epoch 2), loss: 0.160, speed: 2.51 steps/sstep 4750/15625 (epoch 2), loss: 0.434, speed: 2.50 steps/sstep 5750/15625 (epoch 2), loss: 0.392, speed: 2.50 steps/sstep 6750/15625 (epoch 2), loss: 0.694, speed: 2.50 steps/sstep 7750/15625 (epoch 2), loss: 0.327, speed: 2.51 steps/sstep 8750/15625 (epoch 2), loss: 0.298, speed: 2.50 steps/sstep 9750/15625 (epoch 2), loss: 0.282, speed: 2.51 steps/sstep 10750/15625 (epoch 2), loss: 0.409, speed: 2.50 steps/sstep 11750/15625 (epoch 2), loss: 0.234, speed: 2.50 steps/sstep 12750/15625 (epoch 2), loss: 0.276, speed: 2.50 steps/scheckpoint has been saved at ./outputs/ckpt.step45000step 13750/15625 (epoch 2), loss: 0.279, speed: 2.47 steps/sstep 14750/15625 (epoch 2), loss: 0.277, speed: 2.50 steps/sstep 125/15625 (epoch 3), loss: 0.424, speed: 2.50 steps/sstep 1125/15625 (epoch 3), loss: 0.616, speed: 2.50 steps/sstep 2125/15625 (epoch 3), loss: 0.144, speed: 2.49 steps/sstep 3125/15625 (epoch 3), loss: 0.253, speed: 2.49 steps/sstep 4125/15625 (epoch 3), loss: 0.168, speed: 2.50 steps/sstep 5125/15625 (epoch 3), loss: 0.211, speed: 2.47 steps/sstep 6125/15625 (epoch 3), loss: 0.407, speed: 2.49 steps/sstep 7125/15625 (epoch 3), loss: 0.203, speed: 2.49 steps/sstep 8125/15625 (epoch 3), loss: 0.140, speed: 2.50 steps/sstep 9125/15625 (epoch 3), loss: 0.406, speed: 2.50 steps/sstep 10125/15625 (epoch 3), loss: 0.327, speed: 2.49 steps/sstep 11125/15625 (epoch 3), loss: 0.283, speed: 2.50 steps/sstep 12125/15625 (epoch 3), loss: 0.241, speed: 2.49 steps/s

       In [ ]

#经过验证，使用从预训练模型训练到480000step的参数预测表现较好vocab_path = '/home/aistudio/pretrain_models/pretrain/ERNIE-v2-en-base/vocab.txt'predict_match_reader = paddlepalm.reader.MatchReader(vocab_path, max_seqlen, seed=random_seed, phase='predict')# step 1-2: load the training datapredict_match_reader.load_data(predict_file, batch_size)# step 2: create a backbone of the model to extract text featurespred_ernie = paddlepalm.backbone.ERNIE.from_config(config, phase='predict')# step 3: register the backbone in readerpredict_match_reader.register_with(pred_ernie)# step 4: create the task output headmatch_pred_head = paddlepalm.head.Match(num_classes, input_dim, phase='predict')predicter=paddlepalm.Trainer(task_name)# step 5: build forward graph with backbone and task headpredicter.build_predict_forward(pred_ernie, match_pred_head)pred_model_path ='./outputs/ckpt.step480000'# step 6: load pretrained modelpred_ckpt = predicter.load_ckpt(pred_model_path)# step 7: fit prepared reader and datapredicter.fit_reader(predict_match_reader, phase='predict')# step 8: predictprint('predicting..')predicter.predict(print_steps=print_steps, output_dir=pred_output)

读取palm预测结果

In [ ]

palm_proba = pd.read_json('./outputs/predict/predictions.json',lines=True)

模型结果融合

In [ ]

##读取PALMPALM预测中为欺诈点击的概率palm_res = palm_proba.probs.apply(lambda x: x[1])##读取xgboost的预测概率xgb_result = pd.read_csv('./xgb_proba.csv',encoding='utf-8')

   In [ ]

##将XGBoost和palm的预测结果相加，用1作为阀值投票palm_label = palm_proba.labelvote = xgb_result['1'] + palm_resvote = pd.DataFrame(vote)result = vote[0].apply(lambda x:1 if x>=1 else 0)

   In [ ]

##最终结果保存a = pd.DataFrame(sid)a['label']= resulta.to_csv('composition.csv',index = False)
