教你Node.js+SpreadJS从服务端生成Excel电子表格

Node是一个基于Chrome V8引擎的JavaScript运行环境，通常用于创建网络应用程序。它可以同时处理多个连接，并且不像其他大多数模型那样依赖线程。

对于 Web 开发者来说，从数据库或Web服务器获取数据，然后输出到Excel文件以进行进一步分析的场景时有发生。我们的技术团队在跟国内外各行各业用户交流的过程中，就曾发现有很多的用户尝试在Node.js的环境下运行SpreadJS 纯前端表格控件，借助该控件，可以在服务器不预装任何Excel依赖项的情况下，收集用户输入的信息，并将其自动导出到Excel文件中。

为了满足广大技术爱好者的需要，同时减少大家在未来技术选型方面所走的弯路，本文将就SpreadJS 与 Node.js之间的技术性方案进行探讨！

一、安装 SpreadJS 和 Node .js

首先，我们需要安装Node.js以及Mock-Browser，BufferJS和FileReader，大家可以前往以下链接进行下载，同步操作：

Installing Node.js viaPackage ManagerMock-BrowserBufferJSFileReader

我们将使用Visual Studio创建应用程序。打开Visual Studio后，使用JavaScript> Node.js>Blank Node.js控制台应用程序模板创建一个新应用程序。这将自动创建所需的文件并打开” app.js”文件，也是我们将要更改的唯一文件。

对于BufferJS库，您需要下载该软件包，然后通过导航到项目文件夹（一旦创建）并运行以下命令，将其手动安装到项目中：

npm install

安装完成后，您可能需要打开项目的package.json文件并将其添加到” dependencies”部分。文件内容应如下所示：

{"name": "spread-sheets-node-jsapp","version": "0.0.0","description": "SpreadSheetsNodeJSApp","main": "app.js","author": {   "name": "admin"},"dependencies": {   "FileReader": "^0.10.2",   "bufferjs": "1.0.0",   "mock-browser": "^0.92.14"  }}

在此示例中，我们将使用Node.js的文件系统模块。我们可以将其加载到：

var fs = require('fs')

为了将SpreadJS与Node.js结合使用，我们还需要加载已安装的Mock-Browser：

var mockBrowser =require('mock-browser').mocks.MockBrowser

在加载SpreadJS脚本之前，我们需要初始化模拟浏览器。初始化我们稍后在应用程序中可能需要使用的变量，尤其是” window”变量：

global.window =mockBrowser.createWindow()global.document = window.documentglobal.navigator = window.navigatorglobal.HTMLCollection =window.HTMLCollectionglobal.getComputedStyle =window.getComputedStyle

初始化FileReader库：

var fileReader = require('filereader');global.FileReader = fileReader;

二、使用SpreadJS npm 包

将SpreadJS安装文件中的SpreadJS Sheets和ExcelIO包添加到项目中。

您可以通过右键单击解决方案资源管理器的” npm”部分并将它们添加到您的项目中，然后选择”安装新的NPM软件包”。您应该能够搜索” GrapeCity”并安装以下2个软件包：

@grapecity/spread-sheets@grapectiy/spread-excelio

将SpreadJS npm软件包添加到项目后，正确的依赖关系将被写入package.json：

{"name": "spread-sheets-node-jsapp","version": "0.0.0","description": "SpreadSheetsNodeJSApp","main": "app.js","author": {   "name": "admin"},  "dependencies":{   "@grapecity/spread-excelio": "^11.2.1",   "@grapecity/spread-sheets": "^11.2.1",   "FileReader": "^0.10.2",   "bufferjs": "1.0.0",   "mock-browser": "^0.92.14"  }}

现在我们需要在app.js文件中引入它：

var GC =require('@grapecity/spread-sheets')var GCExcel =require('@grapecity/spread-excelio');

使用npm软件包时，还需要设置许可证密钥（点击此处，免费申请许可证密钥）：

酷表ChatExcel

北大团队开发的通过聊天来操作Excel表格的AI工具

48 查看详情

GC.Spread.Sheets.LicenseKey =""

在这个特定的应用程序中，我们将向用户显示他们正在使用哪个版本的SpreadJS。为此，我们可以引入package.json文件，然后引用依赖项以获取版本号：

var packageJson =require('./package.json')console.log('n** Using Spreadjs Version"' + packageJson.dependencies["@grapecity/spread-sheets"] +'" **')

三、将 Excel 文件加载到您的 Node.js 应用程序中

点击此处，下载现成的Excel模板文件，该文件包含了从用户那里获取数据。接下来，将数据放入文件中并导出。在这种情况下，文件是用户可以编辑的状态。

初始化工作簿和ExcelIO变量：

var wb = new GC.Spread.Sheets.Workbook();var excelIO = new GCExcel.IO();

我们在读取文件时将代码包装在try / catch块中。然后，初始化变量” readline”，让您读取用户输入到控制台的数据。接下来，我们将其存储到一个JavaScript数组中，以便轻松填写Excel文件：

// Instantiate the spreadsheet and modifyitconsole.log('nManipulatingSpreadsheetn---');try {   var file = fs.readFileSync('./content/billingInvoiceTemplate.xlsx');   excelIO.open(file.buffer, (data) => {       wb.fromJSON(data);       const readline = require('readline');       var invoice = {            generalInfo: [],            invoiceItems: [],            companyDetails: []       };   });} catch (e) {   console.error("** Error manipulating spreadsheet **");   console.error(e);}

四、收集用户输入信息

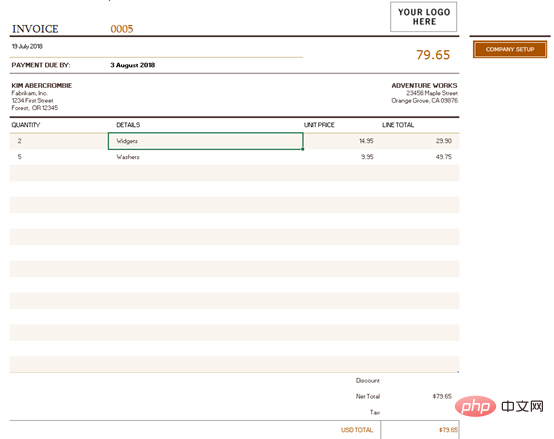

上图显示了我们正在使用的Excel文件。我们可以在excelio.open调用中创建一个单独的函数，以在控制台中提示用户需要的每一项内容。我们也可以创建一个单独的数组，将数据保存到每个输入后，然后将其推送到我们创建的invoice.generalInfo数组中：

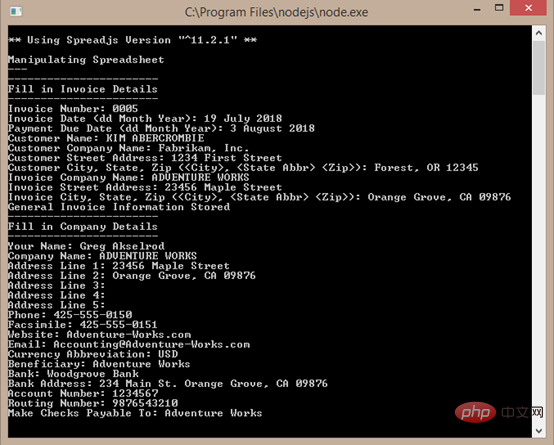

fillGeneralInformation();function fillGeneralInformation() {   console.log("-----------------------nFill in InvoiceDetailsn-----------------------")   const rl = readline.createInterface({       input: process.stdin,       output: process.stdout   });   var generalInfoArray = [];   rl.question('Invoice Number: ', (answer) => {       generalInfoArray.push(answer);       rl.question('Invoice Date (dd Month Year): ', (answer) => {           generalInfoArray.push(answer);            rl.question('Payment Due Date (ddMonth Year): ', (answer) => {                generalInfoArray.push(answer);                rl.question('Customer Name: ',(answer) => {                   generalInfoArray.push(answer);                    rl.question('CustomerCompany Name: ', (answer) => {                       generalInfoArray.push(answer);                        rl.question('Customer Street Address:', (answer) => {                           generalInfoArray.push(answer);                           rl.question('Customer City, State, Zip (, ): ', (answer) => {                                generalInfoArray.push(answer);                               rl.question('Invoice Company Name: ', (answer) => {                                   generalInfoArray.push(answer);                                   rl.question('Invoice Street Address: ', (answer) => {                                       generalInfoArray.push(answer);                                       rl.question('Invoice City, State, Zip (, ): ', (answer) => {                                            generalInfoArray.push(answer);                                           rl.close();                                           invoice.generalInfo.push({                                               "invoiceNumber": generalInfoArray[0],                                               "invoiceDate": generalInfoArray[1],                                               "paymentDueDate": generalInfoArray[2],                                               "customerName": generalInfoArray[3],                                               "customerCompanyName": generalInfoArray[4],                                               "customerStreetAddress": generalInfoArray[5],                                               "customerCityStateZip": generalInfoArray[6],                                               "invoiceCompanyName": generalInfoArray[7],                                               "invoiceStreetAddress": generalInfoArray[8],                                               "invoiceCityStateZip": generalInfoArray[9],                                            });                                           console.log("General Invoice Information Stored");                                           fillCompanyDetails();                                        });                                    });                               });                            });                        });                    });                });            });       });   });}

该函数被称为” fillCompanyDetails”，目的是收集有关公司的信息以填充到工作簿的第二张表中：

function fillCompanyDetails() {   console.log("-----------------------nFill in CompanyDetailsn-----------------------")   const rl = readline.createInterface({       input: process.stdin,       output: process.stdout   });   var companyDetailsArray = []   rl.question('Your Name: ', (answer) => {       companyDetailsArray.push(answer);       rl.question('Company Name: ', (answer) => {            companyDetailsArray.push(answer);            rl.question('Address Line 1: ',(answer) => {               companyDetailsArray.push(answer);                rl.question('Address Line 2: ',(answer) => {                   companyDetailsArray.push(answer);                    rl.question('Address Line3: ', (answer) => {                       companyDetailsArray.push(answer);                        rl.question('AddressLine 4: ', (answer) => {                           companyDetailsArray.push(answer);                           rl.question('Address Line 5: ', (answer) => {                               companyDetailsArray.push(answer);                               rl.question('Phone: ', (answer) => {                                   companyDetailsArray.push(answer);                                   rl.question('Facsimile: ', (answer) => {                                       companyDetailsArray.push(answer);                                        rl.question('Website: ', (answer)=> {                                           companyDetailsArray.push(answer);                                           rl.question('Email: ', (answer) => {                                                companyDetailsArray.push(answer);                                               rl.question('Currency Abbreviation: ', (answer) => {                                                   companyDetailsArray.push(answer);                                                    rl.question('Beneficiary: ',(answer) => {                                                       companyDetailsArray.push(answer);                                                       rl.question('Bank: ', (answer) => {                                                            companyDetailsArray.push(answer);                                                           rl.question('Bank Address: ', (answer) => {                                                               companyDetailsArray.push(answer);                                                               rl.question('Account Number: ', (answer) => {                                                                   companyDetailsArray.push(answer);                                                                    rl.question('RoutingNumber: ', (answer) => {                                                                       companyDetailsArray.push(answer);                                                                       rl.question('Make Checks Payable To: ', (answer) => {                                                                           companyDetailsArray.push(answer);                                                                            rl.close();                                                                           invoice.companyDetails.push({                                                                               "yourName": companyDetailsArray[0],                                                                               "companyName": companyDetailsArray[1],                                                                               "addressLine1": companyDetailsArray[2],                                                                               "addressLine2": companyDetailsArray[3],                                                                               "addressLine3": companyDetailsArray[4],                                                                               "addressLine4": companyDetailsArray[5],                                                                               "addressLine5": companyDetailsArray[6],                                                                                "phone":companyDetailsArray[7],                                                                               "facsimile": companyDetailsArray[8],                                                                                "website":companyDetailsArray[9],                                                                               "email": companyDetailsArray[10],                                                                               "currencyAbbreviation":companyDetailsArray[11],                                                                               "beneficiary": companyDetailsArray[12],                                                                               "bank":companyDetailsArray[13],                                                                               "bankAddress": companyDetailsArray[14],                                                                               "accountNumber": companyDetailsArray[15],                                                                               "routingNumber": companyDetailsArray[16],                                                                               "payableTo": companyDetailsArray[17]                                                                           });                                                                           console.log("Invoice Company Information Stored");                                                                            console.log("-----------------------nFillin Invoice Itemsn-----------------------")                                                                           fillInvoiceItemsInformation();                                                                        });                                                                   });                                                               });                                                           });                                                       });                                                   });                                               });                                            });                                        });                                    });                                });                            });                        });                    });                });            });       });   });}

现在我们已经有了用户的基本信息，我们可以集中精力收集单个项目，并另命名为” fillInvoiceItemsInformation”函数。在每个项目执行之前，我们会询问用户是否要添加一个项目。如果他们继续输入” y”，那么我们将收集该项目的信息，然后再次询问直到他们键入” n”：

function fillInvoiceItemsInformation() {   const rl = readline.createInterface({       input: process.stdin,       output: process.stdout   });   var invoiceItemArray = [];   rl.question('Add item?(y/n): ', (answer) => {       switch (answer) {            case "y":               console.log("-----------------------nEnter ItemInformationn-----------------------");                rl.question('Quantity: ',(answer) => {                   invoiceItemArray.push(answer);                    rl.question('Details: ',(answer) => {                       invoiceItemArray.push(answer);                        rl.question('UnitPrice: ', (answer) => {                           invoiceItemArray.push(answer);                           invoice.invoiceItems.push({                               "quantity":invoiceItemArray[0],                               "details": invoiceItemArray[1],                               "unitPrice": invoiceItemArray[2]                            });                            console.log("ItemInformation Added");                            rl.close();                           fillInvoiceItemsInformation();                        });                    });                });                break;            case "n":               rl.close();                return fillExcelFile();                break;            default:                console.log("Incorrectoption, Please enter 'y' or 'n'.");       }   });}

五、填入您的Excel 文件

在收集所有必需的用户信息后，我们可以将其填入到Excel文件中：

function fillExcelFile() {   console.log("-----------------------nFilling in Excelfilen-----------------------");   fillBillingInfo();   fillCompanySetup();}function fillBillingInfo() {   var sheet = wb.getSheet(0);   sheet.getCell(0, 2).value(invoice.generalInfo[0].invoiceNumber);   sheet.getCell(1, 1).value(invoice.generalInfo[0].invoiceDate);   sheet.getCell(2, 2).value(invoice.generalInfo[0].paymentDueDate);   sheet.getCell(3, 1).value(invoice.generalInfo[0].customerName);   sheet.getCell(4, 1).value(invoice.generalInfo[0].customerCompanyName);   sheet.getCell(5, 1).value(invoice.generalInfo[0].customerStreetAddress);   sheet.getCell(6, 1).value(invoice.generalInfo[0].customerCityStateZip);   sheet.getCell(3, 3).value(invoice.generalInfo[0].invoiceCompanyName);   sheet.getCell(4, 3).value(invoice.generalInfo[0].invoiceStreetAddress);   sheet.getCell(5, 3).value(invoice.generalInfo[0].invoiceCityStateZip);}function fillCompanySetup() {   var sheet = wb.getSheet(1);   sheet.getCell(2, 2).value(invoice.companyDetails[0].yourName);   sheet.getCell(3, 2).value(invoice.companyDetails[0].companyName);   sheet.getCell(4, 2).value(invoice.companyDetails[0].addressLine1);   sheet.getCell(5, 2).value(invoice.companyDetails[0].addressLine2);   sheet.getCell(6, 2).value(invoice.companyDetails[0].addressLine3);   sheet.getCell(7, 2).value(invoice.companyDetails[0].addressLine4);   sheet.getCell(8, 2).value(invoice.companyDetails[0].addressLine5);   sheet.getCell(9, 2).value(invoice.companyDetails[0].phone);   sheet.getCell(10, 2).value(invoice.companyDetails[0].facsimile);   sheet.getCell(11, 2).value(invoice.companyDetails[0].website);   sheet.getCell(12, 2).value(invoice.companyDetails[0].email);   sheet.getCell(13, 2).value(invoice.companyDetails[0].currencyAbbreviation);   sheet.getCell(14, 2).value(invoice.companyDetails[0].beneficiary);   sheet.getCell(15, 2).value(invoice.companyDetails[0].bank);   sheet.getCell(16, 2).value(invoice.companyDetails[0].bankAddress);   sheet.getCell(17, 2).value(invoice.companyDetails[0].accountNumber);   sheet.getCell(18, 2).value(invoice.companyDetails[0].routingNumber);   sheet.getCell(19, 2).value(invoice.companyDetails[0].payableTo);}

为了防止用户添加的数量超过工作表最大行数，我们可以在工作表中自动添加更多行。在设置数组中表单中的项目之前，默认添加行：

function fillInvoiceItems() {   var sheet = wb.getSheet(0);   var rowsToAdd = 0;   if (invoice.invoiceItems.length > 15) {       rowsToAdd = invoice.invoiceItems.length - 15;       sheet.addRows(22, rowsToAdd);   }   var rowIndex = 8;   if (invoice.invoiceItems.length >= 1) {       for (var i = 0; i < invoice.invoiceItems.length; i++) {            sheet.getCell(rowIndex,1).value(invoice.invoiceItems.quantity);            sheet.getCell(rowIndex,2).value(invoice.invoiceItems.details);            sheet.getCell(rowIndex,3).value(invoice.invoiceItems.unitPrice);            rowIndex++;       }   }}

六、将文档内容从 Node.js 导出到 Excel 文件

在工作簿中填写完信息后，我们可以将工作簿导出到Excel文件中。为此，我们将使用excelio打开功能。在这种情况下，只需将日期输入文件名即可：

function exportExcelFile() {   excelIO.save(wb.toJSON(), (data) => {       fs.appendFileSync('Invoice' + new Date().valueOf() + '.xlsx', newBuffer(data), function (err) {            console.log(err);       });       console.log("Export success");   }, (err) => {       console.log(err);   }, { useArrayBuffer: true });}

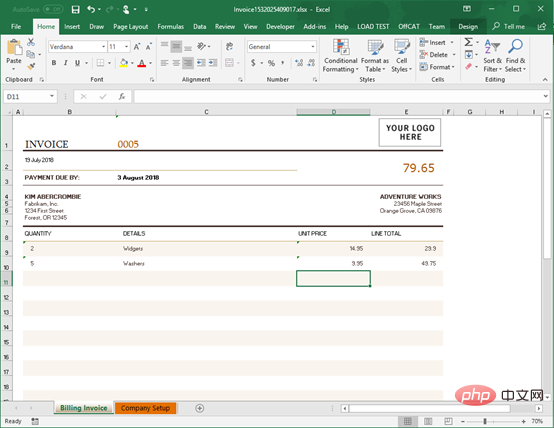

完成的文件将如下所示：
