Paddle2.0：浅析并实现 CaiT 模型

《Going deeper with Image Transformers》针对图像Transformer优化少的问题，研究构建和优化更深网络。提出LayerScale，在残差块输出乘对角线矩阵，改善训练动态以训练更深模型；设计类别注意力层，分离patch自注意与信息总结。所建CaiT模型在图像分类任务中表现出色。

☞☞☞AI 智能聊天, 问答助手, AI 智能搜索, 免费无限量使用 DeepSeek R1 模型☜☜☜

引入

Transformer 最近已在大规模图像分类任务中获得了很高的分数，这逐渐动摇了卷积神经网络的长期霸主地位。但是，到目前为止，对图像 Transformer 的优化还很少进行研究。在这项工作中，作者为图像分类建立和优化了更深的 Transformer 网络。特别是，我们研究了这种专用 Transformer 的架构和优化之间的相互作用。

相关资料

论文：Going deeper with Image Transformers官方实现：facebookresearch/deit

主要改进

这篇论文基于 ViT 和 DeiT 进行研究，探索实现更深层的 Image Transformer 模型的训练，主要有以下两点改进：使用 LayerScale 实现更深层的 Image Transformer 模型（Deeper image transformers with LayerScale）特别设计的类别注意力层（Specializing layers for class attention）

使用 LayerScale 实现更深层的 Image Transformer 模型

原理介绍

Vision Transformer 展示了一种特殊形式的残差结构：在将输入图像转换成一组向量之后，网络将自注意层（SA）与前馈网络（FFN）交替，如下所示：

（公式 1）

其中 η 代表 LayerNorm

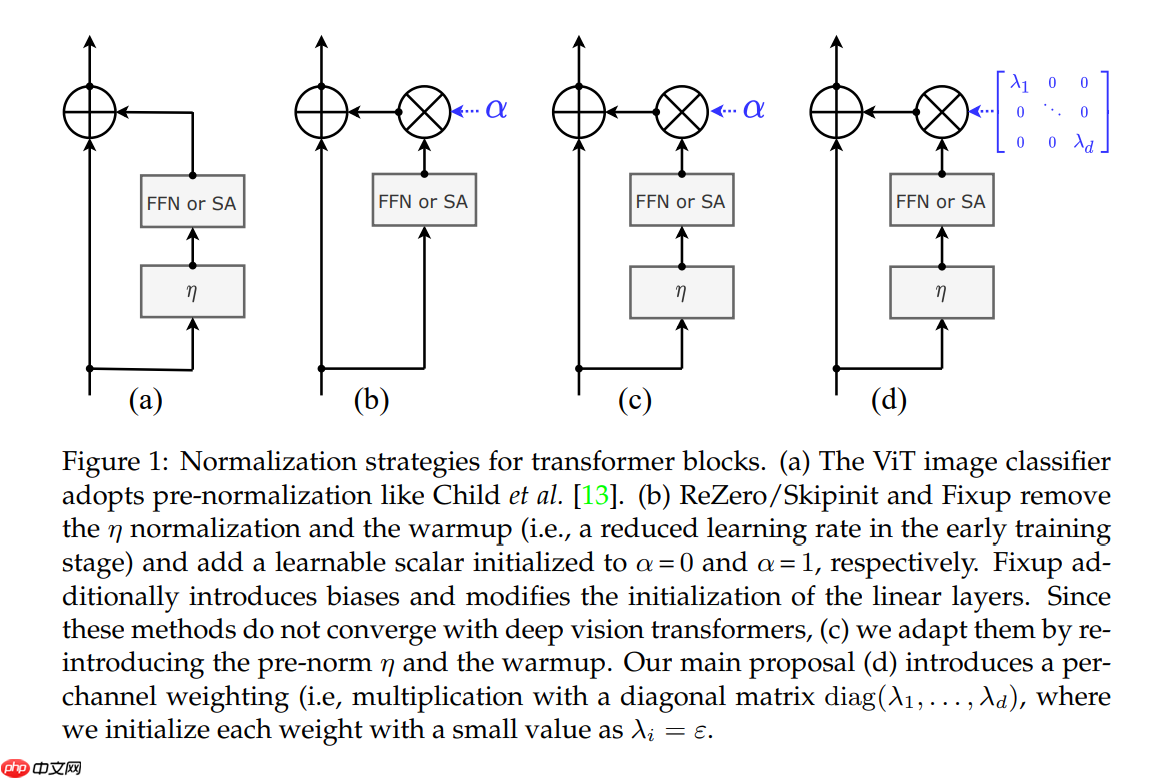

但是这种结构无法很好的训练更深层的网络模型，在分析了不同的初始化、优化和体系结构设计之间的相互作用之后，作者提出了一种方法与现有的方法相比，这种方法可以有效地提高更深层的 Image Transformer 模型的训练效果形式上，在每个残差块的输出上添加一个可学习的对角矩阵，初始化接近于 0在每个残差块之后添加这个简单的层提高了训练动态性，允许我们训练更深层的受益于深度的大容量 Image Transformer 模型作者将这种方法称为 LayerScale (d)，具体的结构对比示意图如下：

作者建议的 LayerScale 是由每个残差块产生的向量的每通道相乘，而不是单个标量，见上图（d）。目标是将与同一输出通道相关联的权重的更新分组形式上，LayerScale 是在每个残差块的输出上乘以对角线矩阵，换言之，作者修改了上述的公式 1：

其中  和  为可学习参数

ε 为对角线值的初始化值，一般为一个较小的数，作者设置为 ε=0.1 当深度小于等于 18 时，ε=10−5ε=10−5 当深度小于等于 24 时，和 ε=10−6ε=10−6 当深度大于 24 时

η 代表 LayerNorm

代码实现

class LayerScale_Block(nn.Layer):    # with slight modifications to add layerScale    def __init__(self, dim, num_heads, mlp_ratio=4., qkv_bias=False, qk_scale=None, drop=0., attn_drop=0.,                 drop_path=0., act_layer=nn.GELU, norm_layer=nn.LayerNorm, epsilon=1e-6,                 Attention_block=Attention_talking_head, Mlp_block=Mlp, init_values=1e-4):        super().__init__()        self.norm1 = norm_layer(dim, epsilon=epsilon)        self.attn = Attention_block(            dim,            num_heads=num_heads,            qkv_bias=qkv_bias,            qk_scale=qk_scale,            attn_drop=attn_drop,            proj_drop=drop        )        self.drop_path = DropPath(drop_path) if drop_path > 0. else Identity()        self.norm2 = norm_layer(dim, epsilon=epsilon)        mlp_hidden_dim = int(dim * mlp_ratio)        self.mlp = Mlp_block(            in_features=dim,            hidden_features=mlp_hidden_dim,            act_layer=act_layer,            drop=drop        )        # 创建 LayerScale 的两个可学习参数        # 使用 init_values 初始化这两个参数        self.gamma_1 = add_parameter(self, init_values * paddle.ones((dim,)))        self.gamma_2 = add_parameter(self, init_values * paddle.ones((dim,)))    def forward(self, x):        x = x + self.drop_path(self.gamma_1 * self.attn(self.norm1(x)))        x = x + self.drop_path(self.gamma_2 * self.mlp(self.norm2(x)))        return x

特别设计的类别注意力层

原理介绍

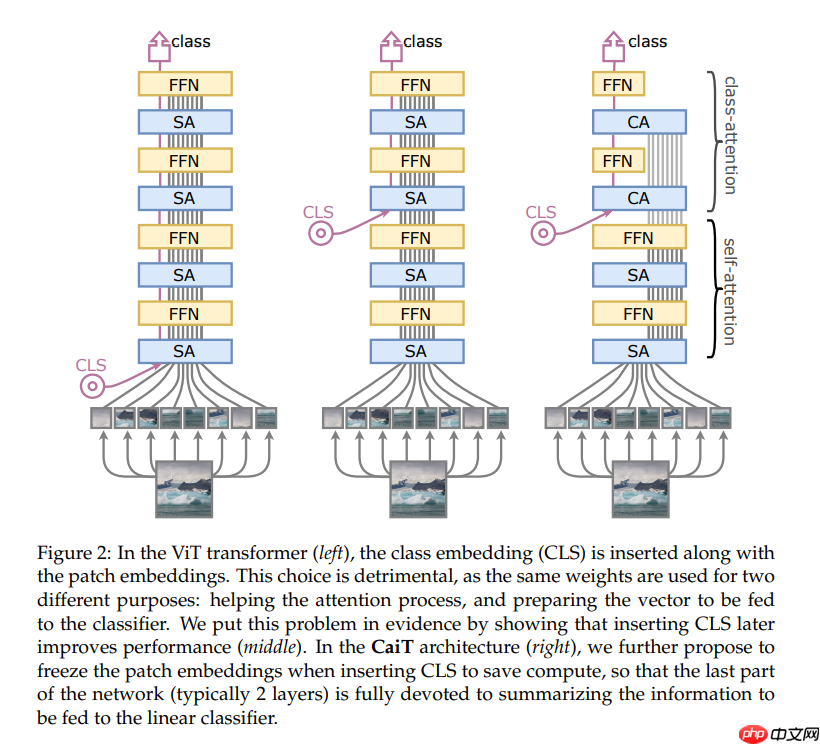

该设计旨在规避 ViT 体系结构的一个问题，学习的权重被要求优化两个矛盾的目标:引导 patch 之间的自注意总结信息对线性分类器有用作者建议是按照 Encoder-Decoder 体系结构的思想，显式地分离这两个阶段后置类别标记（Later class token）：作者在 transformer 网络的中途添加 class token，这种选择消除了 transformer 第一层上的差异，因此完全用于在 patch 之间执行自注意在结构上 CaiT 网络由两个不同的处理阶段组成，如下图所示：self-attention stage 与 ViT 的 transformer 相同，但没有类嵌入 (CLS)class-attention stage 是一组层，它将一组 patch 嵌入到一个类嵌入 CLS 中，后者随后被提供给一个线性分类器

代码实现

# Class Attention class Class_Attention(nn.Layer):    # with slight modifications to do CA    def __init__(self, dim, num_heads=8, qkv_bias=False,                  qk_scale=None, attn_drop=0., proj_drop=0.):        super().__init__()        self.num_heads = num_heads        head_dim = dim // num_heads        self.scale = qk_scale or head_dim ** -0.5        self.q = nn.Linear(dim, dim, bias_attr=qkv_bias)        self.k = nn.Linear(dim, dim, bias_attr=qkv_bias)        self.v = nn.Linear(dim, dim, bias_attr=qkv_bias)        self.attn_drop = nn.Dropout(attn_drop)        self.proj = nn.Linear(dim, dim)        self.proj_drop = nn.Dropout(proj_drop)    def forward(self, x):        # 输入是 [cls token, x]        # 输出是计算 attention 之后的 cls token        # 在多层堆叠的时候后面的 x 一直是不变的        B, N, C = x.shape                # query 只取 cls token        q = self.q(x[:, 0]).unsqueeze(1).reshape(            (B, 1, self.num_heads, C // self.num_heads)        ).transpose((0, 2, 1, 3))        k = self.k(x).reshape(            (B, N, self.num_heads, C // self.num_heads)        ).transpose((0, 2, 1, 3))        q = q * self.scale        v = self.v(x).reshape(            (B, N, self.num_heads, C // self.num_heads)        ).transpose((0, 2, 1, 3))        attn = q.matmul(k.transpose((0, 1, 3, 2)))        attn = nn.functional.softmax(attn, axis=-1)        attn = self.attn_drop(attn)        x_cls = (attn.matmul(v)).transpose((0, 2, 1, 3)).reshape((B, 1, C))        x_cls = self.proj(x_cls)        x_cls = self.proj_drop(x_cls)        return x_cls# 结合 LayerScale 和 Class Attentionclass LayerScale_Block_CA(nn.Layer):    # with slight modifications to add CA and LayerScale    def __init__(self, dim, num_heads, mlp_ratio=4., qkv_bias=False, qk_scale=None, drop=0., attn_drop=0.,                 drop_path=0., act_layer=nn.GELU, norm_layer=nn.LayerNorm, epsilon=1e-6,                 Attention_block=Class_Attention, Mlp_block=Mlp, init_values=1e-4):        super().__init__()        self.norm1 = norm_layer(dim, epsilon=epsilon)        self.attn = Attention_block(            dim,             num_heads=num_heads,             qkv_bias=qkv_bias,             qk_scale=qk_scale,             attn_drop=attn_drop,             proj_drop=drop        )        self.drop_path = DropPath(drop_path) if drop_path > 0. else Identity()        self.norm2 = norm_layer(dim, epsilon=epsilon)        mlp_hidden_dim = int(dim * mlp_ratio)        self.mlp = Mlp_block(            in_features=dim,             hidden_features=mlp_hidden_dim,             act_layer=act_layer,             drop=drop        )        self.gamma_1 = add_parameter(self, init_values * paddle.ones((dim,)))        self.gamma_2 = add_parameter(self, init_values * paddle.ones((dim,)))    def forward(self, x, x_cls):        # 拼接 cls token 和 输入        u = paddle.concat((x_cls, x), axis=1)                # Class Attention + FFN        x_cls = x_cls + self.drop_path(self.gamma_1 * self.attn(self.norm1(u)))        x_cls = x_cls + self.drop_path(self.gamma_2 * self.mlp(self.norm2(x_cls)))        return x_cls

模型搭建

上面介绍了 CaiT 模型的一些重要的改进点接下来就完整地搭建一下模型

模型组网

In [ ]

import paddleimport paddle.nn as nnfrom common import add_parameterfrom common import trunc_normal_, zeros_, ones_from common import DropPath, Identity, Mlp, PatchEmbedclass Class_Attention(nn.Layer):    # with slight modifications to do CA    def __init__(self, dim, num_heads=8, qkv_bias=False,                 qk_scale=None, attn_drop=0., proj_drop=0.):        super().__init__()        self.num_heads = num_heads        head_dim = dim // num_heads        self.scale = qk_scale or head_dim ** -0.5        self.q = nn.Linear(dim, dim, bias_attr=qkv_bias)        self.k = nn.Linear(dim, dim, bias_attr=qkv_bias)        self.v = nn.Linear(dim, dim, bias_attr=qkv_bias)        self.attn_drop = nn.Dropout(attn_drop)        self.proj = nn.Linear(dim, dim)        self.proj_drop = nn.Dropout(proj_drop)    def forward(self, x):        B, N, C = x.shape        q = self.q(x[:, 0]).unsqueeze(1).reshape(            (B, 1, self.num_heads, C // self.num_heads)        ).transpose((0, 2, 1, 3))        k = self.k(x).reshape(            (B, N, self.num_heads, C // self.num_heads)        ).transpose((0, 2, 1, 3))        q = q * self.scale        v = self.v(x).reshape(            (B, N, self.num_heads, C // self.num_heads)        ).transpose((0, 2, 1, 3))        attn = q.matmul(k.transpose((0, 1, 3, 2)))        attn = nn.functional.softmax(attn, axis=-1)        attn = self.attn_drop(attn)        x_cls = (attn.matmul(v)).transpose((0, 2, 1, 3)).reshape((B, 1, C))        x_cls = self.proj(x_cls)        x_cls = self.proj_drop(x_cls)        return x_clsclass LayerScale_Block_CA(nn.Layer):    # with slight modifications to add CA and LayerScale    def __init__(self, dim, num_heads, mlp_ratio=4., qkv_bias=False, qk_scale=None, drop=0., attn_drop=0.,                 drop_path=0., act_layer=nn.GELU, norm_layer=nn.LayerNorm, epsilon=1e-6,                 Attention_block=Class_Attention, Mlp_block=Mlp, init_values=1e-4):        super().__init__()        self.norm1 = norm_layer(dim, epsilon=epsilon)        self.attn = Attention_block(            dim,             num_heads=num_heads,             qkv_bias=qkv_bias,             qk_scale=qk_scale,             attn_drop=attn_drop,             proj_drop=drop        )        self.drop_path = DropPath(drop_path) if drop_path > 0. else Identity()        self.norm2 = norm_layer(dim, epsilon=epsilon)        mlp_hidden_dim = int(dim * mlp_ratio)        self.mlp = Mlp_block(            in_features=dim,             hidden_features=mlp_hidden_dim,             act_layer=act_layer,             drop=drop        )        self.gamma_1 = add_parameter(self, init_values * paddle.ones((dim,)))        self.gamma_2 = add_parameter(self, init_values * paddle.ones((dim,)))    def forward(self, x, x_cls):        u = paddle.concat((x_cls, x), axis=1)        x_cls = x_cls + self.drop_path(self.gamma_1 * self.attn(self.norm1(u)))        x_cls = x_cls + self.drop_path(self.gamma_2 * self.mlp(self.norm2(x_cls)))        return x_clsclass Attention_talking_head(nn.Layer):    # with slight modifications to add Talking Heads Attention (https://arxiv.org/pdf/2003.02436v1.pdf)    def __init__(self, dim, num_heads=8, qkv_bias=False,                 qk_scale=None, attn_drop=0., proj_drop=0.):        super().__init__()        self.num_heads = num_heads        head_dim = dim // num_heads        self.scale = qk_scale or head_dim ** -0.5        self.qkv = nn.Linear(dim, dim * 3, bias_attr=qkv_bias)        self.attn_drop = nn.Dropout(attn_drop)        self.proj = nn.Linear(dim, dim)        self.proj_l = nn.Linear(num_heads, num_heads)        self.proj_w = nn.Linear(num_heads, num_heads)        self.proj_drop = nn.Dropout(proj_drop)    def forward(self, x):        B, N, C = x.shape        qkv = self.qkv(x).reshape(            (B, N, 3, self.num_heads, C // self.num_heads)        ).transpose((2, 0, 3, 1, 4))        q, k, v = qkv[0] * self.scale, qkv[1], qkv[2]        attn = (q.matmul(k.transpose((0, 1, 3, 2))))        attn = self.proj_l(attn.transpose((0, 2, 3, 1))).transpose((0, 3, 1, 2))        attn = nn.functional.softmax(attn, axis=-1)        attn = self.proj_w(attn.transpose((0, 2, 3, 1))).transpose((0, 3, 1, 2))        attn = self.attn_drop(attn)        x = (attn.matmul(v)).transpose((0, 2, 1, 3)).reshape((B, N, C))        x = self.proj(x)        x = self.proj_drop(x)        return xclass LayerScale_Block(nn.Layer):    # with slight modifications to add layerScale    def __init__(self, dim, num_heads, mlp_ratio=4., qkv_bias=False, qk_scale=None, drop=0., attn_drop=0.,                 drop_path=0., act_layer=nn.GELU, norm_layer=nn.LayerNorm, epsilon=1e-6,                 Attention_block=Attention_talking_head, Mlp_block=Mlp, init_values=1e-4):        super().__init__()        self.norm1 = norm_layer(dim, epsilon=epsilon)        self.attn = Attention_block(            dim,             num_heads=num_heads,             qkv_bias=qkv_bias,             qk_scale=qk_scale,             attn_drop=attn_drop,             proj_drop=drop        )        self.drop_path = DropPath(drop_path) if drop_path > 0. else Identity()        self.norm2 = norm_layer(dim, epsilon=epsilon)        mlp_hidden_dim = int(dim * mlp_ratio)        self.mlp = Mlp_block(            in_features=dim,             hidden_features=mlp_hidden_dim,             act_layer=act_layer,             drop=drop        )        self.gamma_1 = add_parameter(self, init_values * paddle.ones((dim,)))        self.gamma_2 = add_parameter(self, init_values * paddle.ones((dim,)))    def forward(self, x):        x = x + self.drop_path(self.gamma_1 * self.attn(self.norm1(x)))        x = x + self.drop_path(self.gamma_2 * self.mlp(self.norm2(x)))        return xclass CaiT(nn.Layer):    # with slight modifications to adapt to our cait models    def __init__(self, img_size=224, patch_size=16, in_chans=3, embed_dim=768, depth=12,                 num_heads=12, mlp_ratio=4, qkv_bias=True, qk_scale=None, drop_rate=0.,                 attn_drop_rate=0., drop_path_rate=0., norm_layer=nn.LayerNorm, epsilon=1e-6,                 block_layers=LayerScale_Block, block_layers_token=LayerScale_Block_CA,                 Patch_layer=PatchEmbed, act_layer=nn.GELU, Attention_block=Attention_talking_head,                 Mlp_block=Mlp, init_scale=1e-4, Attention_block_token_only=Class_Attention,                 Mlp_block_token_only=Mlp, depth_token_only=2, mlp_ratio_clstk=4.0, class_dim=1000):        super().__init__()        self.class_dim = class_dim        self.num_features = self.embed_dim = embed_dim        self.patch_embed = Patch_layer(            img_size=img_size,             patch_size=patch_size,             in_chans=in_chans,             embed_dim=embed_dim        )        num_patches = self.patch_embed.num_patches        self.cls_token = add_parameter(self, paddle.zeros((1, 1, embed_dim)))        self.pos_embed = add_parameter(self, paddle.zeros((1, num_patches, embed_dim)))        self.pos_drop = nn.Dropout(p=drop_rate)        dpr = [drop_path_rate for i in range(depth)]        self.blocks = nn.LayerList([            block_layers(                dim=embed_dim, num_heads=num_heads, mlp_ratio=mlp_ratio, qkv_bias=qkv_bias, qk_scale=qk_scale,                drop=drop_rate, attn_drop=attn_drop_rate, drop_path=dpr[i], norm_layer=norm_layer, epsilon=epsilon,                act_layer=act_layer, Attention_block=Attention_block, Mlp_block=Mlp_block, init_values=init_scale            ) for i in range(depth)        ])        self.blocks_token_only = nn.LayerList([            block_layers_token(                dim=embed_dim, num_heads=num_heads, mlp_ratio=mlp_ratio_clstk, qkv_bias=qkv_bias, qk_scale=qk_scale,                drop=0.0, attn_drop=0.0, drop_path=0.0, norm_layer=norm_layer, epsilon=epsilon, act_layer=act_layer,                 Attention_block=Attention_block_token_only, Mlp_block=Mlp_block_token_only, init_values=init_scale            ) for i in range(depth_token_only)        ])        self.norm = norm_layer(embed_dim, epsilon=epsilon)        # Classifier head        if class_dim > 0:            self.head = nn.Linear(embed_dim, class_dim)        trunc_normal_(self.pos_embed)        trunc_normal_(self.cls_token)        self.apply(self._init_weights)    def _init_weights(self, m):        if isinstance(m, nn.Linear):            trunc_normal_(m.weight)            if isinstance(m, nn.Linear) and m.bias is not None:                zeros_(m.bias)        elif isinstance(m, nn.LayerNorm):            zeros_(m.bias)            ones_(m.weight)    def forward_features(self, x):        B = x.shape[0]        x = self.patch_embed(x)        cls_tokens = self.cls_token.expand((B, -1, -1))        x = x + self.pos_embed        x = self.pos_drop(x)        for i, blk in enumerate(self.blocks):            x = blk(x)        for i, blk in enumerate(self.blocks_token_only):            cls_tokens = blk(x, cls_tokens)        x = paddle.concat((cls_tokens, x), axis=1)        x = self.norm(x)        return x[:, 0]    def forward(self, x):        x = self.forward_features(x)        if self.class_dim > 0:            x = self.head(x)        return x

/opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/paddle/fluid/layers/utils.py:26: DeprecationWarning: `np.int` is a deprecated alias for the builtin `int`. To silence this warning, use `int` by itself. Doing this will not modify any behavior and is safe. When replacing `np.int`, you may wish to use e.g. `np.int64` or `np.int32` to specify the precision. If you wish to review your current use, check the release note link for additional information.Deprecated in NumPy 1.20; for more details and guidance: https://numpy.org/devdocs/release/1.20.0-notes.html#deprecations  def convert_to_list(value, n, name, dtype=np.int):

预设模型

In [ ]

def cait_xxs_24(pretrained=False, **kwargs):    model = CaiT(        img_size=224, embed_dim=192, depth=24,        num_heads=4, init_scale=1e-5, **kwargs)    if pretrained:        params = paddle.load('data/data82724/CaiT_XXS24_224.pdparams')        model.set_dict(params)    return modeldef cait_xxs_36(pretrained=False, **kwargs):    model = CaiT(        img_size=224, embed_dim=192, depth=36,        num_heads=4, init_scale=1e-5, **kwargs)    if pretrained:        params = paddle.load('data/data82724/CaiT_XXS36_224.pdparams')        model.set_dict(params)            return modeldef cait_s_24(pretrained=False, **kwargs):    model = CaiT(        img_size=224, embed_dim=384, depth=24,        num_heads=8, init_scale=1e-5, **kwargs)    if pretrained:        params = paddle.load('data/data82724/CaiT_S24_224.pdparams')        model.set_dict(params)            return modeldef cait_xxs_24_384(pretrained=False, **kwargs):    model = CaiT(        img_size=384, embed_dim=192, depth=24,        num_heads=4, init_scale=1e-5, **kwargs)    if pretrained:        params = paddle.load('data/data82724/CaiT_XXS24_384.pdparams')        model.set_dict(params)            return modeldef cait_xxs_36_384(pretrained=False, **kwargs):    model = CaiT(        img_size=384, embed_dim=192, depth=36,        num_heads=4, init_scale=1e-5, **kwargs)    if pretrained:        params = paddle.load('data/data82724/CaiT_XXS36_384.pdparams')        model.set_dict(params)            return modeldef cait_xs_24_384(pretrained=False, **kwargs):    model = CaiT(        img_size=384, embed_dim=288, depth=24,        num_heads=6, init_scale=1e-5, **kwargs)    if pretrained:        params = paddle.load('data/data82724/CaiT_XS24_384.pdparams')        model.set_dict(params)            return modeldef cait_s_24_384(pretrained=False, **kwargs):    model = CaiT(        img_size=384, embed_dim=384, depth=24,        num_heads=8, init_scale=1e-5, **kwargs)    if pretrained:        params = paddle.load('data/data82724/CaiT_S24_384.pdparams')        model.set_dict(params)            return modeldef cait_s_36_384(pretrained=False, **kwargs):    model = CaiT(        img_size=384, embed_dim=384, depth=36,        num_heads=8, init_scale=1e-6, **kwargs)    if pretrained:        params = paddle.load('data/data82724/CaiT_S36_384.pdparams')        model.set_dict(params)            return modeldef cait_m_36_384(pretrained=False, **kwargs):    model = CaiT(        img_size=384, embed_dim=768, depth=36,        num_heads=16, init_scale=1e-6, **kwargs)    if pretrained:        params = paddle.load('data/data82724/CaiT_M36_384.pdparams')        model.set_dict(params)            return modeldef cait_m_48_448(pretrained=False, **kwargs):    model = CaiT(        img_size=448, embed_dim=768, depth=48,        num_heads=16, init_scale=1e-6, **kwargs)    if pretrained:        params = paddle.load('data/data82724/CaiT_M48_448.pdparams')        model.set_dict(params)            return model

模型测试

In [ ]

model = cait_xxs_24(True)random_input = paddle.randn((1, 3, 224, 224))out = model(random_input)print(out.shape)model.eval()out = model(random_input)print(out.shape)

[1, 1000][1, 1000]

精度验证

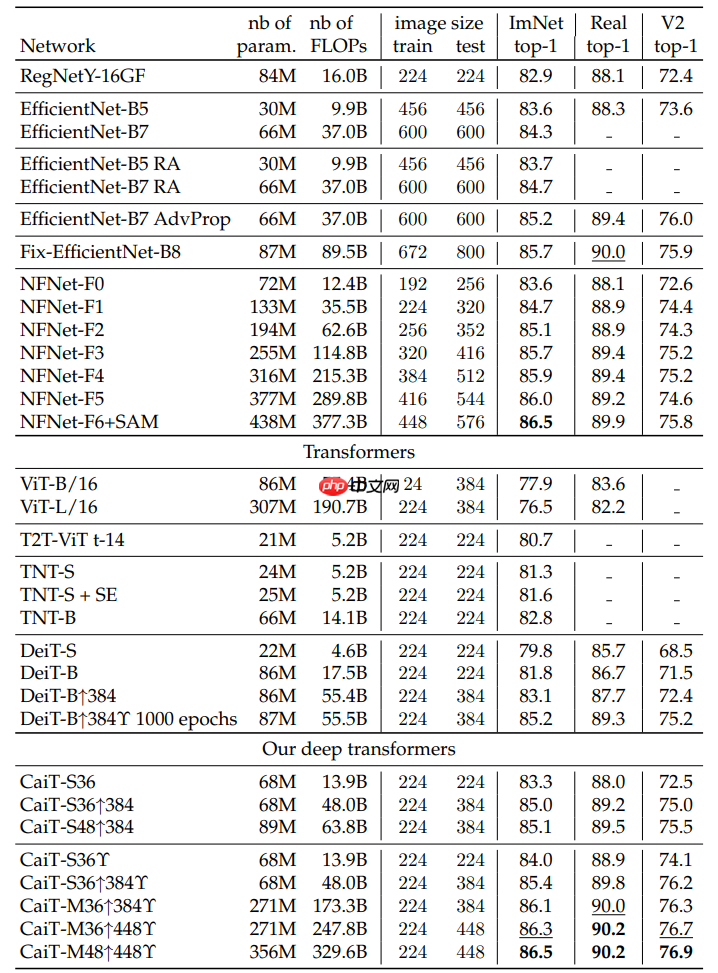

官方的论文标称精度如下：

解压数据集

In [ ]

!mkdir ~/data/ILSVRC2012!tar -xf ~/data/data68594/ILSVRC2012_img_val.tar -C ~/data/ILSVRC2012

模型验证

In [11]

import osimport cv2import numpy as npimport paddleimport paddle.vision.transforms as Tfrom PIL import Image# 构建数据集class ILSVRC2012(paddle.io.Dataset):    def __init__(self, root, label_list, transform, backend='pil'):        self.transform = transform        self.root = root        self.label_list = label_list        self.backend = backend        self.load_datas()    def load_datas(self):        self.imgs = []        self.labels = []        with open(self.label_list, 'r') as f:            for line in f:                img, label = line[:-1].split(' ')                self.imgs.append(os.path.join(self.root, img))                self.labels.append(int(label))    def __getitem__(self, idx):        label = self.labels[idx]        image = self.imgs[idx]        if self.backend=='cv2':            image = cv2.imread(image)        else:            image = Image.open(image).convert('RGB')        image = self.transform(image)        return image.astype('float32'), np.array(label).astype('int64')    def __len__(self):        return len(self.imgs)val_transforms = T.Compose([    T.Resize(448, interpolation='bicubic'),    T.CenterCrop(448),    T.ToTensor(),    T.Normalize(mean=[0.485, 0.456, 0.406], std=[0.229, 0.224, 0.225])])# 配置模型model = cait_m_48_448(pretrained=True)model = paddle.Model(model)model.prepare(metrics=paddle.metric.Accuracy(topk=(1, 5)))# 配置数据集val_dataset = ILSVRC2012('data/ILSVRC2012', transform=val_transforms, label_list='data/data68594/val_list.txt', backend='pil')# 模型验证acc = model.evaluate(val_dataset, batch_size=64, num_workers=0, verbose=1)print(acc)

{'acc_top1': 0.86492, 'acc_top5': 0.97752}
