浅析并实现 CycleMLP，一种用于密集预测的类 MLP 模型

CycleMLP是用于视觉识别和密集预测的通用主干，相较MLP Mixer等模型，能处理不同图像大小，以线性计算复杂度实现局部窗口操作。其核心是Cycle FC，结合并行算子与Channel MLP，有5种模型。在ImageNet – 1K和ADE20K上表现优异，参数和计算量更少。

☞☞☞AI 智能聊天, 问答助手, AI 智能搜索, 免费无限量使用 DeepSeek R1 模型☜☜☜

引入

最近各种用于视觉方向的 MLP 模型层出不穷，比如：MLP Mixer、ResMLP 和 gMLP 等等今天就来简单介绍一个刚刚开源的新工作 CycleMLP，一种全新的用于视觉识别和密集预测的通用主干

相关资料

论文：CycleMLP: A MLP-like Architecture for Dense Prediction官方实现：ShoufaChen/CycleMLP

主要贡献

本文提出了一种简单的类 MLP 结构 CycleMLP，它是视觉识别和密集预测的通用主干，不同于 Modern MLP 结构，如 MLP Mixer、ResMLP 和 gMLP，后者的结构与图像大小相关，因此在目标检测和分割中不可行。与 Modern MLP 的方法相比，CycleMLP 有两个优点：(1） 它可以处理不同的图像大小(2） 利用局部窗口实现了图像大小的线性计算复杂度。相比之下，以前的 MLP 由于其完全空间连接而具有二次计算。作者建立了一系列模型，这些模型超越了现有的 MLP，在 ImageNet-1K 分类任务上与最先进的 Vision Transformer 模型，如 Swin-Transformer（83.3%）相比具有相当的精度（83.2%），但模型的参数量和 FLOPs 较少。同时，作者扩展了类 MLP 模型的适用性，使其成为密集预测任务的通用主干。CycleMLP 旨在为 MLP 模型的目标检测、实例分割和语义分割提供一个有竞争力的基线。特别是，CycleMLP 在 ADE20K 验证集上达到了 45.1 mIoU，与 Swin-Transformer（45.2 mIoU）相当。

Motivation

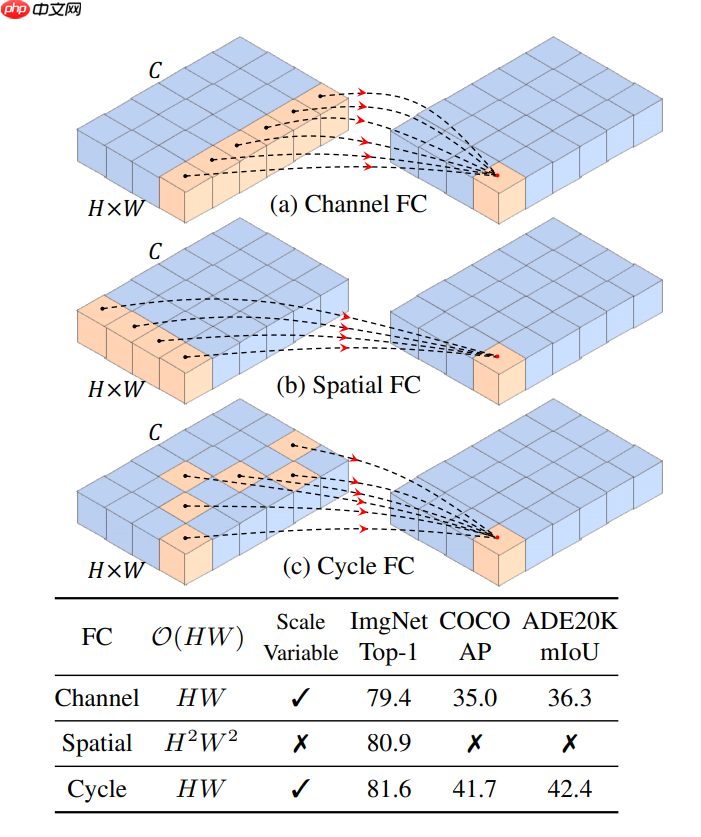

对比 Channel FC 和 Spatial FC：(a) Channel FC 在空间大小为 “1” 的通道维度中聚合要素。它处理各种输入尺度，但不能学习空间上下文。(b) Spatial FC 空间维度上有一个全球感受野。然而，它的参数大小是固定的，并且对于图像尺度具有二次计算复杂度。(c) Cycle FC 具有与 Channel FC 相同的线性复杂度，并且具有比 Channel FC 更大的感受野。

MLP block

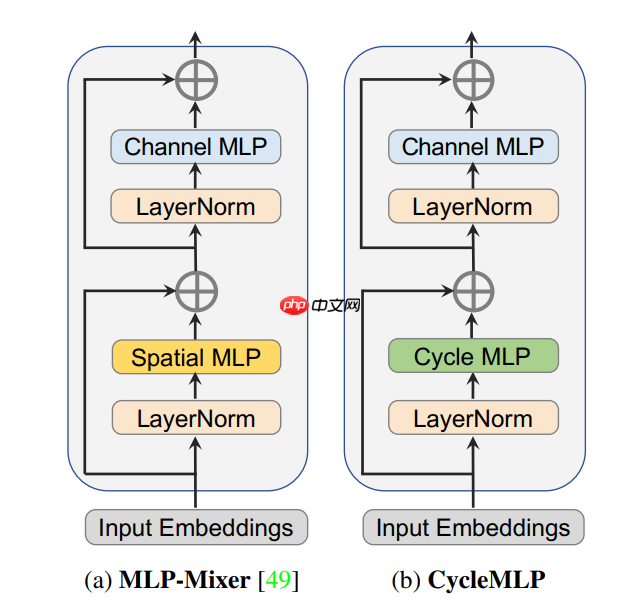

对比 MLP Mixer：(a) MLP Mixer 利用沿空间维度的 Spatial MLP 进行上下文聚合。当输入比例变化并且计算复杂度与图像尺寸成二次函数关系时，该算子不能工作。(b) CycleMLP 使用 Cycle FC 进行空间投影，它能够处理任意比例，并且具有线性复杂度

Cycle FC Block

Cycle FC Block 如上图（b）所示。与上图（a）所示的开创性 MLP-Mixer Block 相比，Cycle FC Block 的关键区别在于，它利用作者提出的 Cycle FC 进行空间投影，并在上下文聚合和信息通信方面推进了模型。具体来说，Cycle FC Block 由三个并行的 Cycle FC 算子组成，后面是一个具有两个线性层的 Channel MLP 和一个介于两者之间的 GELU 非线性激活函数。在并行 Cycle FC 层和 Channel MLP 模块之前应用一个层形式 LayeNorm 层，和每个模块之后应用残差连接。

Pseudo-Kernel

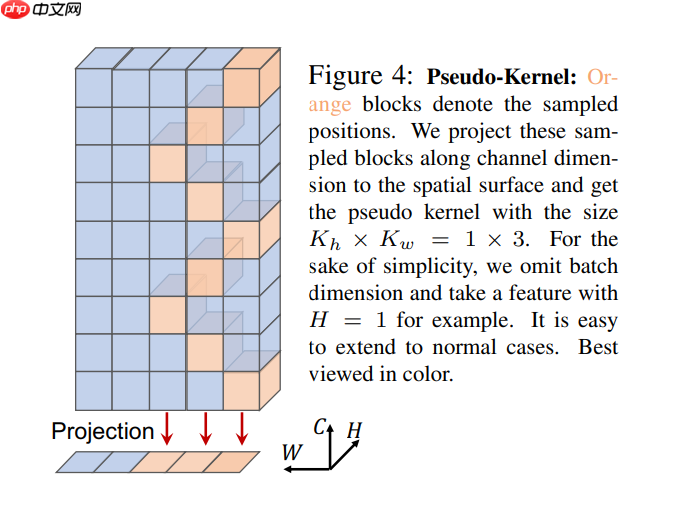

在 Cycle FC 中，作者引入了 Pseudo-Kernel 的概念。如下图所示，将 Cycle FC 的采样点(橙色块)投影到空间表面，并将投影区域定义为伪核大小。

爱图表

AI驱动的智能化图表创作平台

305 查看详情

模型架构

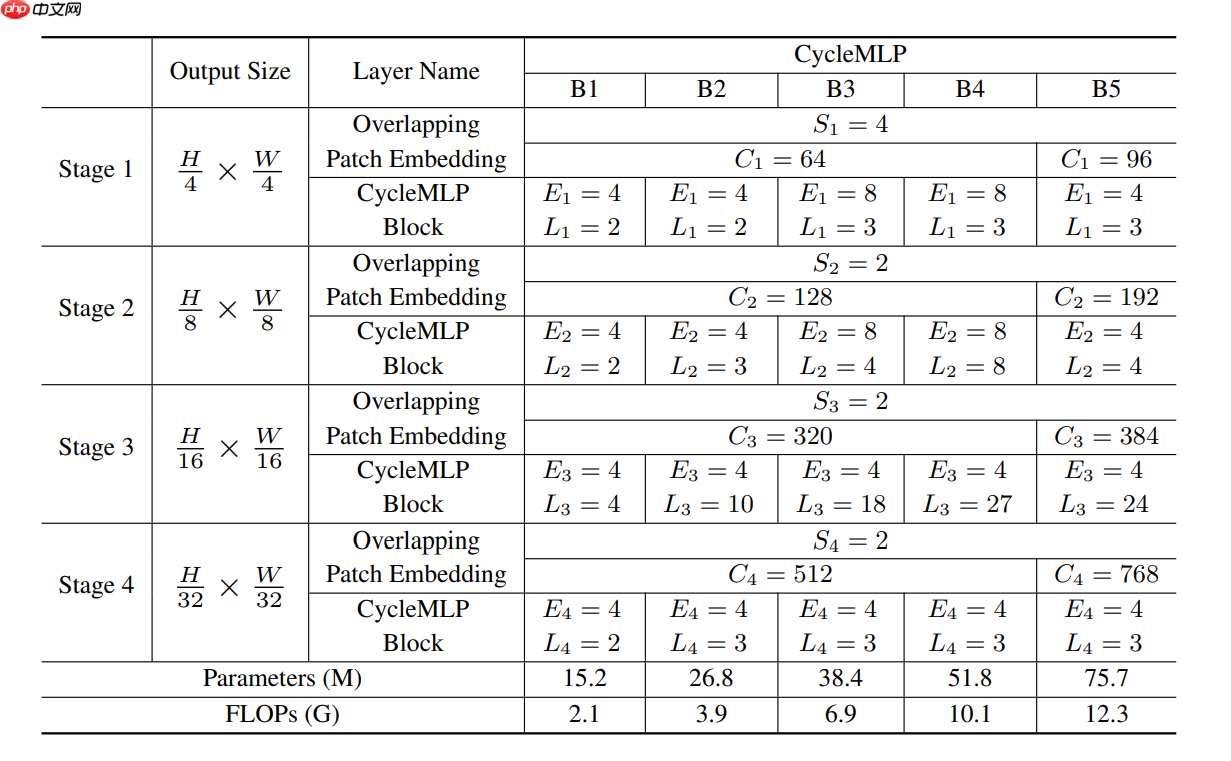

作者设计五个不同大小的 CycleMLP 模型，具体细节如下表所示：

精度表现

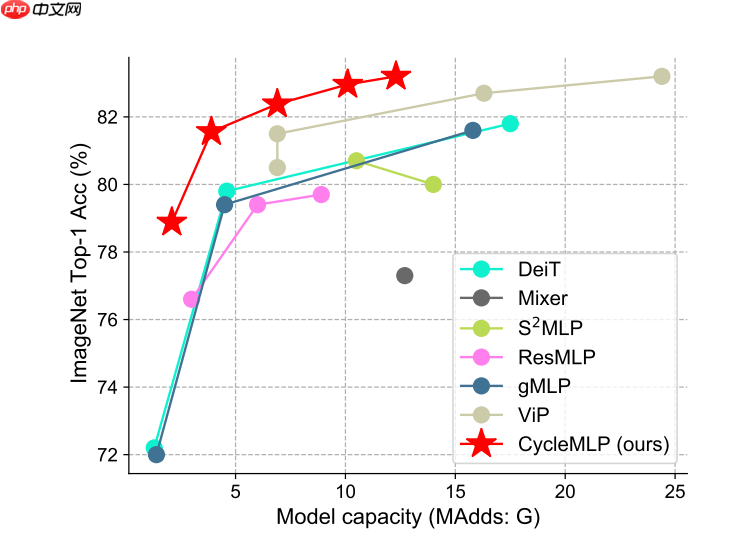

对比其他视觉 MLP 和 Transformers，CycleMLP 的模型精度如下图所示：

代码实现

更新 Paddle

由于一些奇奇怪怪的原因，需要先手动更新 Paddle 的版本In [1]

!pip install paddlepaddle-gpu==2.1.1.post101 -f https://paddlepaddle.org.cn/whl/mkl/stable.html

模型搭建

In [2]

import osimport mathimport paddleimport paddle.nn as nnfrom common import DropPath, Identityfrom common import add_parameter, _calculate_fan_in_and_fan_out, to_2tuplefrom common import zeros_, ones_, trunc_normal_from paddle.vision.ops import deform_conv2dfrom paddle.nn.initializer import Uniform, KaimingNormal class Mlp(nn.Layer):    def __init__(self, in_features, hidden_features=None, out_features=None, act_layer=nn.GELU, drop=0.):        super().__init__()        out_features = out_features or in_features        hidden_features = hidden_features or in_features        self.fc1 = nn.Linear(in_features, hidden_features)        self.act = act_layer()        self.fc2 = nn.Linear(hidden_features, out_features)        self.drop = nn.Dropout(drop)    def forward(self, x):        x = self.fc1(x)        x = self.act(x)        x = self.drop(x)        x = self.fc2(x)        x = self.drop(x)        return xclass CycleFC(nn.Layer):    def __init__(        self,        in_channels: int,        out_channels: int,        kernel_size,  # re-defined kernel_size, represent the spatial area of staircase FC        stride: int = 1,        padding: int = 0,        dilation: int = 1,        groups: int = 1,        bias: bool = True,    ):        super(CycleFC, self).__init__()        if in_channels % groups != 0:            raise ValueError('in_channels must be divisible by groups')        if out_channels % groups != 0:            raise ValueError('out_channels must be divisible by groups')        if stride != 1:            raise ValueError('stride must be 1')        if padding != 0:            raise ValueError('padding must be 0')        self.in_channels = in_channels        self.out_channels = out_channels        self.kernel_size = kernel_size        self.stride = to_2tuple(stride)        self.padding = to_2tuple(padding)        self.dilation = to_2tuple(dilation)        self.groups = groups        self.weight = add_parameter(self, paddle.empty((out_channels, in_channels // groups, 1, 1)))  # kernel size == 1        if bias:            self.bias = add_parameter(self, paddle.empty((out_channels,)))        else:            self.add_parameter('bias', None)        self.register_buffer('offset', self.gen_offset())        self.reset_parameters()    def reset_parameters(self) -> None:        KaimingNormal(self.weight)        if self.bias is not None:            fan_in, _ = _calculate_fan_in_and_fan_out(self.weight)            bound = 1 / math.sqrt(fan_in)            Uniform(low=-bound, high=bound)(self.bias)    def gen_offset(self):        """        offset (Tensor[batch_size, 2 * offset_groups * kernel_height * kernel_width,            out_height, out_width]): offsets to be applied for each position in the            convolution kernel.        """        offset = paddle.empty((1, self.in_channels*2, 1, 1))        start_idx = (self.kernel_size[0] * self.kernel_size[1]) // 2        assert self.kernel_size[0] == 1 or self.kernel_size[1] == 1, self.kernel_size        for i in range(self.in_channels):            if self.kernel_size[0] == 1:                offset[0, 2 * i + 0, 0, 0] = 0                offset[0, 2 * i + 1, 0, 0] = (i + start_idx) % self.kernel_size[1] - (self.kernel_size[1] // 2)            else:                offset[0, 2 * i + 0, 0, 0] = (i + start_idx) % self.kernel_size[0] - (self.kernel_size[0] // 2)                offset[0, 2 * i + 1, 0, 0] = 0        return offset    def forward(self, input):        """        Args:            input (Tensor[batch_size, in_channels, in_height, in_width]): input tensor        """        B, C, H, W = input.shape        return deform_conv2d(input, self.offset.expand((B, -1, H, W)), self.weight, self.bias, stride=self.stride,                                padding=self.padding, dilation=self.dilation, deformable_groups=self.in_channels)class CycleMLP(nn.Layer):    def __init__(self, dim, qkv_bias=False, qk_scale=None, attn_drop=0., proj_drop=0.):        super().__init__()        self.mlp_c = nn.Linear(dim, dim, bias_attr=qkv_bias)        self.sfc_h = CycleFC(dim, dim, (1, 3), 1, 0)        self.sfc_w = CycleFC(dim, dim, (3, 1), 1, 0)        self.reweight = Mlp(dim, dim // 4, dim * 3)        self.proj = nn.Linear(dim, dim)        self.proj_drop = nn.Dropout(proj_drop)    def forward(self, x):        B, H, W, C = x.shape        h = self.sfc_h(x.transpose((0, 3, 1, 2))).transpose((0, 2, 3, 1))        w = self.sfc_w(x.transpose((0, 3, 1, 2))).transpose((0, 2, 3, 1))        c = self.mlp_c(x)        a = (h + w + c).transpose((0, 3, 1, 2)).flatten(2).mean(2)        a = nn.functional.softmax(self.reweight(a).reshape((B, C, 3)).transpose((2, 0, 1)), axis=0).unsqueeze(2).unsqueeze(2)        x = h * a[0] + w * a[1] + c * a[2]        x = self.proj(x)        x = self.proj_drop(x)        return xclass CycleBlock(nn.Layer):    def __init__(self, dim, mlp_ratio=4., qkv_bias=False, qk_scale=None, drop=0., attn_drop=0.,                drop_path=0., act_layer=nn.GELU, norm_layer=nn.LayerNorm, skip_lam=1.0, mlp_fn=CycleMLP):        super().__init__()        self.norm1 = norm_layer(dim)        self.attn = mlp_fn(dim, qkv_bias=qkv_bias, qk_scale=None, attn_drop=attn_drop)        # NOTE: drop path for stochastic depth, we shall see if this is better than dropout here        self.drop_path = DropPath(drop_path) if drop_path > 0. else Identity()        self.norm2 = norm_layer(dim)        mlp_hidden_dim = int(dim * mlp_ratio)        self.mlp = Mlp(in_features=dim, hidden_features=mlp_hidden_dim, act_layer=act_layer)        self.skip_lam = skip_lam    def forward(self, x):        x = x + self.drop_path(self.attn(self.norm1(x))) / self.skip_lam        x = x + self.drop_path(self.mlp(self.norm2(x))) / self.skip_lam        return xclass PatchEmbedOverlapping(nn.Layer):    """ 2D Image to Patch Embedding with overlapping    """    def __init__(self, patch_size=16, stride=16, padding=0, in_chans=3, embed_dim=768, norm_layer=None, groups=1):        super().__init__()        patch_size = to_2tuple(patch_size)        stride = to_2tuple(stride)        padding = to_2tuple(padding)        self.patch_size = patch_size        # remove image_size in model init to support dynamic image size        self.proj = nn.Conv2D(in_chans, embed_dim, kernel_size=patch_size, stride=stride, padding=padding, groups=groups)        self.norm = norm_layer(embed_dim) if norm_layer else Identity()    def forward(self, x):        x = self.proj(x)        return xclass Downsample(nn.Layer):    """ Downsample transition stage    """    def __init__(self, in_embed_dim, out_embed_dim, patch_size):        super().__init__()        assert patch_size == 2, patch_size        self.proj = nn.Conv2D(in_embed_dim, out_embed_dim, kernel_size=(3, 3), stride=(2, 2), padding=1)    def forward(self, x):        x = x.transpose((0, 3, 1, 2))        x = self.proj(x)  # B, C, H, W        x = x.transpose((0, 2, 3, 1))        return xdef basic_blocks(dim, index, layers, mlp_ratio=3., qkv_bias=False, qk_scale=None, attn_drop=0.,                drop_path_rate=0., skip_lam=1.0, mlp_fn=CycleMLP, **kwargs):    blocks = []    for block_idx in range(layers[index]):        block_dpr = drop_path_rate * (block_idx + sum(layers[:index])) / (sum(layers) - 1)        blocks.append(CycleBlock(dim, mlp_ratio=mlp_ratio, qkv_bias=qkv_bias, qk_scale=qk_scale,                    attn_drop=attn_drop, drop_path=block_dpr, skip_lam=skip_lam, mlp_fn=mlp_fn))    blocks = nn.Sequential(*blocks)    return blocksclass CycleNet(nn.Layer):    """ CycleMLP Network """    def __init__(self, layers, img_size=224, patch_size=4, in_chans=3, num_classes=1000,        embed_dims=None, transitions=None, segment_dim=None, mlp_ratios=None, skip_lam=1.0,        qkv_bias=False, qk_scale=None, drop_rate=0., attn_drop_rate=0., drop_path_rate=0.,        norm_layer=nn.LayerNorm, mlp_fn=CycleMLP, fork_feat=False):        super().__init__()        if not fork_feat:            self.num_classes = num_classes        self.fork_feat = fork_feat        self.patch_embed = PatchEmbedOverlapping(patch_size=7, stride=4, padding=2, in_chans=3, embed_dim=embed_dims[0])        network = []        for i in range(len(layers)):            stage = basic_blocks(embed_dims[i], i, layers, mlp_ratio=mlp_ratios[i], qkv_bias=qkv_bias,                                qk_scale=qk_scale, attn_drop=attn_drop_rate, drop_path_rate=drop_path_rate,                                norm_layer=norm_layer, skip_lam=skip_lam, mlp_fn=mlp_fn)            network.append(stage)            if i >= len(layers) - 1:                break            if transitions[i] or embed_dims[i] != embed_dims[i+1]:                patch_size = 2 if transitions[i] else 1                network.append(Downsample(embed_dims[i], embed_dims[i+1], patch_size))        self.network = nn.LayerList(network)        if self.fork_feat:            # add a norm layer for each output            self.out_indices = [0, 2, 4, 6]            for i_emb, i_layer in enumerate(self.out_indices):                if i_emb == 0 and os.environ.get('FORK_LAST3', None):                    # TODO: more elegant way                    """For RetinaNet, `start_level=1`. The first norm layer will not used.                    cmd: `FORK_LAST3=1 python -m torch.distributed.launch ...`                    """                    layer = Identity()                else:                    layer = norm_layer(embed_dims[i_emb])                layer_name = f'norm{i_layer}'                self.add_module(layer_name, layer)        else:            # Classifier head            self.norm = norm_layer(embed_dims[-1])            self.head = nn.Linear(embed_dims[-1], num_classes) if num_classes > 0 else Identity()        self.apply(self.cls_init_weights)    def cls_init_weights(self, m):        if isinstance(m, nn.Linear):            trunc_normal_(m.weight)            if isinstance(m, nn.Linear) and m.bias is not None:                zeros_(m.bias)        elif isinstance(m, nn.LayerNorm):            zeros_(m.bias)            ones_(m.weight)        elif isinstance(m, CycleFC):            trunc_normal_(m.weight)            zeros_(m.bias)    def forward_embeddings(self, x):        x = self.patch_embed(x)        # B,C,H,W-> B,H,W,C        x = x.transpose((0, 2, 3, 1))        return x    def forward_tokens(self, x):        outs = []        for idx, block in enumerate(self.network):            x = block(x)            if self.fork_feat and idx in self.out_indices:                norm_layer = getattr(self, f'norm{idx}')                x_out = norm_layer(x)                outs.append(x_out.transpose((0, 3, 1, 2)))        if self.fork_feat:            return outs        B, H, W, C = x.shape        x = x.reshape((B, -1, C))        return x    def forward(self, x):        x = self.forward_embeddings(x)        # B, H, W, C -> B, N, C        x = self.forward_tokens(x)        if self.fork_feat:            return x        x = self.norm(x)        cls_out = self.head(x.mean(1))        return cls_out

预设模型

In [3]

def CycleMLP_B1(pretrained=False, **kwargs):    transitions = [True, True, True, True]    layers = [2, 2, 4, 2]    mlp_ratios = [4, 4, 4, 4]    embed_dims = [64, 128, 320, 512]    model = CycleNet(layers, embed_dims=embed_dims, patch_size=7, transitions=transitions,                    mlp_ratios=mlp_ratios, mlp_fn=CycleMLP, **kwargs)    if pretrained:        params = paddle.load('data/data101687/CycleMLP_B1.pdparams')        model.set_dict(params)    return modeldef CycleMLP_B2(pretrained=False, **kwargs):    transitions = [True, True, True, True]    layers = [2, 3, 10, 3]    mlp_ratios = [4, 4, 4, 4]    embed_dims = [64, 128, 320, 512]    model = CycleNet(layers, embed_dims=embed_dims, patch_size=7, transitions=transitions,                    mlp_ratios=mlp_ratios, mlp_fn=CycleMLP, **kwargs)    if pretrained:        params = paddle.load('data/data101687/CycleMLP_B2.pdparams')        model.set_dict(params)    return modeldef CycleMLP_B3(pretrained=False, **kwargs):    transitions = [True, True, True, True]    layers = [3, 4, 18, 3]    mlp_ratios = [8, 8, 4, 4]    embed_dims = [64, 128, 320, 512]    model = CycleNet(layers, embed_dims=embed_dims, patch_size=7, transitions=transitions,                    mlp_ratios=mlp_ratios, mlp_fn=CycleMLP, **kwargs)    if pretrained:        params = paddle.load('data/data101687/CycleMLP_B3.pdparams')        model.set_dict(params)    return modeldef CycleMLP_B4(pretrained=False, **kwargs):    transitions = [True, True, True, True]    layers = [3, 8, 27, 3]    mlp_ratios = [8, 8, 4, 4]    embed_dims = [64, 128, 320, 512]    model = CycleNet(layers, embed_dims=embed_dims, patch_size=7, transitions=transitions,                    mlp_ratios=mlp_ratios, mlp_fn=CycleMLP, **kwargs)    if pretrained:        params = paddle.load('data/data101687/CycleMLP_B4.pdparams')        model.set_dict(params)    return modeldef CycleMLP_B5(pretrained=False, **kwargs):    transitions = [True, True, True, True]    layers = [3, 4, 24, 3]    mlp_ratios = [4, 4, 4, 4]    embed_dims = [96, 192, 384, 768]    model = CycleNet(layers, embed_dims=embed_dims, patch_size=7, transitions=transitions,                    mlp_ratios=mlp_ratios, mlp_fn=CycleMLP, **kwargs)    if pretrained:        params = paddle.load('data/data101687/CycleMLP_B5.pdparams')        model.set_dict(params)    return model

模型测试

In [4]

model = CycleMLP_B1(pretrained=True)x = paddle.randn((1, 3, 224, 224))out = model(x)print(out.shape)model.eval()out = model(x)print(out.shape)

[1, 1000][1, 1000]

精度测试

标称精度

官方开源项目中的标称精度如下表所示：

CycleMLP-B115M2.1G78.9%CycleMLP-B227M3.9G81.6%CycleMLP-B338M6.9G82.4%CycleMLP-B452M10.1G83.0%CycleMLP-B576M12.3G83.2%

解压数据集

解压 ImageNet-1k 的验证集In [5]

!mkdir ~/data/ILSVRC2012!tar -xf ~/data/data68594/ILSVRC2012_img_val.tar -C ~/data/ILSVRC2012

模型验证

由于高层 API 的代码在 AIStudio + Paddle 2.1.0 环境中会崩溃，所以这里就运行不了了In [7]

import osimport cv2import numpy as npimport paddleimport paddle.vision.transforms as Tfrom PIL import Image# 构建数据集class ILSVRC2012(paddle.io.Dataset):    def __init__(self, root, label_list, transform, backend='pil'):        self.transform = transform        self.root = root        self.label_list = label_list        self.backend = backend        self.load_datas()    def load_datas(self):        self.imgs = []        self.labels = []        with open(self.label_list, 'r') as f:            for line in f:                img, label = line[:-1].split(' ')                self.imgs.append(os.path.join(self.root, img))                self.labels.append(int(label))    def __getitem__(self, idx):        label = self.labels[idx]        image = self.imgs[idx]        if self.backend=='cv2':            image = cv2.imread(image)        else:            image = Image.open(image).convert('RGB')        image = self.transform(image)        return image.astype('float32'), np.array(label).astype('int64')    def __len__(self):        return len(self.imgs)val_transforms = T.Compose([    T.Resize(248, interpolation='bicubic'),    T.CenterCrop(224),    T.ToTensor(),    T.Normalize(mean=[0.485, 0.456, 0.406], std=[0.229, 0.224, 0.225])])# 配置模型model = CycleMLP_B1(pretrained=True)model = paddle.Model(model)model.prepare(metrics=paddle.metric.Accuracy(topk=(1, 5)))# 配置数据集val_dataset = ILSVRC2012('data/ILSVRC2012', transform=val_transforms, label_list='data/data68594/val_list.txt', backend='pil')# 模型验证acc = model.evaluate(val_dataset, batch_size=8, num_workers=0, verbose=1)print(acc)

{'acc_top1': 0.78848, 'acc_top5': 0.94604}

总结

CycleMLP 是一种全新的能够用于密集预测的视觉 MLP 模型，更加适用于目标检测或者图像分割任务中在精度表现上，相比以往的 MLP 模型也有了进一步的提升。
