详细介绍MySQL Group Replication[Multi-Primary Mode]的搭建部署过程（图文）

1，关于MySQL Group Replication

基于组的复制（group-basedreplication）是一种被使用在容错系统中的技术。replication-group（复制组）是由能够相互通信的多个服务器（节点）组成的。

在通信层，Groupreplication实现了一系列的机制：比如原子消息（atomicmessage delivery）和全序化消息（totalorderingof messages）。这些原子化，抽象化的机制，为实现更先进的数据库复制方案提供了强有力的支持。

MySQL Group Replication正是基于这些技术和概念，实现了一种多主全更新的复制协议。

简而言之，一个Replication-group就是一组节点，每个节点都可以独立执行事务，而读写事务则会在于group内的其他节点进行协调之后再commit。

因此，当一个事务准备提交时，会自动在group内进行原子性的广播，告知其他节点变更了什么内容/执行了什么事务。

这种原子广播的方式，使得这个事务在每一个节点上都保持着同样顺序。

这意味着每一个节点都以同样的顺序，接收到了同样的事务日志，所以每一个节点以同样的顺序重演了这些事务日志，最终整个group保持了完全一致的状态。

然而，不同的节点上执行的事务之间有可能存在资源争用。这种现象容易出现在两个不同的并发事务上。

假设在不同的节点上有两个并发事务，更新了同一行数据，那么就会发生资源争用。

面对这种情况，GroupReplication判定先提交的事务为有效事务，会在整个group里面重演，后提交的事务会直接中断，或者回滚，最后丢弃掉。

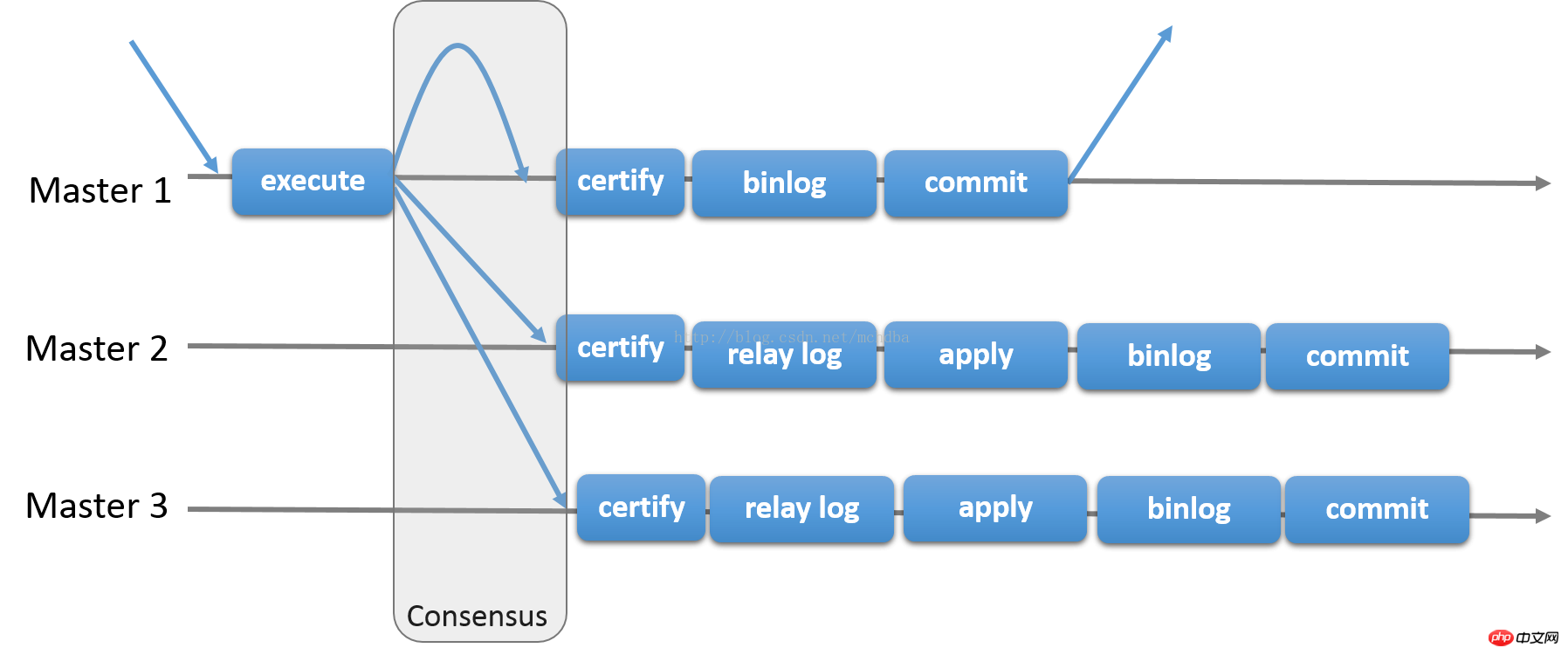

因此，这也是一个无共享的复制方案，每一个节点都保存了完整的数据副本。看如下图片01.png，描述了具体的工作流程，能够简洁的和其他方案进行对比。这个复制方案，在某种程度上，和数据库状态机（DBSM）的Replication方法比较类似。

2，安装mysql 5.7.17

官方下载，不过官方只保留最新的version，5.7.17这个url地址不一定长期有效，所以，需要的不一定有，我这里在百度云盘保留了下来，版本是5.7.17，可以随时去下载使用，

 在三台db服务器上面设置/etc/hosts映射，如下：

192.168.121.71    db1                                                                                                            192.168.121.111    db2192.168.121.24    db3

安装的数据库服务器：

数据库服务器地址

端口

数据目录

Server-id

192.168.121.71（db1）

3317

/data/mysql/data

12001

192.168.121.111（db2）

3317

/data/mysql/data

12002

192.168.121.24（db3）

3317

/data/mysql/data

12003

3，创建复制环境

设置hostname和ip映射

在db1、db2、db3上都设置

@@######@@

在db1/db2/db3上建立复制账号：

vim /etc/hosts192.168.121.71 db1 hch_test_dbm2_121_71                                           192.168.121.111 db2 bpe_service192.168.121.24 db3 hch_test_web_1_24

4，安装group replication插件

在db1、db2、db3上依次安装group replication插件

mysql> SET SQL_LOG_BIN=0;Query OK, 0 rows affected (0.00 sec) mysql>mysql> GRANT REPLICATION SLAVE ON *.*  TO 'repl'@'192.168.%' IDENTIFIED BY 'rlpbright_1927@ys';Query OK, 0 rows affected, 1 warning  (0.00 sec) mysql>  mysql> SET SQL_LOG_BIN=1;Query OK, 0 rows affected (0.00 sec) mysql>

plugin-load=group_replication或者直接在配置文件my.cnf中配置：

查看group replication组件

mysql> INSTALL PLUGIN group_replication  SONAME 'group_replication.so';                         Query OK, 0 rows affected (0.01 sec) mysql>

看到有group_replication ACTIVE，表示插group_replication插件安装成功。

5，配置group replication参数

确保binlog_format是row格式。

mysql> show plugins;                                                                                                        +----------------------------+----------+--------------------+----------------------+---------+| Name                       | Status   | Type               | Library              | License |+----------------------------+----------+--------------------+----------------------+---------+| binlog                     | ACTIVE   | STORAGE ENGINE     | NULL                 | GPL     || mysql_native_password      | ACTIVE   | AUTHENTICATION     | NULL                 | GPL     || sha256_password            | ACTIVE   | AUTHENTICATION     | NULL                 | GPL     || MyISAM                     | ACTIVE   | STORAGE ENGINE     | NULL                 | GPL     || PERFORMANCE_SCHEMA         | ACTIVE   | STORAGE ENGINE     | NULL                 | GPL     || InnoDB                     | ACTIVE   | STORAGE ENGINE     | NULL                 | GPL     || INNODB_TRX                 | ACTIVE   | INFORMATION SCHEMA | NULL                 | GPL     || INNODB_LOCKS               | ACTIVE   | INFORMATION SCHEMA | NULL                 | GPL     || INNODB_LOCK_WAITS          | ACTIVE   | INFORMATION SCHEMA | NULL                 | GPL     || INNODB_CMP                 | ACTIVE   | INFORMATION SCHEMA | NULL                 | GPL     || INNODB_CMP_RESET           | ACTIVE   | INFORMATION SCHEMA | NULL                 | GPL     || INNODB_CMPMEM              | ACTIVE   | INFORMATION SCHEMA | NULL                 | GPL     || INNODB_CMPMEM_RESET        | ACTIVE   | INFORMATION SCHEMA | NULL                 | GPL     || INNODB_CMP_PER_INDEX       | ACTIVE   | INFORMATION SCHEMA | NULL                 | GPL     || INNODB_CMP_PER_INDEX_RESET | ACTIVE   | INFORMATION SCHEMA | NULL                 | GPL     || INNODB_BUFFER_PAGE         | ACTIVE   | INFORMATION SCHEMA | NULL                 | GPL     || INNODB_BUFFER_PAGE_LRU     | ACTIVE   | INFORMATION SCHEMA | NULL                 | GPL     || INNODB_BUFFER_POOL_STATS   | ACTIVE   | INFORMATION SCHEMA | NULL                 | GPL     || INNODB_TEMP_TABLE_INFO     | ACTIVE   | INFORMATION SCHEMA | NULL                 | GPL     || INNODB_METRICS             | ACTIVE   | INFORMATION SCHEMA | NULL                 | GPL     || INNODB_FT_DEFAULT_STOPWORD | ACTIVE   | INFORMATION SCHEMA | NULL                 | GPL     || INNODB_FT_DELETED          | ACTIVE   | INFORMATION SCHEMA | NULL                 | GPL     || INNODB_FT_BEING_DELETED    | ACTIVE   | INFORMATION SCHEMA | NULL                 | GPL     || INNODB_FT_CONFIG           | ACTIVE   | INFORMATION SCHEMA | NULL                 | GPL     || INNODB_FT_INDEX_CACHE      | ACTIVE   | INFORMATION SCHEMA | NULL                 | GPL     || INNODB_FT_INDEX_TABLE      | ACTIVE   | INFORMATION SCHEMA | NULL                 | GPL     || INNODB_SYS_TABLES          | ACTIVE   | INFORMATION SCHEMA | NULL                 | GPL     || INNODB_SYS_TABLESTATS      | ACTIVE   | INFORMATION SCHEMA | NULL                 | GPL     || INNODB_SYS_INDEXES         | ACTIVE   | INFORMATION SCHEMA | NULL                 | GPL     || INNODB_SYS_COLUMNS         | ACTIVE   | INFORMATION SCHEMA | NULL                 | GPL     || INNODB_SYS_FIELDS          | ACTIVE   | INFORMATION SCHEMA | NULL                 | GPL     || INNODB_SYS_FOREIGN         | ACTIVE   | INFORMATION SCHEMA | NULL                 | GPL     || INNODB_SYS_FOREIGN_COLS    | ACTIVE   | INFORMATION SCHEMA | NULL                 | GPL     || INNODB_SYS_TABLESPACES     | ACTIVE   | INFORMATION SCHEMA | NULL                 | GPL     || INNODB_SYS_DATAFILES       | ACTIVE   | INFORMATION SCHEMA | NULL                 | GPL     || INNODB_SYS_VIRTUAL         | ACTIVE   | INFORMATION SCHEMA | NULL                 | GPL     || MRG_MYISAM                 | ACTIVE   | STORAGE ENGINE     | NULL                 | GPL     || MEMORY                     | ACTIVE   | STORAGE ENGINE     | NULL                 | GPL     || CSV                        | ACTIVE   | STORAGE ENGINE     | NULL                 | GPL     || BLACKHOLE                  | ACTIVE   | STORAGE ENGINE     | NULL                 | GPL     || partition                  | ACTIVE   | STORAGE ENGINE     | NULL                 | GPL     || FEDERATED                  | DISABLED | STORAGE ENGINE     | NULL                 | GPL     || ARCHIVE                    | ACTIVE   | STORAGE ENGINE     | NULL                 | GPL     || ngram                      | ACTIVE   | FTPARSER           | NULL                 | GPL     || group_replication          | ACTIVE   | GROUP REPLICATION  | group_replication.so | GPL     |+----------------------------+----------+--------------------+----------------------+---------+45 rows in set (0.00 sec) mysql>

两种配置方式，在线添加 OR 配置文件

mysql> show variables like 'binlog_format';                                             +---------------+-------+| Variable_name | Value |+---------------+-------+| binlog_format | ROW   |+---------------+-------+1 row in set (0.00 sec) mysql>

配置完后，重启3个db上的mysql服务

Db1启动：

（1） db1上的my.cnf配置：# replication configserver_id=12001gtid_mode=ONenforce_gtid_consistency=ONmaster_info_repository=TABLErelay_log_info_repository=TABLEbinlog_checksum=NONElog_slave_updates=ONlog_bin=binlogbinlog_format=ROW # group replication configtransaction_write_set_extraction=XXHASH64loose-group_replication_group_name="e4668cea-d7ca-11e6-86b5-18a99b76310d"                        loose-group_replication_start_on_boot=offloose-group_replication_local_address= "db1:24901"loose-group_replication_group_seeds=  "db1:24901,db2:24902,db3:24903"loose-group_replication_bootstrap_group=  offloose-group_replication_single_primary_mode=FALSEloose-group_replication_enforce_update_everywhere_checks=  TRUE （2）db2上的my.cnf配置：# replication configserver_id=12002gtid_mode=ONenforce_gtid_consistency=ONmaster_info_repository=TABLErelay_log_info_repository=TABLEbinlog_checksum=NONElog_slave_updates=ONlog_bin=binlogbinlog_format=ROW # group replication configtransaction_write_set_extraction=XXHASH64loose-group_replication_group_name="e4668cea-d7ca-11e6-86b5-18a99b76310d"loose-group_replication_start_on_boot=offloose-group_replication_local_address= "db2:24902"loose-group_replication_group_seeds=  "db1:24901,db2:24902,db3:24903"loose-group_replication_bootstrap_group=  offloose-group_replication_single_primary_mode=FALSEloose-group_replication_enforce_update_everywhere_checks=  TRUE  （3）db3上的my.cnf配置：# replication configserver_id=12003gtid_mode=ONenforce_gtid_consistency=ONmaster_info_repository=TABLErelay_log_info_repository=TABLEbinlog_checksum=NONElog_slave_updates=ONlog_bin=binlogbinlog_format=ROW # group replication configtransaction_write_set_extraction=XXHASH64loose-group_replication_group_name="e4668cea-d7ca-11e6-86b5-18a99b76310d"loose-group_replication_start_on_boot=offloose-group_replication_local_address= "db3:24903"loose-group_replication_group_seeds=  "db1:24901,db2:24902,db3:24903"loose-group_replication_bootstrap_group=  offloose-group_replication_single_primary_mode=FALSEloose-group_replication_enforce_update_everywhere_checks=  TRUE

Db2启动：

[root@hch_test_dbm2_121_71 ~]# service  mysqld start                                     Starting MySQL..                                           [确定][root@hch_test_dbm2_121_71 ~]#

Db3启动：

[root@bpe_service ~]# service mysqld  startStarting MySQL..                                           [确定]                                                     [root@bpe_service ~]#

6，启动mgr集群

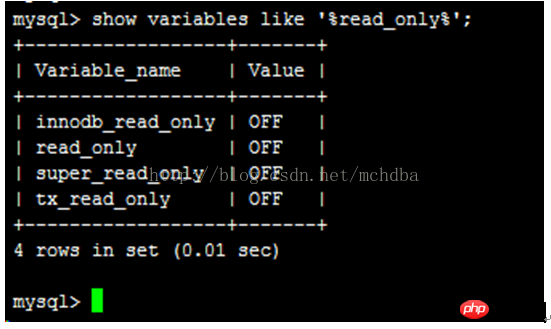

构建之前，保证db1、db2、db3的read_only是关闭的

开始构建group replication集群，通常操作命令

[root@hch_test_web_1_24 ~]# service  mysqld start                                            Starting MySQL..                                           [确定][root@hch_test_web_1_24 ~]#

db1上建立基本主库master库：

# 设置group_replication_bootstrap_group为ON是为了标示以后加入集群的服务器以这台服务器为基准，以后加入的就不需要设置。

小艺

华为公司推出的AI智能助手

549 查看详情

mysql>   CHANGE MASTER TO MASTER_USER='repl',  MASTER_PASSWORD='rlpbright_1927@ys' FOR CHANNEL 'group_replication_recovery';Query OK, 0 rows affected, 2 warnings  (0.02 sec) mysql>

Db2上启动group_replication：

Db2上mysql命令行上执行启动：

mysql> SET GLOBAL group_replication_bootstrap_group = ON;Query OK, 0 rows affected (0.00 sec) mysql>  START GROUP_REPLICATION;Query OK, 0 rows affected (1.03 sec) mysql> SET GLOBAL group_replication_bootstrap_group=OFF;Query OK, 0 rows affected (0.00 sec) mysql>mysql>  SELECT * FROM performance_schema.replication_group_members;+---------------------------+--------------------------------------+----------------------+-------------+--------------+| CHANNEL_NAME              | MEMBER_ID    | MEMBER_HOST          | MEMBER_PORT | MEMBER_STATE |+---------------------------+--------------------------------------+----------------------+-------------+--------------+| group_replication_applier | 3381d155-d7d1-11e6-94f7-b8ca3af6e36c | hch_test_dbm2_121_71 |        3317 | ONLINE      |+---------------------------+--------------------------------------+----------------------+-------------+--------------+1 row in set (0.00 sec) mysql>

db1后台error log日志显示，看到db2加入进来了，进了group：

mysql>   START GROUP_REPLICATION;Query OK, 0 rows affected (1.02 sec) mysql>

再去master库db1上，查看group_replication成员，会有db2的显示，看到MEMBER_STATE都是ONLINE，表示都是MASTER：

2017-01-11T07:51:40.623093Z 0 [Note]  Plugin group_replication reported: 'Marking group replication view change  with view_id 14841207424144277:8'2017-01-11T07:51:40.650962Z 21 [Note]  Start binlog_dump to master_thread_id(21) slave_server(12002), pos(, 4)2017-01-11T07:51:40.687441Z 0 [Note]  Plugin group_replication reported: 'The member with address bpe_service:3317  was declared online within the replication group'2017-01-11T07:52:40.651481Z 21 [Note]  Aborted connection 21 to db: 'unconnected' user: 'repl' host:  '192.168.121.111' (failed on flush_net())

db3上启动group_replication：

Db3命令行上执行：

mysql>  SELECT * FROM performance_schema.replication_group_members;+---------------------------+--------------------------------------+----------------------+-------------+--------------+| CHANNEL_NAME              | MEMBER_ID       | MEMBER_HOST          | MEMBER_PORT | MEMBER_STATE |+---------------------------+--------------------------------------+----------------------+-------------+--------------+| group_replication_applier | 3381d155-d7d1-11e6-94f7-b8ca3af6e36c | hch_test_dbm2_121_71 |        3317 | ONLINE       || group_replication_applier | 84dba8ff-d7d2-11e6-aa9a-18a99b76310d | bpe_service          |        3317 | ONLINE       |+---------------------------+--------------------------------------+----------------------+-------------+--------------+2 rows in set (0.00 sec) mysql>

再去master库db1上，查看group_replication成员，会有db3的显示，而且已经是ONLINE了

mysql> set global  group_replication_allow_local_disjoint_gtids_join=ON;Query OK, 0 rows affected (0.00 sec) mysql> start group_replication;Query OK, 0 rows affected (1.99 sec) mysql>

db1上后台error log显示：

mysql> SELECT * FROM performance_schema.replication_group_members;+---------------------------+--------------------------------------+----------------------+-------------+--------------+| CHANNEL_NAME              | MEMBER_ID                            | MEMBER_HOST          | MEMBER_PORT | MEMBER_STATE |+---------------------------+--------------------------------------+----------------------+-------------+--------------+| group_replication_applier | 21750571-d7d3-11e6-91e2-18a99b763071 | hch_test_web_1_24    |        3317 | ONLINE       || group_replication_applier | 3381d155-d7d1-11e6-94f7-b8ca3af6e36c | hch_test_dbm2_121_71 |        3317 | ONLINE       || group_replication_applier | 84dba8ff-d7d2-11e6-aa9a-18a99b76310d | bpe_service          |        3317 | ONLINE       |+---------------------------+--------------------------------------+----------------------+-------------+--------------+3 rows in set (0.00 sec) mysql>

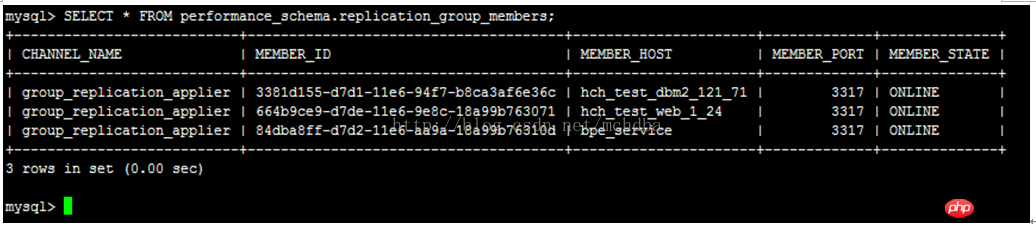

最后查看集群状态：

2017-01-11T08:13:05.972276Z 0 [Note]  Plugin group_replication reported: 'getstart group_id 8da193f6'2017-01-11T08:13:08.146144Z 0 [Note]  Plugin group_replication reported: 'Marking group replication view change  with view_id 14841207424144277:11'2017-01-11T08:13:08.174808Z 25 [Note]  Start binlog_dump to master_thread_id(25) slave_server(12003), pos(, 4)2017-01-11T08:13:08.218338Z 0 [Note]  Plugin group_replication reported: 'The member with address  hch_test_web_1_24:3317 was declared online within the replication group'2017-01-11T08:14:08.175308Z 25 [Note]  Aborted connection 25 to db: 'unconnected' user: 'repl' host:  '192.168.121.24' (failed on flush_net())

7，验证集群复制功能

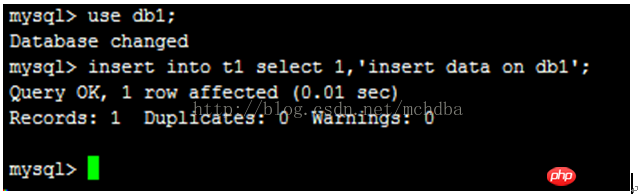

测试，在master库db1上建立测试库db1，测试表t1，录入一条数据

@@######@@

 @@##@@

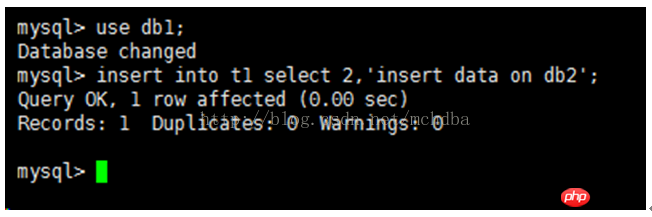

然后在db2上执行insert操作，则成功

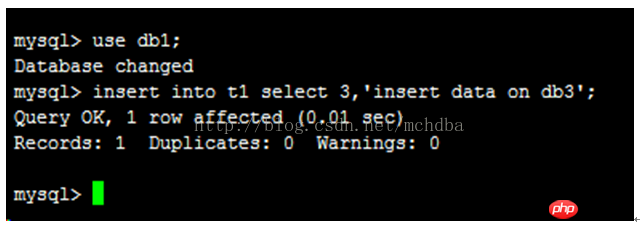

然后再db3上执行insert操作，则成功

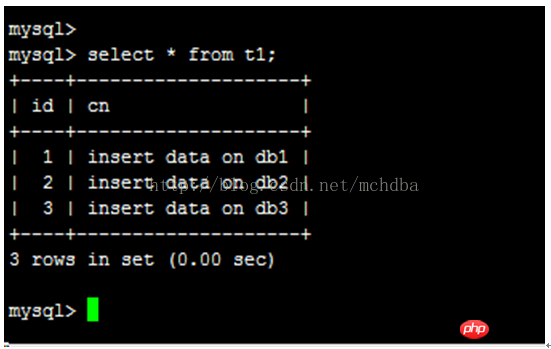

在db1、db2、db3分部录入的数据，再分表去db1、db2、db3上查看t1表的数据，数据都已经复制同步过来了，已经实现了group里面多成员member多处写操作。

8 添加新的成员

简要步骤：

（1）      安装mysql实例

（2）      准备my.cnf

@@######@@

（3）      启动mysql实例，service mysqld start;

（4）      开启group replication

@@######@@

（5）验证组成员，SELECT * FROM performance_schema.replication_group_members;

9，管理操作命令

查看group状态信息：SELECT * FROM performance_schema.replication_group_members;

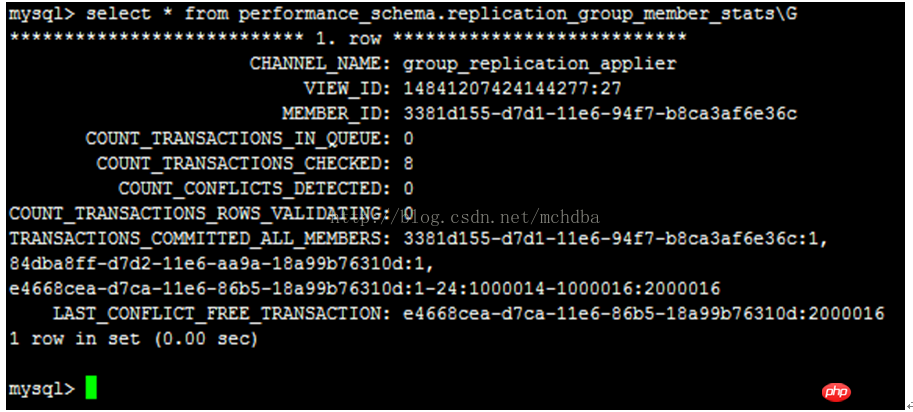

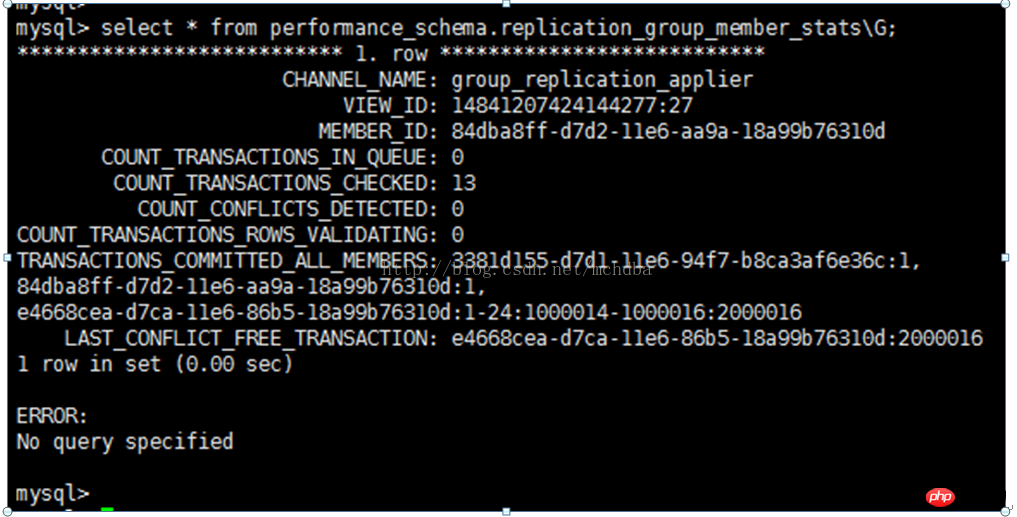

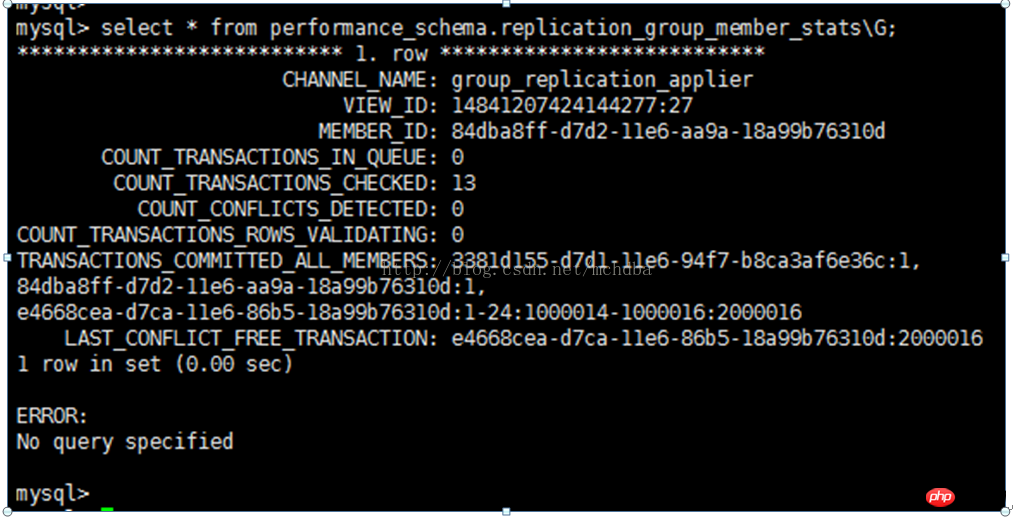

查询replication协议的其它数据：select * from performance_schema.replication_group_member_statsG

 @@##@@

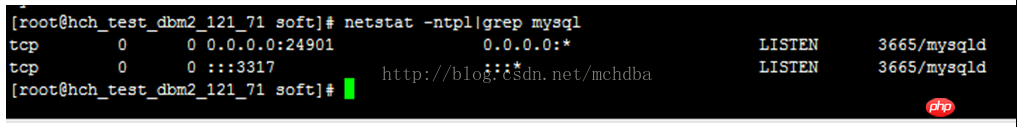

查看后台进程2个：

@@######@@

@@##@@

组复制成员状态表：select * from performance_schema.replication_group_member_stats;查看的是当前的状态：

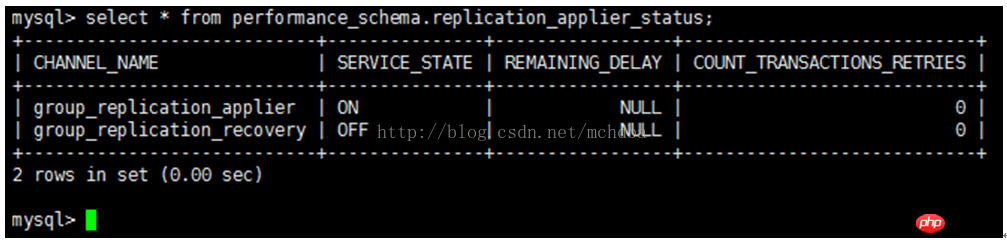

performance_schema.replication_applier_status

10，问题记录

10.1问题记录一

@@######@@

10.2问题记录二

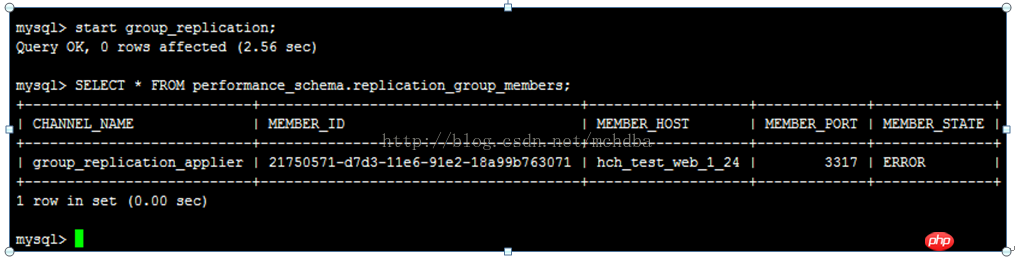

Sql界面显示状态为ERROR：

Errorlog显示：

@@######@@

【解决办法】：

@@######@@

mysql> SELECT * FROM performance_schema.replication_group_members;+---------------------------+--------------------------------------+----------------------+-------------+--------------+| CHANNEL_NAME              | MEMBER_ID                            | MEMBER_HOST          | MEMBER_PORT | MEMBER_STATE |+---------------------------+--------------------------------------+----------------------+-------------+--------------+| group_replication_applier | 3d872c2e-d670-11e6-ac1f-b8ca3af6e36c | hch_test_dbm2_121_71 |        3317 | ONLINE       || group_replication_applier | ef8ac2de-d671-11e6-9ba4-18a99b763071 | hch_test_web_1_24    |        3317 | ONLINE       || group_replication_applier | fdf2b02e-d66f-11e6-98a8-18a99b76310d | bpe_service          |        3317 | ONLINE       |+---------------------------+--------------------------------------+----------------------+-------------+--------------+3 rows in set (0.00 sec) mysql>

mysql> create database db1;Query OK, 1 row affected (0.00 sec) mysql> create table db1.t1(id int,cn  varchar(32));Query OK, 0 rows affected (0.02 sec) mysql>mysql> insert into t1(id,cn)values(  1,'a');ERROR 3098 (HY000): The table does not  comply with the requirements by an external plugin.mysql>mysql># 这里原因是group_replaction环境下面，表必须有主键不然不允许往里insert值。所以修改表t1，将id字段设置程主键即可。mysql> alter table t1 modify id int  primary key;Query OK, 0 rows affected (0.02 sec)Records: 0  Duplicates: 0  Warnings: 0

#replicationserver_id=12001 # 这个是随着新服务器的添加会变化gtid_mode=ONenforce_gtid_consistency=ONmaster_info_repository=TABLErelay_log_info_repository=TABLEbinlog_checksum=NONElog_slave_updates=ONlog_bin=binlogbinlog_format=ROW #group replicationtransaction_write_set_extraction=XXHASH64loose-group_replication_group_name="e4668cea-d7ca-11e6-86b5-18a99b76310d"loose-group_replication_start_on_boot=offloose-group_replication_local_address=  "db1:24901" # 这个是随着新服务器的添加会变化loose-group_replication_group_seeds=  "db1:24901,db2:24902,db3:24903"# 这个是随着新服务器的添加会变化loose-group_replication_bootstrap_group=  offloose-group_replication_single_primary_mode=FALSEloose-group_replication_enforce_update_everywhere_checks=  TRUE

SET SQL_LOG_BIN=0;  # 在建立复制账号的时候，不需要进入binlog日志GRANT REPLICATION SLAVE ON *.* TO 'repl'@'192.168.%' IDENTIFIED BY  'rlpbright_1927@ys';SET SQL_LOG_BIN=1;CHANGE MASTER TO MASTER_USER='repl',  MASTER_PASSWORD='rlpbright_1927@ys' FOR CHANNEL 'group_replication_recovery';START group_replication;SELECT * FROM performance_schema.replication_group_members;

[root@hch_test_dbm2_121_71 soft]# netstat  -ntpl|grep mysqltcp         0      0 0.0.0.0:24901    0.0.0.0:*  LISTEN      3665/mysqld        tcp         0      0 :::3317       :::*  LISTEN      3665/mysqld        [root@hch_test_dbm2_121_71 soft]#

Db2的mysql窗口报错：mysql> START GROUP_REPLICATION;ERROR 3092 (HY000): The server is not  configured properly to be an active member of the group. Please see more  details on error log.mysql> db2的error log信息如下：2017-01-11T07:57:41.161360Z 0 [ERROR]  Plugin group_replication reported: 'This member has more executed  transactions than those present in the group. Local transactions:  84dba8ff-d7d2-11e6-aa9a-18a99b76310d:1 > Group transactions:  3381d155-d7d1-11e6-94f7-b8ca3af6e36c:1,e4668cea-d7ca-11e6-86b5-18a99b76310d:1-3'2017-01-11T07:57:41.161430Z 0 [ERROR]  Plugin group_replication reported: 'The member contains transactions not  present in the group. The member will now exit the group.'2017-01-11T07:57:41.161445Z 0 [Note]  Plugin group_replication reported: 'To force this member into the group you  can use the group_replication_allow_local_disjoint_gtids_join option'2017-01-11T07:57:41.161589Z 3 [Note]  Plugin group_replication reported: 'Going to wait for view modification'2017-01-11T07:57:41.162126Z 0 [Note]  Plugin group_replication reported: 'getstart group_id 8da193f6'2017-01-11T07:57:44.508236Z 0 [Note]  Plugin group_replication reported: 'state 4330 action xa_terminate'2017-01-11T07:57:44.508429Z 0 [Note]  Plugin group_replication reported: 'new state x_start'2017-01-11T07:57:44.508561Z 0 [Note]  Plugin group_replication reported: 'state 4257 action xa_exit'2017-01-11T07:57:44.508720Z 0 [Note]  Plugin group_replication reported: 'Exiting xcom thread'2017-01-11T07:57:44.508746Z 0 [Note]  Plugin group_replication reported: 'new state x_start'2017-01-11T07:57:49.549137Z 3 [Note]  Plugin group_replication reported: 'auto_increment_increment is reset to 1'2017-01-11T07:57:49.549192Z 3 [Note]  Plugin group_replication reported: 'auto_increment_offset is reset to 1'2017-01-11T07:57:49.549472Z 23 [Note]  Error reading relay log event for channel 'group_replication_applier': slave  SQL thread was killed2017-01-11T07:57:49.550037Z 20 [Note] Plugin  group_replication reported: 'The group replication applier thread was killed' 【解决办法】设置group_replication_allow_local_disjoint_gtids_join为ONmysql> set global  group_replication_allow_local_disjoint_gtids_join=ON;Query OK, 0 rows affected (0.00 sec) mysql> START GROUP_REPLICATION;Query OK, 0 rows affected (5.52 sec) mysql>

2017-01-11T08:07:34.587378Z 12 [Note]  'CHANGE MASTER TO FOR CHANNEL 'group_replication_recovery' executed'.  Previous state master_host='bpe_service', master_port= 3317,  master_log_file='', master_log_pos= 4, master_bind=''. New state  master_host='', master_port= 0, master_log_file='',  master_log_pos= 4, master_bind=''.2017-01-11T08:07:34.591679Z 12 [ERROR]  Plugin group_replication reported: 'Fatal error during the Recovery process  of Group Replication. The server will leave the group.'2017-01-11T08:07:34.592447Z 0 [Note]  Plugin group_replication reported: 'getstart group_id 8da193f6'2017-01-11T08:07:37.943536Z 0 [Note]  Plugin group_replication reported: 'state 4330 action xa_terminate'2017-01-11T08:07:37.943852Z 0 [Note]  Plugin group_replication reported: 'new state x_start'2017-01-11T08:07:37.943879Z 0 [Note]  Plugin group_replication reported: 'state 4257 action xa_exit'2017-01-11T08:07:37.943981Z 0 [Note]  Plugin group_replication reported: 'Exiting xcom thread'2017-01-11T08:07:37.943999Z 0 [Note]  Plugin group_replication reported: 'new state x_start'

mysql> CHANGE MASTER TO MASTER_USER='repl', MASTER_PASSWORD='rlpbright_1927@ys' FOR CHANNEL 'group_replication_recovery';Query OK, 0 rows affected, 2 warnings (0.01 sec) mysql> stop group_replication;Query OK, 0 rows affected (0.01 sec) mysql> start group_replication;Query OK, 0 rows affected (2.20 sec) mysql>mysql> SELECT * FROM performance_schema.replication_group_members;+---------------------------+--------------------------------------+----------------------+-------------+--------------+| CHANNEL_NAME              | MEMBER_ID      | MEMBER_HOST          | MEMBER_PORT | MEMBER_STATE |+---------------------------+--------------------------------------+----------------------+-------------+--------------+| group_replication_applier | 21750571-d7d3-11e6-91e2-18a99b763071 | hch_test_web_1_24    |    3317 | ONLINE       || group_replication_applier | 3381d155-d7d1-11e6-94f7-b8ca3af6e36c | hch_test_dbm2_121_71 |        3317 | ONLINE       || group_replication_applier | 84dba8ff-d7d2-11e6-aa9a-18a99b76310d | bpe_service     |     3317 | ONLINE       |+---------------------------+--------------------------------------+----------------------+-------------+--------------+3 rows in set (0.00 sec) mysql>
