MySQL多实例的配置和管理详细

mysql的多实例有两种方式可以实现，两种方式各有利弊。

第一种是使用多个配置文件启动不同的进程来实现多实例，这种方式的优势逻辑简单，配置简单，缺点是管理起来不太方便。

第二种是通过官方自带的mysqld_multi使用单独的配置文件来实现多实例，这种方式定制每个实例的配置不太方面，优点是管理起来很方便，集中管理。

下面就分别来实战这两种多实例的安装和管理

先来学习第一种使用多个配置文件启动多个不同进程的情况：

环境介绍：

mysql 版本：5.1.50

操作系统：SUSE 11

mysql实例数：3个

实例占用端口分别为：3306、3307、3308

创建mysql用户：

/usr/sbin/groupadd mysql/usr/sbin/useradd -g mysql mysql

编译安装mysql：

tar xzvf mysql-5.1.50.tar.gzcd mysql-5.1.50./configure '--prefix=/usr/local/mysql' '--with-charset=utf8' '--with-extra-charsets=complex' '--with-pthread' '--enable-thread-safe-client' '--with-ssl' '--with-client-ldflags=-all-static' '--with-mysqld-ldflags=-all-static' '--with-plugins=partition,innobase,blackhole,myisam,innodb_plugin,heap,archive' '--enable-shared' '--enable-assembler'makemake install

初始化数据库：

/usr/local/mysql/bin/mysql_install_db --basedir=/usr/local/mysql --datadir=/data/dbdata_3306 --user=mysql/usr/local/mysql/bin/mysql_install_db --basedir=/usr/local/mysql --datadir=/data/dbdata_3307 --user=mysql/usr/local/mysql/bin/mysql_install_db --basedir=/usr/local/mysql --datadir=/data/dbdata_3308 --user=mysql

创建配置文件

vim /data/dbdata_3306/my.cnf

3306的配置文件如下：

[client]port = 3306socket = /data/dbdata_3306/mysql.sock[mysqld]datadir=/data/dbdata_3306/skip-name-resolvelower_case_table_names=1innodb_file_per_table=1port = 3306socket = /data/dbdata_3306/mysql.sockback_log = 50max_connections = 300max_connect_errors = 1000table_open_cache = 2048max_allowed_packet = 16Mbinlog_cache_size = 2Mmax_heap_table_size = 64Msort_buffer_size = 2Mjoin_buffer_size = 2Mthread_cache_size = 64thread_concurrency = 8query_cache_size = 64Mquery_cache_limit = 2Mft_min_word_len = 4default-storage-engine = innodbthread_stack = 192Ktransaction_isolation = REPEATABLE-READtmp_table_size = 64Mlog-bin=mysql-binbinlog_format=mixedslow_query_loglong_query_time = 1server-id = 1key_buffer_size = 8Mread_buffer_size = 2Mread_rnd_buffer_size = 2Mbulk_insert_buffer_size = 64Mmyisam_sort_buffer_size = 128Mmyisam_max_sort_file_size = 10Gmyisam_repair_threads = 1myisam_recoverinnodb_additional_mem_pool_size = 16Minnodb_buffer_pool_size = 200Minnodb_data_file_path = ibdata1:10M:autoextendinnodb_file_io_threads = 8innodb_thread_concurrency = 16innodb_flush_log_at_trx_commit = 1innodb_log_buffer_size = 16Minnodb_log_file_size = 512Minnodb_log_files_in_group = 3innodb_max_dirty_pages_pct = 60innodb_lock_wait_timeout = 120[mysqldump]quickmax_allowed_packet = 256M[mysql]no-auto-rehashprompt=u@d R:m>[myisamchk]key_buffer_size = 512Msort_buffer_size = 512Mread_buffer = 8Mwrite_buffer = 8M[mysqlhotcopy]interactive-timeout[mysqld_safe]open-files-limit = 8192

vim /data/dbdata_3307/my.cnf

3307的配置文件如下：

[client]port = 3307socket = /data/dbdata_3307/mysql.sock[mysqld]datadir=/data/dbdata_3307/skip-name-resolvelower_case_table_names=1innodb_file_per_table=1port = 3307socket = /data/dbdata_3307/mysql.sockback_log = 50max_connections = 300max_connect_errors = 1000table_open_cache = 2048max_allowed_packet = 16Mbinlog_cache_size = 2Mmax_heap_table_size = 64Msort_buffer_size = 2Mjoin_buffer_size = 2Mthread_cache_size = 64thread_concurrency = 8query_cache_size = 64Mquery_cache_limit = 2Mft_min_word_len = 4default-storage-engine = innodbthread_stack = 192Ktransaction_isolation = REPEATABLE-READtmp_table_size = 64Mlog-bin=mysql-binbinlog_format=mixedslow_query_loglong_query_time = 1server-id = 1key_buffer_size = 8Mread_buffer_size = 2Mread_rnd_buffer_size = 2Mbulk_insert_buffer_size = 64Mmyisam_sort_buffer_size = 128Mmyisam_max_sort_file_size = 10Gmyisam_repair_threads = 1myisam_recoverinnodb_additional_mem_pool_size = 16Minnodb_buffer_pool_size = 200Minnodb_data_file_path = ibdata1:10M:autoextendinnodb_file_io_threads = 8innodb_thread_concurrency = 16innodb_flush_log_at_trx_commit = 1innodb_log_buffer_size = 16Minnodb_log_file_size = 512Minnodb_log_files_in_group = 3innodb_max_dirty_pages_pct = 60innodb_lock_wait_timeout = 120[mysqldump]quickmax_allowed_packet = 256M[mysql]no-auto-rehashprompt=u@d R:m>[myisamchk]key_buffer_size = 512Msort_buffer_size = 512Mread_buffer = 8Mwrite_buffer = 8M[mysqlhotcopy]interactive-timeout[mysqld_safe]open-files-limit = 8192

vim /data/dbdata_3308/my.cnf

3308的配置文件如下：

[client]port = 3308socket = /data/dbdata_3308/mysql.sock[mysqld]datadir=/data/dbdata_3308/skip-name-resolvelower_case_table_names=1innodb_file_per_table=1port = 3308socket = /data/dbdata_3308/mysql.sockback_log = 50max_connections = 300max_connect_errors = 1000table_open_cache = 2048max_allowed_packet = 16Mbinlog_cache_size = 2Mmax_heap_table_size = 64Msort_buffer_size = 2Mjoin_buffer_size = 2Mthread_cache_size = 64thread_concurrency = 8query_cache_size = 64Mquery_cache_limit = 2Mft_min_word_len = 4default-storage-engine = innodbthread_stack = 192Ktransaction_isolation = REPEATABLE-READtmp_table_size = 64Mlog-bin=mysql-binbinlog_format=mixedslow_query_loglong_query_time = 1server-id = 1key_buffer_size = 8Mread_buffer_size = 2Mread_rnd_buffer_size = 2Mbulk_insert_buffer_size = 64Mmyisam_sort_buffer_size = 128Mmyisam_max_sort_file_size = 10Gmyisam_repair_threads = 1myisam_recoverinnodb_additional_mem_pool_size = 16Minnodb_buffer_pool_size = 200Minnodb_data_file_path = ibdata1:10M:autoextendinnodb_file_io_threads = 8innodb_thread_concurrency = 16innodb_flush_log_at_trx_commit = 1innodb_log_buffer_size = 16Minnodb_log_file_size = 512Minnodb_log_files_in_group = 3innodb_max_dirty_pages_pct = 60innodb_lock_wait_timeout = 120[mysqldump]quickmax_allowed_packet = 256M[mysql]no-auto-rehashprompt=u@d R:m>[myisamchk]key_buffer_size = 512Msort_buffer_size = 512Mread_buffer = 8Mwrite_buffer = 8M[mysqlhotcopy]interactive-timeout[mysqld_safe]open-files-limit = 8192

创建自动启动文件

vim /data/dbdata_3306/mysqld

3306的启动文件如下：

#!/bin/bashmysql_port=3306mysql_username="admin"mysql_password="password"function_start_mysql(){printf "Starting MySQL..."/bin/sh /usr/local/mysql/bin/mysqld_safe --defaults-file=/data/dbdata_${mysql_port}/my.cnf 2>&1 > /dev/null &}function_stop_mysql(){printf "Stoping MySQL..."/usr/local/mysql/bin/mysqladmin -u ${mysql_username} -p${mysql_password} -S /data/dbdata_${mysql_port}/mysql.sock shutdown}function_restart_mysql(){printf "Restarting MySQL..."function_stop_mysqlfunction_start_mysql}function_kill_mysql(){kill -9 $(ps -ef | grep 'bin/mysqld_safe' | grep ${mysql_port} | awk '{printf $2}')kill -9 $(ps -ef | grep 'libexec/mysqld' | grep ${mysql_port} | awk '{printf $2}')}case $1 instart)function_start_mysql;;stop)function_stop_mysql;;kill)function_kill_mysql;;restart)function_stop_mysqlfunction_start_mysql;;*)echo "Usage: /data/dbdata_${mysql_port}/mysqld {start|stop|restart|kill}";;esac

vim /data/dbdata_3307/mysqld

3307的启动文件如下：

#!/bin/bashmysql_port=3307mysql_username="admin"mysql_password="password"function_start_mysql(){printf "Starting MySQL..."/bin/sh /usr/local/mysql/bin/mysqld_safe --defaults-file=/data/dbdata_${mysql_port}/my.cnf 2>&1 > /dev/null &}function_stop_mysql(){printf "Stoping MySQL..."/usr/local/mysql/bin/mysqladmin -u ${mysql_username} -p${mysql_password} -S /data/dbdata_${mysql_port}/mysql.sock shutdown}function_restart_mysql(){printf "Restarting MySQL..."function_stop_mysqlfunction_start_mysql}function_kill_mysql(){kill -9 $(ps -ef | grep 'bin/mysqld_safe' | grep ${mysql_port} | awk '{printf $2}')kill -9 $(ps -ef | grep 'libexec/mysqld' | grep ${mysql_port} | awk '{printf $2}')}case $1 instart)function_start_mysql;;stop)function_stop_mysql;;kill)function_kill_mysql;;restart)function_stop_mysqlfunction_start_mysql;;*)echo "Usage: /data/dbdata_${mysql_port}/mysqld {start|stop|restart|kill}";;esac

vim /data/dbdata_3308/mysqld

3308的启动文件如下：

#!/bin/bashmysql_port=3308mysql_username="admin"mysql_password="password"function_start_mysql(){printf "Starting MySQL..."/bin/sh /usr/local/mysql/bin/mysqld_safe --defaults-file=/data/dbdata_${mysql_port}/my.cnf 2>&1 > /dev/null &}function_stop_mysql(){printf "Stoping MySQL..."/usr/local/mysql/bin/mysqladmin -u ${mysql_username} -p${mysql_password} -S /data/dbdata_${mysql_port}/mysql.sock shutdown}function_restart_mysql(){printf "Restarting MySQL..."function_stop_mysqlfunction_start_mysql}function_kill_mysql(){kill -9 $(ps -ef | grep 'bin/mysqld_safe' | grep ${mysql_port} | awk '{printf $2}')kill -9 $(ps -ef | grep 'libexec/mysqld' | grep ${mysql_port} | awk '{printf $2}')}case $1 instart)function_start_mysql;;stop)function_stop_mysql;;kill)function_kill_mysql;;restart)function_stop_mysqlfunction_start_mysql;;*)echo "Usage: /data/dbdata_${mysql_port}/mysqld {start|stop|restart|kill}";;esac

启动3306、3307、3308的mysql

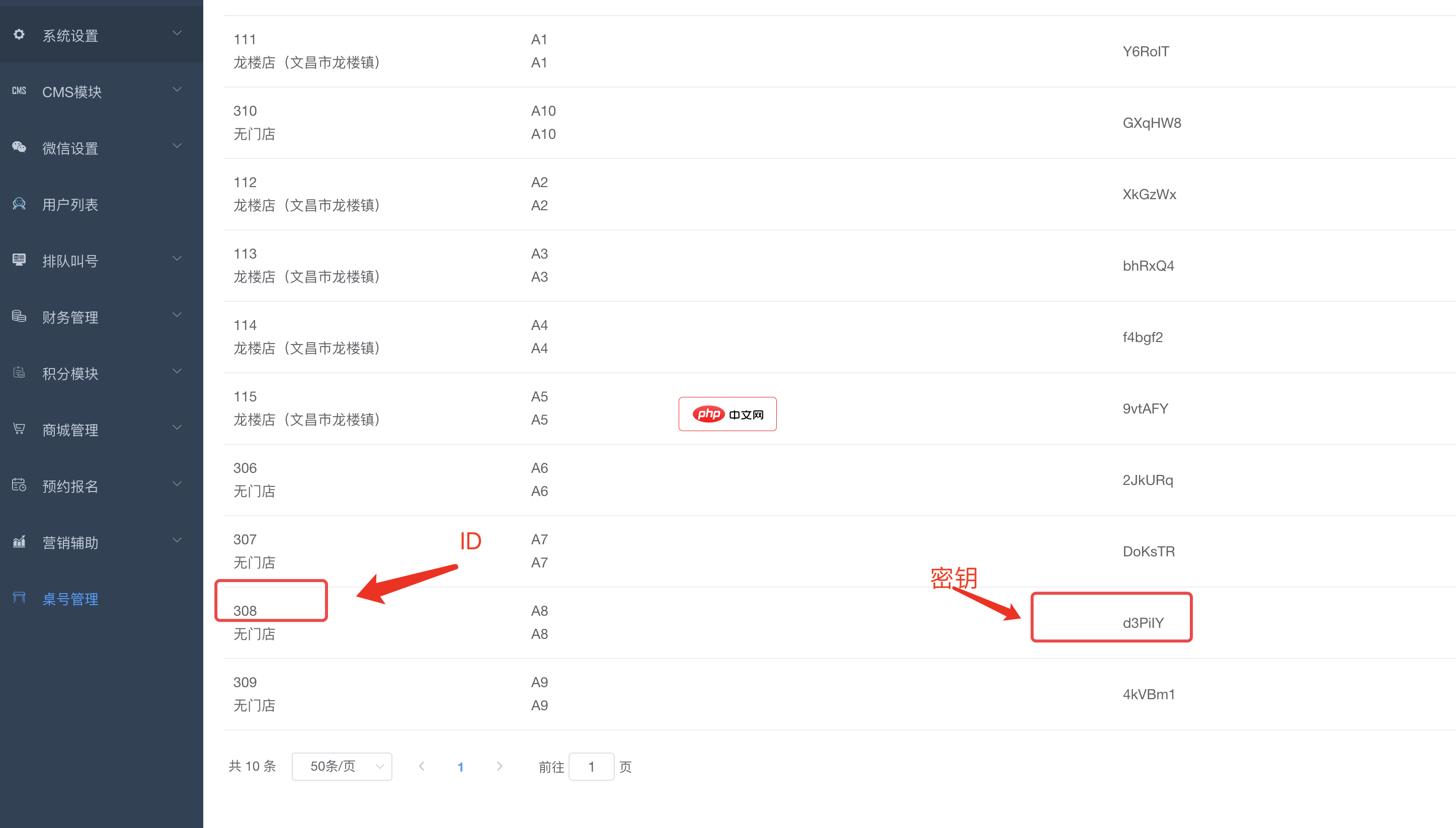

bee餐饮点餐外卖小程序

bee餐饮点餐外卖小程序是针对餐饮行业推出的一套完整的餐饮解决方案，实现了用户在线点餐下单、外卖、叫号排队、支付、配送等功能，完美的使餐饮行业更高效便捷！功能演示：1、桌号管理登录后台，左侧菜单 “桌号管理”，添加并管理你的桌号信息，添加以后在列表你将可以看到 ID 和 密钥，这两个数据用来生成桌子的二维码2、生成桌子二维码例如上面的ID为 308，密钥为 d3PiIY，那么现在去左侧菜单微信设置

1 查看详情

/data/dbdata_3306/mysqld start/data/dbdata_3307/mysqld start/data/dbdata_3308/mysqld start

更改原来密码（处于安全考虑，还需要删除系统中没有密码的帐号，这里省略了）：

/usr/local/mysql/bin/mysqladmin -uroot password 'password' -S /data/dbdata_3306/mysql.sock/usr/local/mysql/bin/mysqladmin -uroot password 'password' -S /data/dbdata_3307/mysql.sock/usr/local/mysql/bin/mysqladmin -uroot password 'password' -S /data/dbdata_3308/mysql.sock

登录测试并创建关闭mysql的帐号权限，mysqld脚本要用到！

/usr/local/mysql/bin/mysql -uroot -ppassword -S /data/dbdata_3308/mysql.sockGRANT SHUTDOWN ON *.* TO 'admin'@'localhost' IDENTIFIED BY 'password';flush privileges;/usr/local/mysql/bin/mysql -uroot -ppassword -S /data/dbdata_3308/mysql.sockGRANT SHUTDOWN ON *.* TO 'admin'@'localhost' IDENTIFIED BY 'password';flush privileges;/usr/local/mysql/bin/mysql -uroot -ppassword -S /data/dbdata_3308/mysql.sockGRANT SHUTDOWN ON *.* TO 'admin'@'localhost' IDENTIFIED BY 'password';flush privileges;

创建了admin帐号以后脚本的stop功能和restart功能就正常了！

更改环境变量

vim /etc/profile 添加下面一行内容PATH=${PATH}:/usr/local/mysql/bin/source /etc/profile

添加到自动启动

vim /etc/init.d/boot.local/data/dbdata_3306/mysqld start/data/dbdata_3307/mysqld start/data/dbdata_3308/mysqld start

如果是rhel或者centos系统的话自启动文件/etc/rc.local

 管理的话，在本地都是采用 -S /data/dbdata_3308/mysql.sock，如果在远程可以通过不同的端口连接上去坐管理操作。其他的和单实例的管理没什么区别！

再来看第二种通过官方自带的mysqld_multi来实现多实例实战：

这里的mysql安装以及数据库的初始化和前面的步骤一样，就不再赘述。

mysqld_multi的配置

vim /etc/my.cnf

[mysqld_multi]mysqld = /usr/local/mysql/bin/mysqld_safemysqladmin = /usr/local/mysql/bin/mysqladminuser = adminpassword = password[mysqld1]socket = /data/dbdata_3306/mysql.sockport = 3306pid-file = /data/dbdata_3306/3306.piddatadir = /data/dbdata_3306user = mysqlskip-name-resolvelower_case_table_names=1innodb_file_per_table=1back_log = 50max_connections = 300max_connect_errors = 1000table_open_cache = 2048max_allowed_packet = 16Mbinlog_cache_size = 2Mmax_heap_table_size = 64Msort_buffer_size = 2Mjoin_buffer_size = 2Mthread_cache_size = 64thread_concurrency = 8query_cache_size = 64Mquery_cache_limit = 2Mft_min_word_len = 4default-storage-engine = innodbthread_stack = 192Ktransaction_isolation = REPEATABLE-READtmp_table_size = 64Mlog-bin=mysql-binbinlog_format=mixedslow_query_loglong_query_time = 1server-id = 1key_buffer_size = 8Mread_buffer_size = 2Mread_rnd_buffer_size = 2Mbulk_insert_buffer_size = 64Mmyisam_sort_buffer_size = 128Mmyisam_max_sort_file_size = 10Gmyisam_repair_threads = 1myisam_recoverinnodb_additional_mem_pool_size = 16Minnodb_buffer_pool_size = 200Minnodb_data_file_path = ibdata1:10M:autoextendinnodb_file_io_threads = 8innodb_thread_concurrency = 16innodb_flush_log_at_trx_commit = 1innodb_log_buffer_size = 16Minnodb_log_file_size = 512Minnodb_log_files_in_group = 3innodb_max_dirty_pages_pct = 60innodb_lock_wait_timeout = 120[mysqld2]socket = /data/dbdata_3307/mysql.sockport = 3307pid-file = /data/dbdata_3307/3307.piddatadir = /data/dbdata_3307user = mysqlskip-name-resolvelower_case_table_names=1innodb_file_per_table=1back_log = 50max_connections = 300max_connect_errors = 1000table_open_cache = 2048max_allowed_packet = 16Mbinlog_cache_size = 2Mmax_heap_table_size = 64Msort_buffer_size = 2Mjoin_buffer_size = 2Mthread_cache_size = 64thread_concurrency = 8query_cache_size = 64Mquery_cache_limit = 2Mft_min_word_len = 4default-storage-engine = innodbthread_stack = 192Ktransaction_isolation = REPEATABLE-READtmp_table_size = 64Mlog-bin=mysql-binbinlog_format=mixedslow_query_loglong_query_time = 1server-id = 1key_buffer_size = 8Mread_buffer_size = 2Mread_rnd_buffer_size = 2Mbulk_insert_buffer_size = 64Mmyisam_sort_buffer_size = 128Mmyisam_max_sort_file_size = 10Gmyisam_repair_threads = 1myisam_recoverinnodb_additional_mem_pool_size = 16Minnodb_buffer_pool_size = 200Minnodb_data_file_path = ibdata1:10M:autoextendinnodb_file_io_threads = 8innodb_thread_concurrency = 16innodb_flush_log_at_trx_commit = 1innodb_log_buffer_size = 16Minnodb_log_file_size = 512Minnodb_log_files_in_group = 3innodb_max_dirty_pages_pct = 60innodb_lock_wait_timeout = 120[mysqld3]socket = /data/dbdata_3308/mysql.sockport = 3308pid-file = /data/dbdata_3308/3308.piddatadir = /data/dbdata_3308user = mysqlskip-name-resolvelower_case_table_names=1innodb_file_per_table=1back_log = 50max_connections = 300max_connect_errors = 1000table_open_cache = 2048max_allowed_packet = 16Mbinlog_cache_size = 2Mmax_heap_table_size = 64Msort_buffer_size = 2Mjoin_buffer_size = 2Mthread_cache_size = 64thread_concurrency = 8query_cache_size = 64Mquery_cache_limit = 2Mft_min_word_len = 4default-storage-engine = innodbthread_stack = 192Ktransaction_isolation = REPEATABLE-READtmp_table_size = 64Mlog-bin=mysql-binbinlog_format=mixedslow_query_loglong_query_time = 1server-id = 1key_buffer_size = 8Mread_buffer_size = 2Mread_rnd_buffer_size = 2Mbulk_insert_buffer_size = 64Mmyisam_sort_buffer_size = 128Mmyisam_max_sort_file_size = 10Gmyisam_repair_threads = 1myisam_recoverinnodb_additional_mem_pool_size = 16Minnodb_buffer_pool_size = 200Minnodb_data_file_path = ibdata1:10M:autoextendinnodb_file_io_threads = 8innodb_thread_concurrency = 16innodb_flush_log_at_trx_commit = 1innodb_log_buffer_size = 16Minnodb_log_file_size = 512Minnodb_log_files_in_group = 3innodb_max_dirty_pages_pct = 60innodb_lock_wait_timeout = 120[mysqldump]quickmax_allowed_packet = 256M[mysql]no-auto-rehashprompt=u@d R:m>[myisamchk]key_buffer_size = 512Msort_buffer_size = 512Mread_buffer = 8Mwrite_buffer = 8M[mysqlhotcopy]interactive-timeout[mysqld_safe]open-files-limit = 8192

mysqld_multi启动

/usr/local/mysql/bin/mysqld_multi start 1/usr/local/mysql/bin/mysqld_multi start 2/usr/local/mysql/bin/mysqld_multi start 3

或者采用一条命令的形式：

/usr/local/mysql/bin/mysqld_multi start 1-3

更改原来密码（处于安全考虑，还需要删除系统中没有密码的帐号，这里省略了）：

/usr/local/mysql/bin/mysqladmin -uroot password 'password' -S /data/dbdata_3306/mysql.sock/usr/local/mysql/bin/mysqladmin -uroot password 'password' -S /data/dbdata_3307/mysql.sock/usr/local/mysql/bin/mysqladmin -uroot password 'password' -S /data/dbdata_3308/mysql.sock

登录测试并创建admin密码(停止mysql的时候需要使用到)

/usr/local/mysql/bin/mysql -uroot -ppassword -S /data/dbdata_3308/mysql.sockGRANT SHUTDOWN ON *.* TO 'admin'@'localhost' IDENTIFIED BY 'password';flush privileges;/usr/local/mysql/bin/mysql -uroot -ppassword -S /data/dbdata_3308/mysql.sockGRANT SHUTDOWN ON *.* TO 'admin'@'localhost' IDENTIFIED BY 'password';flush privileges;/usr/local/mysql/bin/mysql -uroot -ppassword -S /data/dbdata_3308/mysql.sockGRANT SHUTDOWN ON *.* TO 'admin'@'localhost' IDENTIFIED BY 'password';flush privileges;

更改环境变量

vim /etc/profilePATH=${PATH}:/usr/local/mysql/bin/source /etc/profile

添加到自动启动

vim /etc/init.d/boot.local/usr/local/mysql/bin/mysqld_multi start 1-3

如果是rhel或者centos系统的话自启动文件/etc/rc.local

管理的话，在本地都是采用 -S /data/dbdata_3308/mysql.sock，如果在远程可以通过不同的端口连接上去坐管理操作。其他的和单实例的管理没什么区别！

大家在管理多实例的话可以使用mysqlmanager实例管理器，管理器来会比较方面，限于篇幅，这里就不在多做介绍！
