最近做项目的时候需要在游戏里截一张高清截图，研究了一下写成脚本，方便以后使用。
脚本可以自定义分辨率，用相机截高清截图。可以用代码动态截图，也可以在编辑模式下截图。
注意截图宽高比要正确，宽高比不正确时可能会出问题。

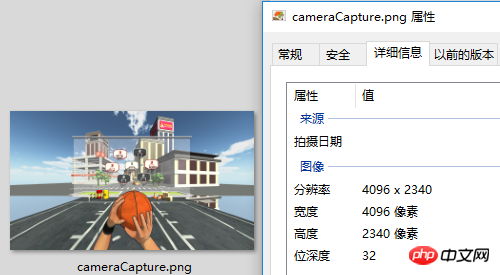

截图效果：
脚本:
CameraCapture.cs
using UnityEngine;using System.IO;////// 相机截图/// ZhangYu 2018-07-06/// public class CameraCapture : MonoBehaviour { // 截图尺寸 public enum CaptureSize { CameraSize, ScreenResolution, FixedSize } // 目标摄像机 public Camera targetCamera; // 截图尺寸 public CaptureSize captureSize = CaptureSize.CameraSize; // 像素尺寸 public Vector2 pixelSize; // 保存路径 public string savePath = "StreamingAssets/"; // 文件名称 public string fileName = "cameraCapture.png"; #if UNITY_EDITOR private void Reset() { targetCamera = GetComponent(); pixelSize = new Vector2(Screen.currentResolution.width, Screen.currentResolution.height); } #endif ///保存截图 /// 目标摄像机 public void saveCapture() { Vector2 size = pixelSize; if (captureSize == CaptureSize.CameraSize) { size = new Vector2(targetCamera.pixelWidth, targetCamera.pixelHeight); } else if (captureSize == CaptureSize.ScreenResolution) { size = new Vector2(Screen.currentResolution.width, Screen.currentResolution.height); } string path = Application.dataPath + "/" + savePath + fileName; saveTexture(path, capture(targetCamera, (int)size.x, (int)size.y)); } ///相机截图 /// 目标相机 public static Texture2D capture(Camera camera) { return capture(camera, Screen.width, Screen.height); } ///相机截图 /// 目标相机 /// 宽度 /// 高度 public static Texture2D capture(Camera camera, int width, int height) { RenderTexture rt = new RenderTexture(width, height, 0); rt.depth = 24; rt.antiAliasing = 8; camera.targetTexture = rt; camera.RenderDontRestore(); RenderTexture.active = rt; Texture2D texture = new Texture2D(width, height, TextureFormat.ARGB32, false, true); Rect rect = new Rect(0, 0, width, height); texture.ReadPixels(rect, 0, 0); texture.filterMode = FilterMode.Point; texture.Apply(); camera.targetTexture = null; RenderTexture.active = null; Destroy(rt); return texture; } ///保存贴图 /// 保存路径 /// Texture2D public static void saveTexture(string path, Texture2D texture) { File.WriteAllBytes(path, texture.EncodeToPNG()); #if UNITY_EDITOR Debug.Log("已保存截图到:" + path); #endif }}
脚本编辑器:
CameraCaptureEditor.cs
using UnityEditor;using UnityEngine;////// 相机截图 编辑器/// ZhangYu 2018-07-06/// [CanEditMultipleObjects][CustomEditor(typeof(CameraCapture))]public class CameraCaptureEditor : Editor { public override void OnInspectorGUI() { // 属性 CameraCapture script = (CameraCapture)target; int selected = (int)script.captureSize; // 重绘GUI EditorGUI.BeginChangeCheck(); drawProperty("targetCamera", "目标像机"); string[] options = new string[] { "像机尺寸", "屏幕尺寸", "固定尺寸"}; selected = EditorGUILayout.Popup("截图尺寸", selected, options, GUILayout.ExpandWidth(true)); script.captureSize = (CameraCapture.CaptureSize)selected; if (script.captureSize == CameraCapture.CaptureSize.FixedSize) { drawProperty("pixelSize", "像素尺寸"); EditorGUILayout.HelpBox("请保持正确的宽高比！n否则截图区域可能出现错误。", MessageType.Info); } drawProperty("savePath", "保存路径"); drawProperty("fileName", "文件名称"); // 保存截图按钮 bool isPress = GUILayout.Button("保存截图", GUILayout.ExpandWidth(true)); if (isPress) script.saveCapture(); if (EditorGUI.EndChangeCheck()) serializedObject.ApplyModifiedProperties(); } private void drawProperty(string property, string label) { EditorGUILayout.PropertyField(serializedObject.FindProperty(property), new GUIContent(label), true); }}
相关文章：
Vuforia Unity Camera Image Access
在Unity中使用Direct2D
相关视频：
PHP 图片上传教程
以上就是利用Unity脚本自定义分辨率实现相机截一张高清截图的详细内容，更多请关注创想鸟其它相关文章！
