本文围绕九种蘑菇的图像分类任务展开，采用卷积神经网络结构。先解压数据集并标注，划分出训练集与验证集，定义数据集类并做数据增强。接着选用mobilenet_v2网络，配置优化器等，经100轮训练，通过回调函数保存最佳模型，最后存储模型以备后续评估测试。
☞☞☞AI 智能聊天, 问答助手, AI 智能搜索, 免费无限量使用 DeepSeek R1 模型☜☜☜
① 问题定义
九种蘑菇的分类的本质是图像分类任务，采用卷积审计网络网络结构进行相关实践。
② 数据准备
2.1 解压缩数据集
我们将网上获取的数据集以压缩包的方式上传到aistudio数据集中，并加载到我们的项目内。
在使用之前我们进行数据集压缩包的一个解压。
In [1]
!unzip -oq /home/aistudio/data/data82495/mushrooms_train.zip -d work/
2.2 数据标注
我们先看一下解压缩后的数据集长成什么样子。
In [1]
import paddlepaddle.seed(8888)import numpy as npfrom typing import Callable#参数配置config_parameters = { "class_dim": 9, #分类数 "target_path":"/home/aistudio/work/", 'train_image_dir': '/home/aistudio/work/trainImages', 'eval_image_dir': '/home/aistudio/work/evalImages', 'epochs':100, 'batch_size': 128, 'lr': 0.01}
In [3]
import osimport randomfrom matplotlib import pyplot as pltfrom PIL import Imageimgs = []paths = os.listdir('work/mushrooms_train')for path in paths: img_path = os.path.join('work/mushrooms_train', path) if os.path.isdir(img_path): img_paths = os.listdir(img_path) img = Image.open(os.path.join(img_path, random.choice(img_paths))) imgs.append((img, path))f, ax = plt.subplots(3, 3, figsize=(12,12))for i, img in enumerate(imgs[:9]): ax[i//3, i%3].imshow(img[0]) ax[i//3, i%3].axis('off') ax[i//3, i%3].set_title('label: %s' % img[1])plt.show()
2.3 划分数据集与数据集的定义
接下来我们使用标注好的文件进行数据集类的定义，方便后续模型训练使用。
2.3.1 划分数据集
In [3]
import osimport shutiltrain_dir = config_parameters['train_image_dir']eval_dir = config_parameters['eval_image_dir']paths = os.listdir('work/mushrooms_train')if not os.path.exists(train_dir): os.mkdir(train_dir)if not os.path.exists(eval_dir): os.mkdir(eval_dir)for path in paths: imgs_dir = os.listdir(os.path.join('work/mushrooms_train', path)) target_train_dir = os.path.join(train_dir,path) target_eval_dir = os.path.join(eval_dir,path) if not os.path.exists(target_train_dir): os.mkdir(target_train_dir) if not os.path.exists(target_eval_dir): os.mkdir(target_eval_dir) for i in range(len(imgs_dir)): if ' ' in imgs_dir[i]: new_name = imgs_dir[i].replace(' ', '_') else: new_name = imgs_dir[i] target_train_path = os.path.join(target_train_dir, new_name) target_eval_path = os.path.join(target_eval_dir, new_name) if i % 5 == 0: shutil.copyfile(os.path.join(os.path.join('work/mushrooms_train', path), imgs_dir[i]), target_eval_path) else: shutil.copyfile(os.path.join(os.path.join('work/mushrooms_train', path), imgs_dir[i]), target_train_path)print('finished train val split!')
finished train val split!
2.3.2 导入数据集的定义实现
In [4]
#数据集的定义class TowerDataset(paddle.io.Dataset): """ 步骤一：继承paddle.io.Dataset类 """ def __init__(self, transforms: Callable, mode: str ='train'): """ 步骤二：实现构造函数，定义数据读取方式 """ super(TowerDataset, self).__init__() self.mode = mode self.transforms = transforms train_image_dir = config_parameters['train_image_dir'] eval_image_dir = config_parameters['eval_image_dir'] train_data_folder = paddle.vision.DatasetFolder(train_image_dir) eval_data_folder = paddle.vision.DatasetFolder(eval_image_dir) if self.mode == 'train': self.data = train_data_folder elif self.mode == 'eval': self.data = eval_data_folder def __getitem__(self, index): """ 步骤三：实现__getitem__方法，定义指定index时如何获取数据，并返回单条数据（训练数据，对应的标签） """ data = np.array(self.data[index][0]).astype('float32') data = self.transforms(data) label = np.array([self.data[index][1]]).astype('int64') return data, label def __len__(self): """ 步骤四：实现__len__方法，返回数据集总数目 """ return len(self.data)
In [5]
from paddle.vision import transforms as T#数据增强transform_train =T.Compose([T.Resize((256,256)), T.RandomHorizontalFlip(5), T.RandomRotation(15), T.Transpose(), T.Normalize(mean=[0, 0, 0], # 像素值归一化 std =[255, 255, 255]), # transforms.ToTensor(), # transpose操作 + (img / 255),并且数据结构变为PaddleTensor T.Normalize(mean=[0.50950350, 0.54632660, 0.57409690],# 减均值 除标准差 std= [0.26059777, 0.26041326, 0.29220656])# 计算过程：output[channel] = (input[channel] - mean[channel]) / std[channel] ])transform_eval =T.Compose([ T.Resize((256,256)), T.Transpose(), T.Normalize(mean=[0, 0, 0], # 像素值归一化 std =[255, 255, 255]), # transforms.ToTensor(), # transpose操作 + (img / 255),并且数据结构变为PaddleTensor T.Normalize(mean=[0.50950350, 0.54632660, 0.57409690],# 减均值 除标准差 std= [0.26059777, 0.26041326, 0.29220656])# 计算过程：output[channel] = (input[channel] - mean[channel]) / std[channel] ])
In [6]
train_dataset = TowerDataset(mode='train',transforms=transform_train)eval_dataset = TowerDataset(mode='eval', transforms=transform_eval )#数据异步加载train_loader = paddle.io.DataLoader(train_dataset, places=paddle.CUDAPlace(0), batch_size=128, shuffle=True, #num_workers=2, #use_shared_memory=True )eval_loader = paddle.io.DataLoader (eval_dataset, places=paddle.CUDAPlace(0), batch_size=128, #num_workers=2, #use_shared_memory=True )
2.3.3 实例化数据集类
根据所使用的数据集需求实例化数据集类，并查看总样本量。
In [7]
print('训练集样本量: {}，验证集样本量: {}'.format(len(train_loader), len(eval_loader)))
训练集样本量: 42，验证集样本量: 11
③ 模型选择和开发
3.1 网络构建
本次我们使用mobilenet_v2网络来完成我们的案例实践。
In [11]
import paddlefrom paddle.vision.models import mobilenet_v2network=paddle.vision.models.mobilenet_v2(pretrained=True,num_classes=9)model=paddle.Model(network)
2021-04-20 04:52:16,152 - INFO - unique_endpoints {''}2021-04-20 04:52:16,153 - INFO - File /home/aistudio/.cache/paddle/hapi/weights/mobilenet_v2_x1.0.pdparams md5 checking...2021-04-20 04:52:16,203 - INFO - Found /home/aistudio/.cache/paddle/hapi/weights/mobilenet_v2_x1.0.pdparams/opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/paddle/fluid/dygraph/layers.py:1303: UserWarning: Skip loading for classifier.1.weight. classifier.1.weight receives a shape [1280, 1000], but the expected shape is [1280, 9]. warnings.warn(("Skip loading for {}. ".format(key) + str(err)))/opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/paddle/fluid/dygraph/layers.py:1303: UserWarning: Skip loading for classifier.1.bias. classifier.1.bias receives a shape [1000], but the expected shape is [9]. warnings.warn(("Skip loading for {}. ".format(key) + str(err)))
④ 模型训练和优化器的选择
In [12]
#优化器选择class SaveBestModel(paddle.callbacks.Callback): def __init__(self, target=0.5, path='work/best_model', verbose=0): self.target = target self.epoch = None self.path = path def on_epoch_end(self, epoch, logs=None): self.epoch = epoch def on_eval_end(self, logs=None): if logs.get('acc') > self.target: self.target = logs.get('acc') self.model.save(self.path) print('best acc is {} at epoch {}'.format(self.target, self.epoch))callback_visualdl = paddle.callbacks.VisualDL(log_dir='work/mushroom')callback_savebestmodel = SaveBestModel(target=0.5, path='work/best_model')callbacks = [callback_visualdl, callback_savebestmodel]base_lr = config_parameters['lr']epochs = config_parameters['epochs']def make_optimizer(parameters=None): momentum = 0.9 learning_rate= paddle.optimizer.lr.CosineAnnealingDecay(learning_rate=base_lr, T_max=epochs, verbose=False) weight_decay=paddle.regularizer.L2Decay(0.01) optimizer = paddle.optimizer.Momentum( learning_rate=learning_rate, momentum=momentum, weight_decay=weight_decay, parameters=parameters) return optimizeroptimizer = make_optimizer(model.parameters())model.prepare(optimizer, paddle.nn.CrossEntropyLoss(), paddle.metric.Accuracy())
In [13]
model.fit(train_loader, eval_loader, epochs=100, batch_size=128, callbacks=callbacks, verbose=1) # 日志展示格式

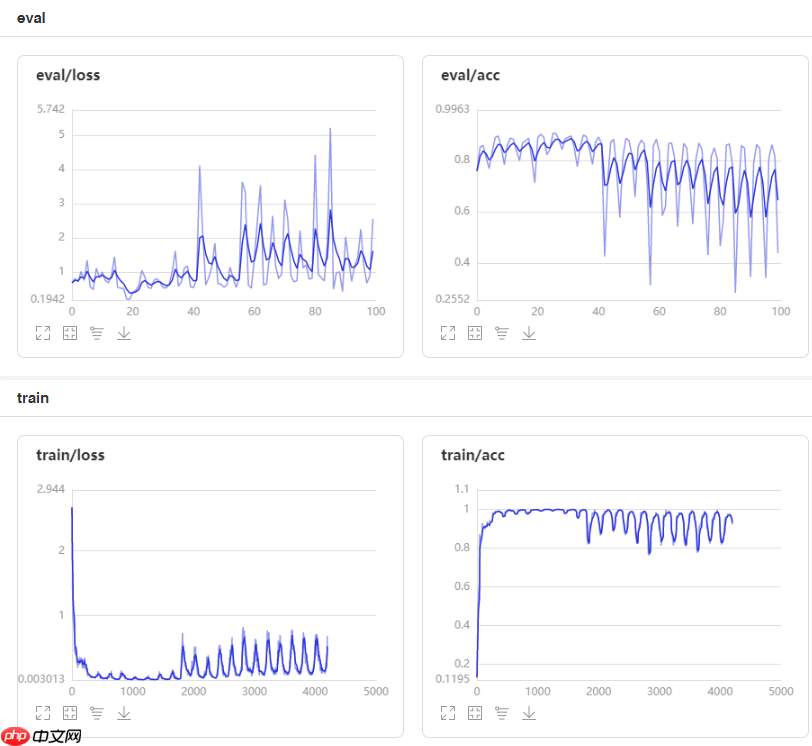

⑤模型训练效果展示
⑥模型存储
将我们训练得到的模型进行保存，以便后续评估和测试使用。
In [14]
model.save(get('model_save_dir'))
以上就是利用Paddle2.1高层API实现9种蘑菇的识别的详细内容，更多请关注创想鸟其它相关文章！
