【TMM 2022】SPGNet：串行和并行组网络

摘要

        神经网络处理单元 (NPU) 专门用于深度神经网络 (DNN) 的加速，对于机器人或边缘计算等延迟敏感领域具有重要意义。然而，最近的研究很少有关注 NPU 网络设计的工作。大多数流行的轻量级结构（例如MobileNet）都是采用深度卷积设计的，理论上计算量较少，但对现有硬件并不友好，并且在NPU上测试的速度并不总是令人满意。即使在相似的 FLOP（乘法累加次数）下，普通卷积运算也总是比深度卷积运算快。在本文中，我们将提出一种名为串行并行组网络（SPGNet）的新颖架构，它可以捕获有区别的多尺度信息，同时保持结构紧凑。对不同的计算机视觉任务进行了广泛的评估，例如图像分类（CIFAR 和 ImageNet）、对象检测（PASCAL VOC 和 MS COCO）和人员重新识别（Market-1501 和 DukeMTMC-ReID）。实验结果表明，我们提出的 SPGNet 可以实现与最先进网络相当的性能，同时在类似 FLOPs 下速度比 MobileNetV2 快 120%，在 NPU 上具有类似精度的情况下比 GhostNet 快 300% 以上。

1. SPGNet

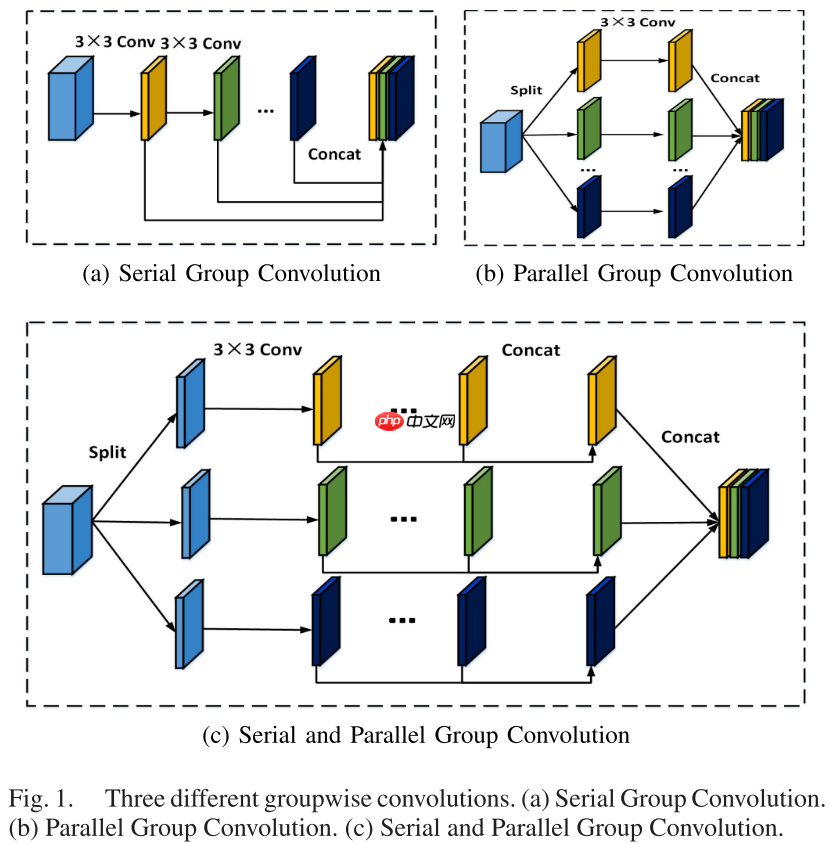

        本文深入研究了分组卷积，并将其分为三种类型：串行组卷积、并行组卷积核串并行组卷积。

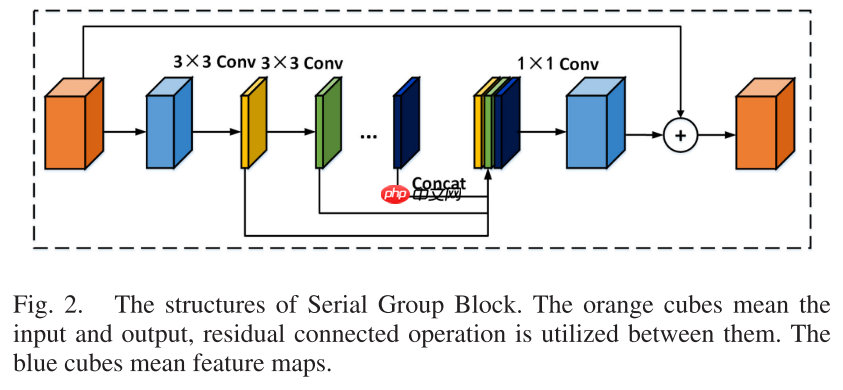

1.1 串行组卷积

        先使用1 * 1卷积将通道缩减为原来的一半，然后使用连续的3 * 3卷积，并将其合并，最后使用1 * 1卷积恢复原来的通道数。

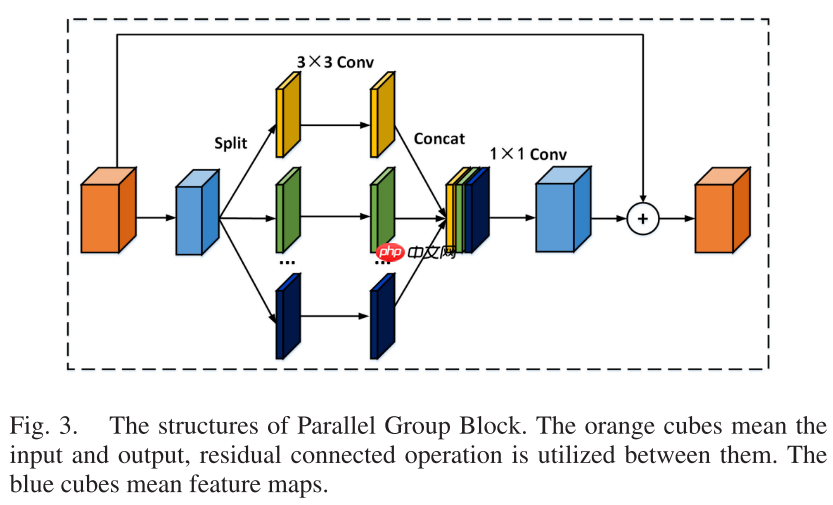

1.2 并行组卷积

        通过1 * 1卷积将通道数缩减到原来的一半，然后将其沿通道分成P组，分别对每组使用3 * 3 卷积，最后将输出合并，并使用1 * 1卷积恢复之前的通道数。

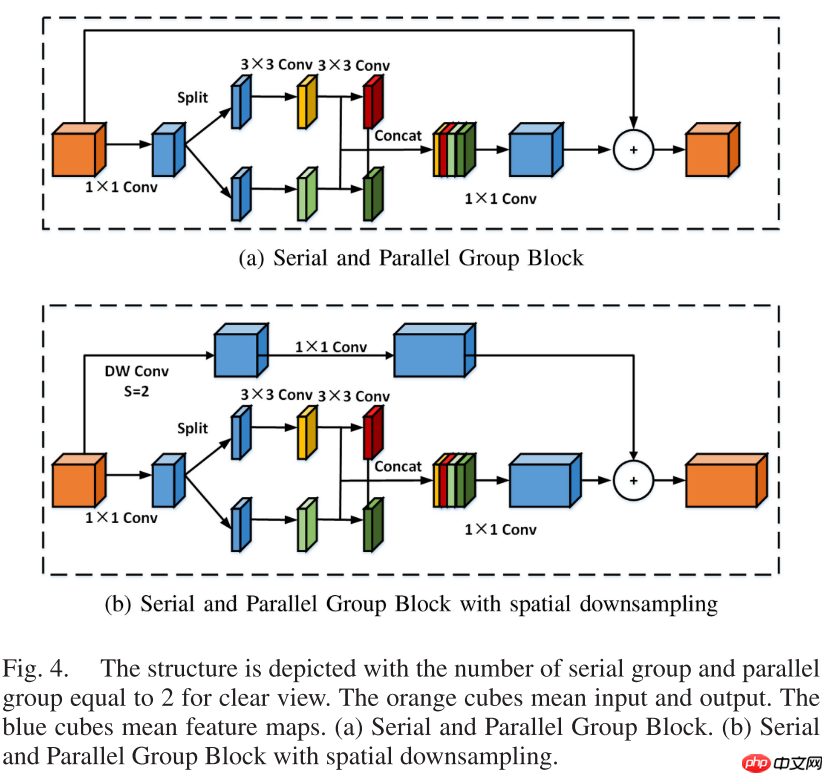

1.3 串并行组卷积

        将串行组卷积与并行组卷积结合起来，先分组，再在每组中使用串行组卷积。

2. 代码复现

2.1 下载并导入所需的库

In [1]

%matplotlib inlineimport paddleimport numpy as npimport matplotlib.pyplot as pltfrom paddle.vision.datasets import Cifar10from paddle.vision.transforms import Transposefrom paddle.io import Dataset, DataLoaderfrom paddle import nnimport paddle.nn.functional as Fimport paddle.vision.transforms as transformsimport osimport matplotlib.pyplot as pltfrom matplotlib.pyplot import figurefrom models import *

2.2 创建数据集

In [2]

train_tfm = transforms.Compose([    transforms.RandomCrop(32, padding=4),    transforms.RandomHorizontalFlip(0.5),    transforms.ToTensor(),    transforms.Normalize(mean=(0.485, 0.456, 0.406), std=(0.229, 0.224, 0.225)),])test_tfm = transforms.Compose([    transforms.Resize((32, 32)),    transforms.ToTensor(),    transforms.Normalize(mean=(0.485, 0.456, 0.406), std=(0.229, 0.224, 0.225)),])

   In [3]

paddle.vision.set_image_backend('cv2')# 使用Cifar10数据集train_dataset = Cifar10(data_file='data/data152754/cifar-10-python.tar.gz', mode='train', transform = train_tfm, )val_dataset = Cifar10(data_file='data/data152754/cifar-10-python.tar.gz', mode='test',transform = test_tfm)print("train_dataset: %d" % len(train_dataset))print("val_dataset: %d" % len(val_dataset))

train_dataset: 50000val_dataset: 10000

       In [4]

batch_size=256

   In [5]

train_loader = DataLoader(train_dataset, batch_size=batch_size, shuffle=True, drop_last=True, num_workers=4)val_loader = DataLoader(val_dataset, batch_size=batch_size, shuffle=False, drop_last=False, num_workers=4)

2.3 模型的创建

2.3.1 标签平滑

In [6]

class LabelSmoothingCrossEntropy(nn.Layer):    def __init__(self, smoothing=0.1):        super().__init__()        self.smoothing = smoothing    def forward(self, pred, target):        confidence = 1. - self.smoothing        log_probs = F.log_softmax(pred, axis=-1)        idx = paddle.stack([paddle.arange(log_probs.shape[0]), target], axis=1)        nll_loss = paddle.gather_nd(-log_probs, index=idx)        smooth_loss = paddle.mean(-log_probs, axis=-1)        loss = confidence * nll_loss + self.smoothing * smooth_loss        return loss.mean()

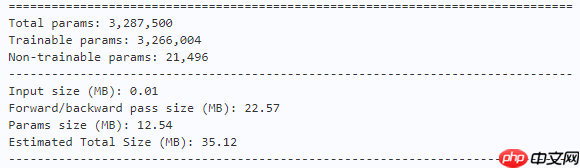

2.3.2 SPGNet

In [ ]

model = SPGNet(num_classes=10)paddle.summary(model, (1, 3, 32, 32))

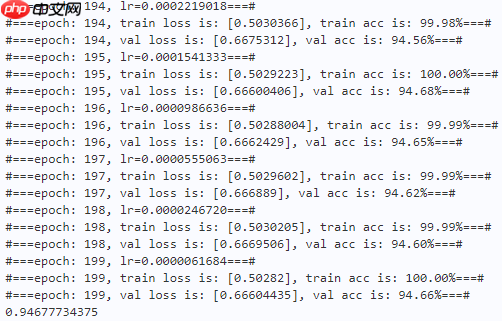

2.4 训练

In [8]

learning_rate = 0.1n_epochs = 200paddle.seed(42)np.random.seed(42)

   In [ ]

work_path = 'work/model'# SPGNet-S2P6model = SPGNet(num_classes=10)criterion = LabelSmoothingCrossEntropy()scheduler = paddle.optimizer.lr.CosineAnnealingDecay(learning_rate=learning_rate, T_max=50000 // batch_size * n_epochs, verbose=False)optimizer = paddle.optimizer.Momentum(parameters=model.parameters(), learning_rate=scheduler, weight_decay=5e-4)gate = 0.0threshold = 0.0best_acc = 0.0val_acc = 0.0loss_record = {'train': {'loss': [], 'iter': []}, 'val': {'loss': [], 'iter': []}}   # for recording lossacc_record = {'train': {'acc': [], 'iter': []}, 'val': {'acc': [], 'iter': []}}      # for recording accuracyloss_iter = 0acc_iter = 0for epoch in range(n_epochs):    # ---------- Training ----------    model.train()    train_num = 0.0    train_loss = 0.0    val_num = 0.0    val_loss = 0.0    accuracy_manager = paddle.metric.Accuracy()    val_accuracy_manager = paddle.metric.Accuracy()    print("#===epoch: {}, lr={:.10f}===#".format(epoch, optimizer.get_lr()))    for batch_id, data in enumerate(train_loader):        x_data, y_data = data        labels = paddle.unsqueeze(y_data, axis=1)        logits = model(x_data)        loss = criterion(logits, y_data)        acc = accuracy_manager.compute(logits, labels)        accuracy_manager.update(acc)        if batch_id % 10 == 0:            loss_record['train']['loss'].append(loss.numpy())            loss_record['train']['iter'].append(loss_iter)            loss_iter += 1        loss.backward()        optimizer.step()        scheduler.step()        optimizer.clear_grad()                train_loss += loss        train_num += len(y_data)    total_train_loss = (train_loss / train_num) * batch_size    train_acc = accuracy_manager.accumulate()    acc_record['train']['acc'].append(train_acc)    acc_record['train']['iter'].append(acc_iter)    acc_iter += 1    # Print the information.    print("#===epoch: {}, train loss is: {}, train acc is: {:2.2f}%===#".format(epoch, total_train_loss.numpy(), train_acc*100))    # ---------- Validation ----------    model.eval()    for batch_id, data in enumerate(val_loader):        x_data, y_data = data        labels = paddle.unsqueeze(y_data, axis=1)        with paddle.no_grad():          logits = model(x_data)        loss = criterion(logits, y_data)        acc = val_accuracy_manager.compute(logits, labels)        val_accuracy_manager.update(acc)        val_loss += loss        val_num += len(y_data)    total_val_loss = (val_loss / val_num) * batch_size    loss_record['val']['loss'].append(total_val_loss.numpy())    loss_record['val']['iter'].append(loss_iter)    val_acc = val_accuracy_manager.accumulate()    acc_record['val']['acc'].append(val_acc)    acc_record['val']['iter'].append(acc_iter)        print("#===epoch: {}, val loss is: {}, val acc is: {:2.2f}%===#".format(epoch, total_val_loss.numpy(), val_acc*100))    # ===================save====================    if val_acc > best_acc:        best_acc = val_acc        paddle.save(model.state_dict(), os.path.join(work_path, 'best_model.pdparams'))        paddle.save(optimizer.state_dict(), os.path.join(work_path, 'best_optimizer.pdopt'))print(best_acc)paddle.save(model.state_dict(), os.path.join(work_path, 'final_model.pdparams'))paddle.save(optimizer.state_dict(), os.path.join(work_path, 'final_optimizer.pdopt'))

2.5 结果分析

In [10]

def plot_learning_curve(record, title='loss', ylabel='CE Loss'):    ''' Plot learning curve of your CNN '''    maxtrain = max(map(float, record['train'][title]))    maxval = max(map(float, record['val'][title]))    ymax = max(maxtrain, maxval) * 1.1    mintrain = min(map(float, record['train'][title]))    minval = min(map(float, record['val'][title]))    ymin = min(mintrain, minval) * 0.9    total_steps = len(record['train'][title])    x_1 = list(map(int, record['train']['iter']))    x_2 = list(map(int, record['val']['iter']))    figure(figsize=(10, 6))    plt.plot(x_1, record['train'][title], c='tab:red', label='train')    plt.plot(x_2, record['val'][title], c='tab:cyan', label='val')    plt.ylim(ymin, ymax)    plt.xlabel('Training steps')    plt.ylabel(ylabel)    plt.title('Learning curve of {}'.format(title))    plt.legend()    plt.show()

   In [11]

plot_learning_curve(loss_record, title='loss', ylabel='CE Loss')

/opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/matplotlib/cbook/__init__.py:2349: DeprecationWarning: Using or importing the ABCs from 'collections' instead of from 'collections.abc' is deprecated, and in 3.8 it will stop working  if isinstance(obj, collections.Iterator):/opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/matplotlib/cbook/__init__.py:2366: DeprecationWarning: Using or importing the ABCs from 'collections' instead of from 'collections.abc' is deprecated, and in 3.8 it will stop working  return list(data) if isinstance(data, collections.MappingView) else data

               In [12]

plot_learning_curve(acc_record, title='acc', ylabel='Accuracy')

               In [13]

import timework_path = 'work/model'model = SPGNet(num_classes=10)model_state_dict = paddle.load(os.path.join(work_path, 'best_model.pdparams'))model.set_state_dict(model_state_dict)model.eval()aa = time.time()for batch_id, data in enumerate(val_loader):    x_data, y_data = data    labels = paddle.unsqueeze(y_data, axis=1)    with paddle.no_grad():        logits = model(x_data)bb = time.time()print("Throughout:{}".format(int(len(val_dataset)//(bb - aa))))

Throughout:3317

       In [14]

def get_cifar10_labels(labels):      """返回CIFAR10数据集的文本标签。"""    text_labels = [        'airplane', 'automobile', 'bird', 'cat', 'deer', 'dog', 'frog',        'horse', 'ship', 'truck']    return [text_labels[int(i)] for i in labels]

   In [15]

def show_images(imgs, num_rows, num_cols, pred=None, gt=None, scale=1.5):      """Plot a list of images."""    figsize = (num_cols * scale, num_rows * scale)    _, axes = plt.subplots(num_rows, num_cols, figsize=figsize)    axes = axes.flatten()    for i, (ax, img) in enumerate(zip(axes, imgs)):        if paddle.is_tensor(img):            ax.imshow(img.numpy())        else:            ax.imshow(img)        ax.axes.get_xaxis().set_visible(False)        ax.axes.get_yaxis().set_visible(False)        if pred or gt:            ax.set_title("pt: " + pred[i] + "ngt: " + gt[i])    return axes

   In [16]

work_path = 'work/model'X, y = next(iter(DataLoader(val_dataset, batch_size=18)))model = SPGNet(num_classes=10)model_state_dict = paddle.load(os.path.join(work_path, 'best_model.pdparams'))model.set_state_dict(model_state_dict)model.eval()logits = model(X)y_pred = paddle.argmax(logits, -1)X = paddle.transpose(X, [0, 2, 3, 1])axes = show_images(X.reshape((18, 32, 32, 3)), 1, 18, pred=get_cifar10_labels(y_pred), gt=get_cifar10_labels(y))plt.show()

Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).

总结

        本文提出了一种基于串行和并行组块的新型卷积神经网络—— SPGNet。它享有多尺度信息和分组卷积的优点，轻量且准确。
