【PaddleHub模型贡献】一行代码实现水表的数字表盘分割

本文介绍将水表数字表盘分割模型贡献到PaddleHub的方法。先安装必要库，复现模型：准备数据集，配置GPU，定义图像预处理流程和数据集，用DeepLabv3p训练模型并导出。接着转换模型为PaddleHub模型，补充代码实现旋转剪裁等功能，最后测试安装与调用，实现水表数字表盘分割。

☞☞☞AI 智能聊天, 问答助手, AI 智能搜索, 免费无限量使用 DeepSeek R1 模型☜☜☜

【PaddleHub模型贡献】一行代码实现水表的数字表盘分割

一、安装必要的库

In [3]

!pip install paddlex -i https://mirror.baidu.com/pypi/simple!pip install --upgrade paddlepaddle-gpu -i https://pypi.tuna.tsinghua.edu.cn/simple!pip install --upgrade paddlehub==2.0.1 -i https://pypi.tuna.tsinghua.edu.cn/simple

二、模型训练

项目作者使用PaddleX做的语义分割，因为作者没有直接公开训练好的模型，所以这里我们先按照作者的思路复现模型。

1.准备表盘数据集

In [ ]

!unzip -oq /home/aistudio/data/data73852/water.zip

2. 模型训练

2.1 配置GPU

In [ ]

# 设置使用0号GPU卡（如无GPU，执行此代码后仍然会使用CPU训练模型）import matplotlibmatplotlib.use('Agg') import osos.environ['CUDA_VISIBLE_DEVICES'] = '0'import paddlex as pdx

2.2 定义图像预处理流程transforms

定义数据处理流程，其中训练和测试需分别定义，训练过程包括了部分测试过程中不需要的数据增强操作，如在本示例中，训练过程使用了RandomHorizontalFlip和RandomPaddingCrop两种数据增强方式，更多图像预处理流程transforms的使用可参见paddlex.seg.transforms。

In [ ]

from paddlex.seg import transformstrain_transforms = transforms.Compose([    transforms.RandomHorizontalFlip(),    transforms.Resize(target_size=512),    transforms.RandomPaddingCrop(crop_size=500),    transforms.Normalize()])eval_transforms = transforms.Compose([    transforms.Resize(512),    transforms.Normalize()])

2.3 定义数据集Dataset

实例分割使用SegDataset格式的数据集，因此采用pdx.datasets.SegDataset来加载数据集，该接口的介绍可参见文档pdx.datasets.SegDataset。

In [ ]

train_dataset = pdx.datasets.SegDataset(    data_dir='water',    file_list='water/train.txt',    label_list='water/class_names.txt',    transforms=train_transforms,    shuffle=True)eval_dataset = pdx.datasets.SegDataset(    data_dir='water',    file_list='water/val.txt',    label_list='water/class_names.txt',    transforms=eval_transforms)

2021-03-11 14:54:48 [INFO]150 samples in file water/train.txt2021-03-11 14:54:48 [INFO]11 samples in file water/val.txt

2.4 模型开始训练

使用本数据集在P40上训练，如有GPU，模型的训练过程预估为13分钟左右；如无GPU，则预估为5小时左右。更多训练模型的参数可参见文档paddlex.seg.DeepLabv3p。模型训练过程每间隔save_interval_epochs轮会保存一次模型在save_dir目录下，同时在保存的过程中也会在验证数据集上计算相关指标，具体相关日志参见文档。

In [ ]

num_classes = len(train_dataset.labels)model = pdx.seg.DeepLabv3p(num_classes=num_classes)model.train(    num_epochs=40,    train_dataset=train_dataset,    train_batch_size=4,    eval_dataset=eval_dataset,    learning_rate=0.01,    save_interval_epochs=1,    # pretrain_weights='output/deeplab4/best_model',    save_dir='output/water')

最后一轮的输出如下所示：

2021-03-11 15:02:56 [INFO][TRAIN] Epoch=40/40, Step=1/37, loss=0.010831, lr=0.000362, time_each_step=0.18s, eta=0:0:102021-03-11 15:02:56 [INFO][TRAIN] Epoch=40/40, Step=3/37, loss=0.010944, lr=0.000344, time_each_step=0.2s, eta=0:0:102021-03-11 15:02:57 [INFO][TRAIN] Epoch=40/40, Step=5/37, loss=0.009099, lr=0.000326, time_each_step=0.22s, eta=0:0:102021-03-11 15:02:57 [INFO][TRAIN] Epoch=40/40, Step=7/37, loss=0.011186, lr=0.000308, time_each_step=0.24s, eta=0:0:102021-03-11 15:02:57 [INFO][TRAIN] Epoch=40/40, Step=9/37, loss=0.008269, lr=0.00029, time_each_step=0.25s, eta=0:0:102021-03-11 15:02:58 [INFO][TRAIN] Epoch=40/40, Step=11/37, loss=0.011792, lr=0.000272, time_each_step=0.25s, eta=0:0:102021-03-11 15:02:58 [INFO][TRAIN] Epoch=40/40, Step=13/37, loss=0.010976, lr=0.000254, time_each_step=0.26s, eta=0:0:92021-03-11 15:02:58 [INFO][TRAIN] Epoch=40/40, Step=15/37, loss=0.01399, lr=0.000236, time_each_step=0.26s, eta=0:0:92021-03-11 15:02:58 [INFO][TRAIN] Epoch=40/40, Step=17/37, loss=0.009998, lr=0.000217, time_each_step=0.26s, eta=0:0:82021-03-11 15:02:58 [INFO][TRAIN] Epoch=40/40, Step=19/37, loss=0.012266, lr=0.000198, time_each_step=0.26s, eta=0:0:82021-03-11 15:02:58 [INFO][TRAIN] Epoch=40/40, Step=21/37, loss=0.011713, lr=0.00018, time_each_step=0.13s, eta=0:0:52021-03-11 15:02:58 [INFO][TRAIN] Epoch=40/40, Step=23/37, loss=0.010291, lr=0.00016, time_each_step=0.11s, eta=0:0:52021-03-11 15:02:58 [INFO][TRAIN] Epoch=40/40, Step=25/37, loss=0.010211, lr=0.000141, time_each_step=0.09s, eta=0:0:42021-03-11 15:02:59 [INFO][TRAIN] Epoch=40/40, Step=27/37, loss=0.02097, lr=0.000121, time_each_step=0.08s, eta=0:0:42021-03-11 15:02:59 [INFO][TRAIN] Epoch=40/40, Step=29/37, loss=0.008198, lr=0.000101, time_each_step=0.07s, eta=0:0:32021-03-11 15:02:59 [INFO][TRAIN] Epoch=40/40, Step=31/37, loss=0.010346, lr=8.1e-05, time_each_step=0.06s, eta=0:0:32021-03-11 15:02:59 [INFO][TRAIN] Epoch=40/40, Step=33/37, loss=0.009331, lr=6e-05, time_each_step=0.06s, eta=0:0:32021-03-11 15:02:59 [INFO][TRAIN] Epoch=40/40, Step=35/37, loss=0.01259, lr=3.8e-05, time_each_step=0.06s, eta=0:0:32021-03-11 15:02:59 [INFO][TRAIN] Epoch=40/40, Step=37/37, loss=0.013072, lr=1.4e-05, time_each_step=0.06s, eta=0:0:32021-03-11 15:02:59 [INFO][TRAIN] Epoch 40 finished, loss=0.011522, lr=0.000195 .2021-03-11 15:02:59 [INFO]Start to evaluating(total_samples=11, total_steps=3)...100%|██████████| 3/3 [00:02<00:00,  1.00it/s]2021-03-11 15:03:02 [INFO][EVAL] Finished, Epoch=40, miou=0.814756, category_iou=[0.99168644 0.63782582], oacc=0.991806, category_acc=[0.99431391 0.84710874], kappa=0.774722, category_F1-score=[0.99582587 0.77886893] .2021-03-11 15:03:03 [INFO]Model saved in output/water/epoch_40.2021-03-11 15:03:03 [INFO]Current evaluated best model in eval_dataset is epoch_35, miou=0.8284633456567256

3.模型导出

模型训练时会自动保存模型参数，我们需要把训练模型导出成可预测模型。

In [ ]

!paddlex --export_inference --model_dir=output/water/best_model --save_dir=./inference_model

/opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/setuptools/depends.py:2: DeprecationWarning: the imp module is deprecated in favour of importlib; see the module's documentation for alternative uses  import impW0311 15:49:28.613981   782 device_context.cc:362] Please NOTE: device: 0, GPU Compute Capability: 7.0, Driver API Version: 11.0, Runtime API Version: 10.1W0311 15:49:28.618839   782 device_context.cc:372] device: 0, cuDNN Version: 7.6.2021-03-11 15:49:32 [INFO]Model[DeepLabv3p] loaded.2021-03-11 15:49:32 [INFO]Model for inference deploy saved in ./inference_model.

三、封装Module

下面正式开始模型转换！

1.模型转换

PaddleX模型可以快速转换成PaddleHub模型，只需要用下面这一句命令即可：

In [ ]

!hub convert --model_dir inference_model               --module_name WatermeterSegmentation               --module_version 1.0.0               --output_dir outputs

转换成功后的模型保存在outputs文件夹下，我们解压一下：

In [ ]

!gzip -dfq /home/aistudio/outputs/WatermeterSegmentation.tar.gz!tar -xf /home/aistudio/outputs/WatermeterSegmentation.tar

2.补充代码

刚刚转换的模型其实已经是PaddleHub的Module了，但是原项目中，作者做了一些图片的裁剪等操作，把数字提取出来了，因此，我们需要把这部分代码补充进去。

完整的module.py文件内容如下：

from __future__ import absolute_importfrom __future__ import divisionimport osimport cv2import argparseimport base64import paddlex as pdxfrom math import *import time, math, reimport numpy as npimport paddlehub as hubfrom paddlehub.module.module import moduleinfo, runnable, servingdef base64_to_cv2(b64str):    data = base64.b64decode(b64str.encode('utf8'))    data = np.fromstring(data, np.uint8)    data = cv2.imdecode(data, cv2.IMREAD_COLOR)    return datadef cv2_to_base64(image):    # return base64.b64encode(image)    data = cv2.imencode('.jpg', image)[1]    return base64.b64encode(data.tostring()).decode('utf8')def read_images(paths):    images = []    for path in paths:        images.append(cv2.imread(path))    return images'''旋转图像并剪裁'''def rotate(        img,  # 图片        pt1, pt2, pt3, pt4,        imgOutSrc):    # print(pt1,pt2,pt3,pt4)    withRect = math.sqrt((pt4[0] - pt1[0]) ** 2 + (pt4[1] - pt1[1]) ** 2)  # 矩形框的宽度    heightRect = math.sqrt((pt1[0] - pt2[0]) ** 2 + (pt1[1] - pt2[1]) **2)    # print("矩形的宽度",withRect, "矩形的高度", heightRect)    angle = acos((pt4[0] - pt1[0]) / withRect) * (180 / math.pi)  # 矩形框旋转角度    # print("矩形框旋转角度", angle)    if withRect > heightRect:        if pt4[1]>pt1[1]:            # print("顺时针旋转")            pass        else:            # print("逆时针旋转")            angle=-angle    else:        # print("逆时针旋转")        angle=90 - angle    height = img.shape[0]  # 原始图像高度    width = img.shape[1]   # 原始图像宽度    rotateMat = cv2.getRotationMatrix2D((width / 2, height / 2), angle, 1)  # 按angle角度旋转图像    heightNew = int(width * fabs(sin(radians(angle))) + height * fabs(cos(radians(angle))))    widthNew = int(height * fabs(sin(radians(angle))) + width * fabs(cos(radians(angle))))    rotateMat[0, 2] += (widthNew - width) / 2    rotateMat[1, 2] += (heightNew - height) / 2    imgRotation = cv2.warpAffine(img, rotateMat, (widthNew, heightNew), borderValue=(255, 255, 255))    # cv2.imwrite("imgRotation.jpg", imgRotation)     # 旋转后图像的四点坐标    [[pt1[0]], [pt1[1]]] = np.dot(rotateMat, np.array([[pt1[0]], [pt1[1]], [1]]))    [[pt3[0]], [pt3[1]]] = np.dot(rotateMat, np.array([[pt3[0]], [pt3[1]], [1]]))    [[pt2[0]], [pt2[1]]] = np.dot(rotateMat, np.array([[pt2[0]], [pt2[1]], [1]]))    [[pt4[0]], [pt4[1]]] = np.dot(rotateMat, np.array([[pt4[0]], [pt4[1]], [1]]))    # 处理反转的情况    if pt2[1]>pt4[1]:        pt2[1],pt4[1]=pt4[1],pt2[1]    if pt1[0]>pt3[0]:        pt1[0],pt3[0]=pt3[0],pt1[0]    imgOut = imgRotation[int(pt2[1]):int(pt4[1]), int(pt1[0]):int(pt3[0])]    cv2.imwrite(imgOutSrc, imgOut) # 裁减得到的旋转矩形框@moduleinfo(    name='WatermeterSegmentation',    type='CV/semantic_segmentatio',    author='郑博培、彭兆帅',    author_email='2733821739@qq.com',    summary='Digital dial segmentation of water meter',    version='1.0.0')class MODULE(hub.Module):    def _initialize(self, **kwargs):        self.default_pretrained_model_path = os.path.join(            self.directory, 'assets')        self.model = pdx.deploy.Predictor(self.default_pretrained_model_path,                                          **kwargs)    def predict(self,                images=None,                paths=None,                data=None,                batch_size=1,                use_gpu=False,                **kwargs):        all_data = images if images is not None else read_images(paths)        total_num = len(all_data)        loop_num = int(np.ceil(total_num / batch_size))        res = []        for iter_id in range(loop_num):            batch_data = list()            handle_id = iter_id * batch_size            for image_id in range(batch_size):                try:                    batch_data.append(all_data[handle_id + image_id])                except IndexError:                    break            out = self.model.batch_predict(batch_data, **kwargs)            res.extend(out)        return res    def cutPic(self, picUrl):        # seg = hub.Module(name='WatermeterSegmentation')        image_name = picUrl        im = cv2.imread(image_name)        result = self.predict(images=[im])        # 将多边形polygon转矩形        contours, hier = cv2.findContours(result[0]['label_map'], cv2.RETR_EXTERNAL, cv2.CHAIN_APPROX_SIMPLE)         print(type(contours[0]))        n = 0        m = 0        for index,contour in enumerate(contours):            if len(contour) > n:                n = len(contour)                m = index        image = cv2.imread(image_name)        # 获取最小的矩形        rect = cv2.minAreaRect(contours[m])        box = np.int0(cv2.boxPoints(rect))        # 获取到矩形的四个点        tmp = cv2.drawContours(image, [box], 0, (0, 0, 255), 3)        imgOutSrc = 'result.jpg'        rotate(image, box[0], box[1], box[2], box[3], imgOutSrc)        res = []        res.append(imgOutSrc)        return res    @serving    def serving_method(self, images, **kwargs):        """        Run as a service.        """        images_decode = [base64_to_cv2(image) for image in images]        results = self.predict(images_decode, **kwargs)        res = []        for result in results:            if isinstance(result, dict):                # result_new = dict()                for key, value in result.items():                    if isinstance(value, np.ndarray):                        result[key] = cv2_to_base64(value)                    elif isinstance(value, np.generic):                        result[key] = np.asscalar(value)            elif isinstance(result, list):                for index in range(len(result)):                    for key, value in result[index].items():                        if isinstance(value, np.ndarray):                            result[index][key] = cv2_to_base64(value)                        elif isinstance(value, np.generic):                            result[index][key] = np.asscalar(value)            else:                raise RuntimeError('The result cannot be used in serving.')            res.append(result)        return res    @runnable    def run_cmd(self, argvs):        """        Run as a command.        """        self.parser = argparse.ArgumentParser(            description="Run the {} module.".format(self.name),            prog='hub run {}'.format(self.name),            usage='%(prog)s',            add_help=True)        self.arg_input_group = self.parser.add_argument_group(            title="Input options", description="Input data. Required")        self.arg_config_group = self.parser.add_argument_group(            title="Config options",            description=            "Run configuration for controlling module behavior, not required.")        self.add_module_config_arg()        self.add_module_input_arg()        args = self.parser.parse_args(argvs)        results = self.predict(            paths=[args.input_path],            use_gpu=args.use_gpu)        return results    def add_module_config_arg(self):        """        Add the command config options.        """        self.arg_config_group.add_argument(            '--use_gpu',            type=bool,            default=False,            help="whether use GPU or not")    def add_module_input_arg(self):        """        Add the command input options.        """        self.arg_input_group.add_argument(            '--input_path', type=str, help="path to image.")if __name__ == '__main__':    module = MODULE(directory='./new_model')    images = [cv2.imread('./cat.jpg'), cv2.imread('./cat.jpg'), cv2.imread('./cat.jpg')]    res = module.predict(images=images)

3.模型测试

首先安装我们刚刚写好的Module：

In [ ]

!hub install WatermeterSegmentation

/opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/setuptools/depends.py:2: DeprecationWarning: the imp module is deprecated in favour of importlib; see the module's documentation for alternative uses  import imp/opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/matplotlib/__init__.py:107: DeprecationWarning: Using or importing the ABCs from 'collections' instead of from 'collections.abc' is deprecated, and in 3.8 it will stop working  from collections import MutableMapping/opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/matplotlib/rcsetup.py:20: DeprecationWarning: Using or importing the ABCs from 'collections' instead of from 'collections.abc' is deprecated, and in 3.8 it will stop working  from collections import Iterable, Mapping/opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/matplotlib/colors.py:53: DeprecationWarning: Using or importing the ABCs from 'collections' instead of from 'collections.abc' is deprecated, and in 3.8 it will stop working  from collections import Sized[2021-03-11 16:42:50,225] [    INFO] - Successfully uninstalled WatermeterSegmentation[2021-03-11 16:42:50,441] [    INFO] - Successfully installed WatermeterSegmentation-1.0.0

模型调用：

In [4]

import cv2import paddlehub as hubseg = hub.Module(name='WatermeterSegmentation')res = seg.cutPic(picUrl="water/images/val/20200521105032.png")

[2021-03-11 17:13:36,113] [ WARNING] - The _initialize method in HubModule will soon be deprecated, you can use the __init__() to handle the initialization of the object

预测结果如下。

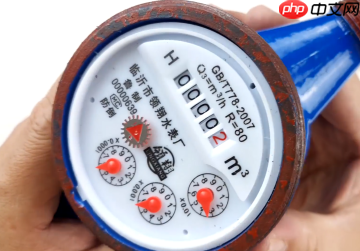

输入图片：

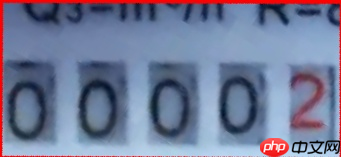

最终将截取的图片显示效果如下：

以上就是【PaddleHub模型贡献】一行代码实现水表的数字表盘分割的详细内容，更多请关注创想鸟其它相关文章！
